HC-B-GB-M32-PLRBK
-
Cable gland
1414662
Set consisting of: EVO plastic adapter 1414245 and plastic screw connection with bending armor rod 1415181, M32
Product details
| Product type | Cable screw gland |
| No. of conductors | 1 |
| Type of the screw connection | M32 |
| Type | with bend protection sleeve |
| Shielded | no |
| Execution of the strain relief | A |

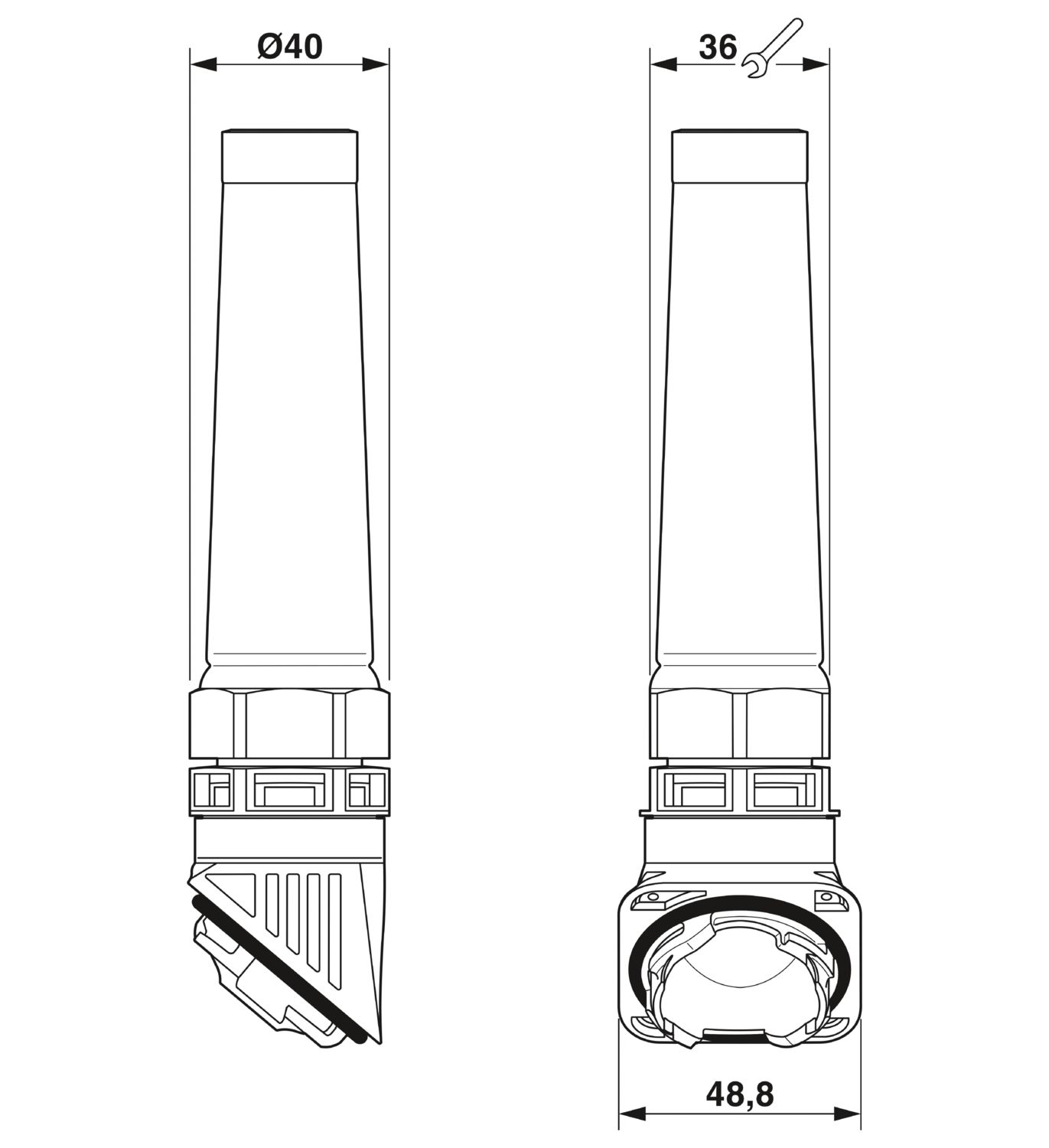

| Dimensional drawing |
|
| Wrench size, union nut | 36 mm |
| Wrench size, support | 36 mm |
| Thread pitch | 1.5 mm |
| Color | black (RAL 9005) |
| Seal material | EPDM |
| Seal material O-ring | NBR |
| Housing material | PA |
| Material for screw connection | PA |
| External cable diameter Cable 1 | 13 mm ... 21 mm |
| Ambient conditions | |
| Degree of protection | IP66 |
| Ambient temperature (operation) | -40 °C ... 100 °C |
