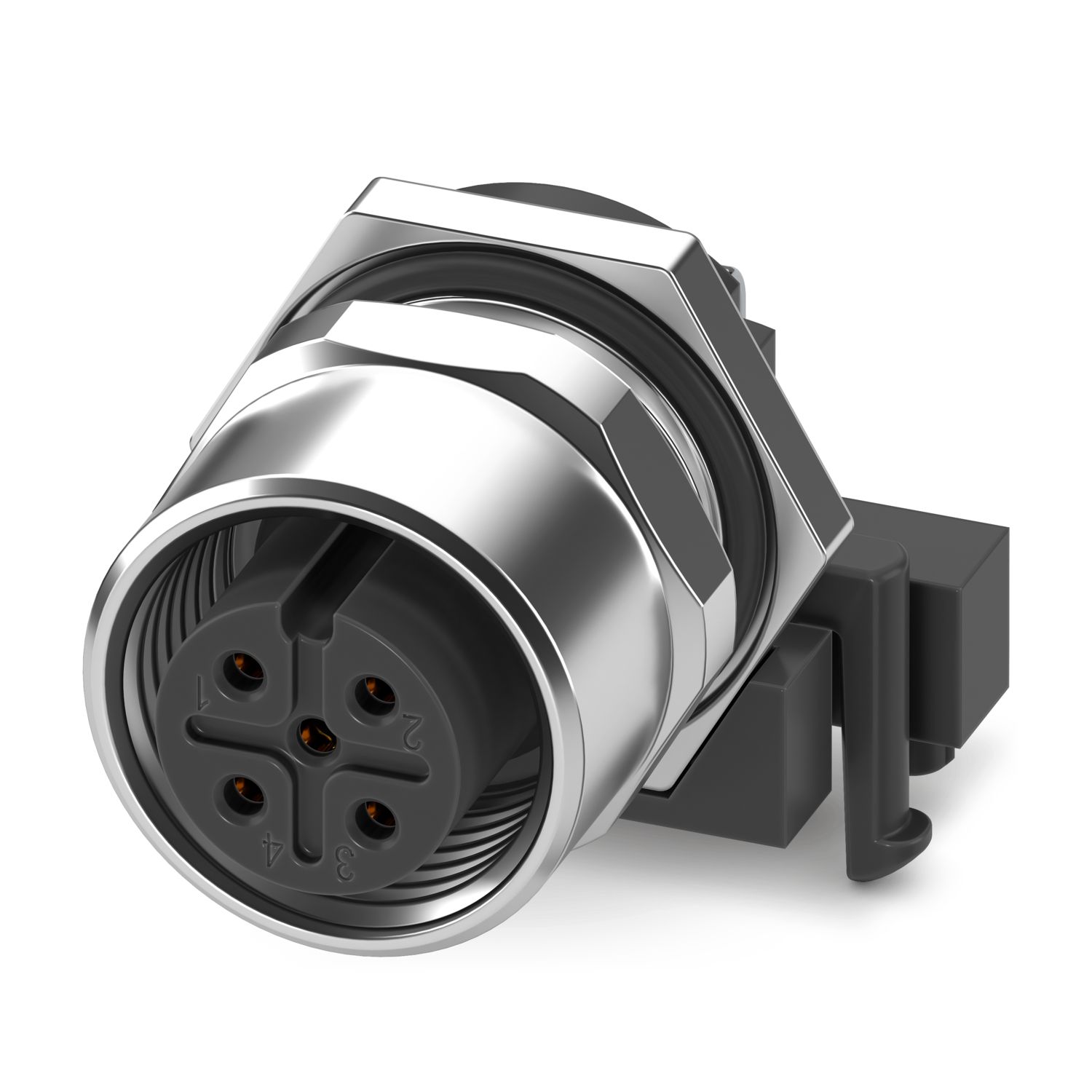

SACC-DSIV-M12FS-5CON-L90 SH ST X - Device connector rear mounting

1396607

Device connector rear mounting, 5-position, Socket, angled, M12, A-coding, Wave soldering

Product details

Mounting type	Rear mounting (M12 x 1, with locking nut)

Product type	Circular connectors (device side)
Number of positions	5
Shielded	yes
Coding	A
Thread type	M12
Insulation characteristics
Overvoltage category	II
Degree of pollution	3

Flammability rating according to UL 94	V-0
Seal material	FKM
Contact material	Copper alloy
Contact surface material	Ni/Au
Contact carrier material	PA 10T
Material for screw connection	Zinc alloy

Rated surge voltage	1.5 kV
Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	60 V
Nominal current I_N	4 A

Conductor connection
Connection method	Wave soldering
Contact connection type	Socket

Mechanical data
Insertion/withdrawal cycles	> 100

Connection 1
Head design	Socket
Head cable outlet	angled
Head thread type	M12
Coding	A

Ambient conditions
Degree of protection	IP67
Ambient temperature (operation)	-25 °C ... 85 °C
UL Type Rating	Type 4 (indoor use only)

Standard designation	M12 circular connector
Standards/specifications	according to IEC 61076-2-101

Commercial data

Item number	1396607
Packing unit	10 pc
Minimum order quantity	10 pc
Sales key	ABQCAD
Product key	ABQEHA
GTIN	4063151781125
Weight per piece (including packing)	13,88 g
Weight per piece (excluding packing)	13,69 g
Customs tariff number	85366990
Country of origin	CN

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
keine
	60 V	4 A	22

Environmental product compliance

Compatible products

Accessories

Your advantages

Standard pin assignments and codings for signal and data transmission with a uniform design-in design

Easy PCB mounting: two-piece connectors for wave soldering

Secure assembly: locking clips for fixing onto the PCB

Sustainable and future-proof: lead-free in accordance with RoHS II without Exemption 6c

Worldwide availability through global distribution channels

ECLASS-13.0	27440110
ECLASS-15.0	27440110

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
