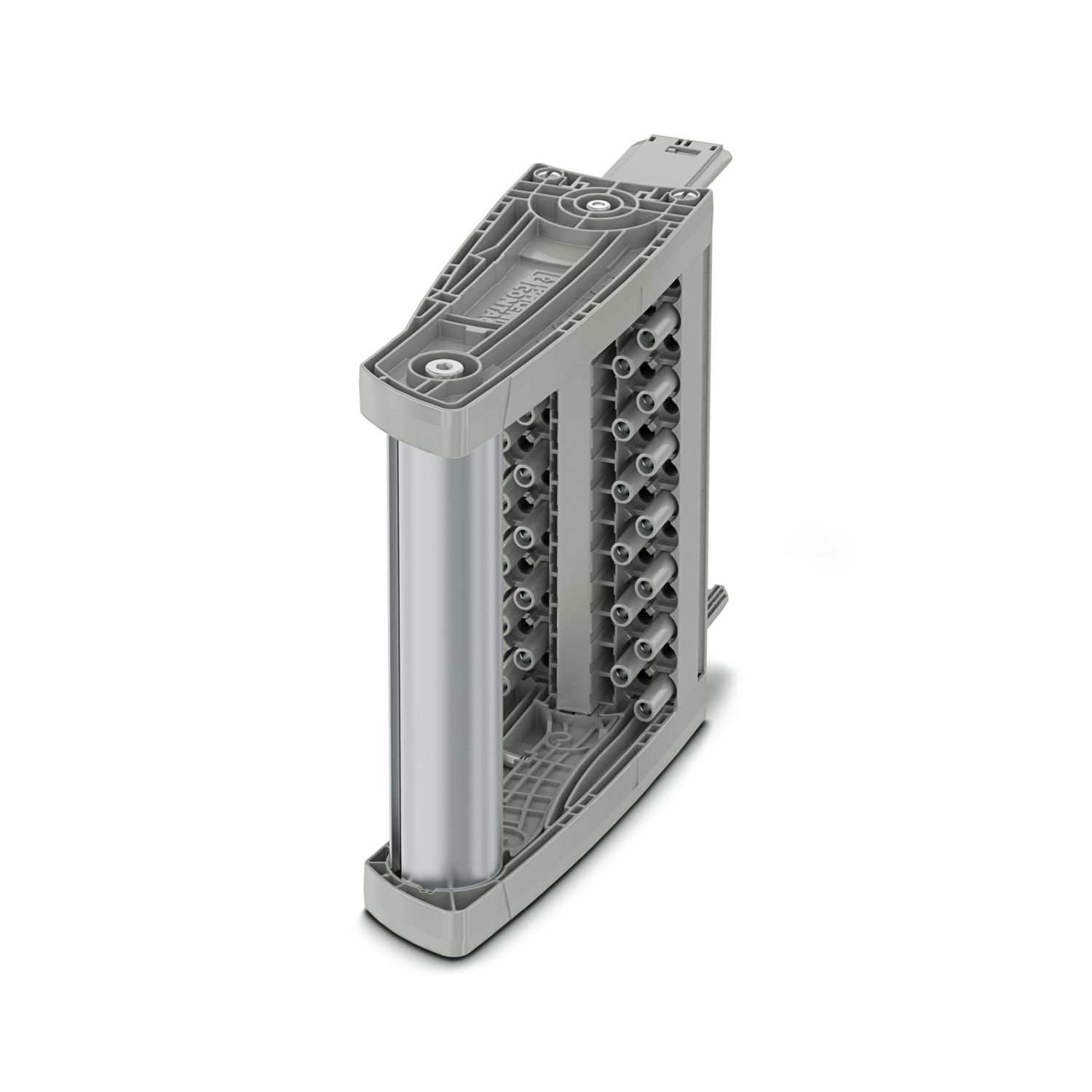

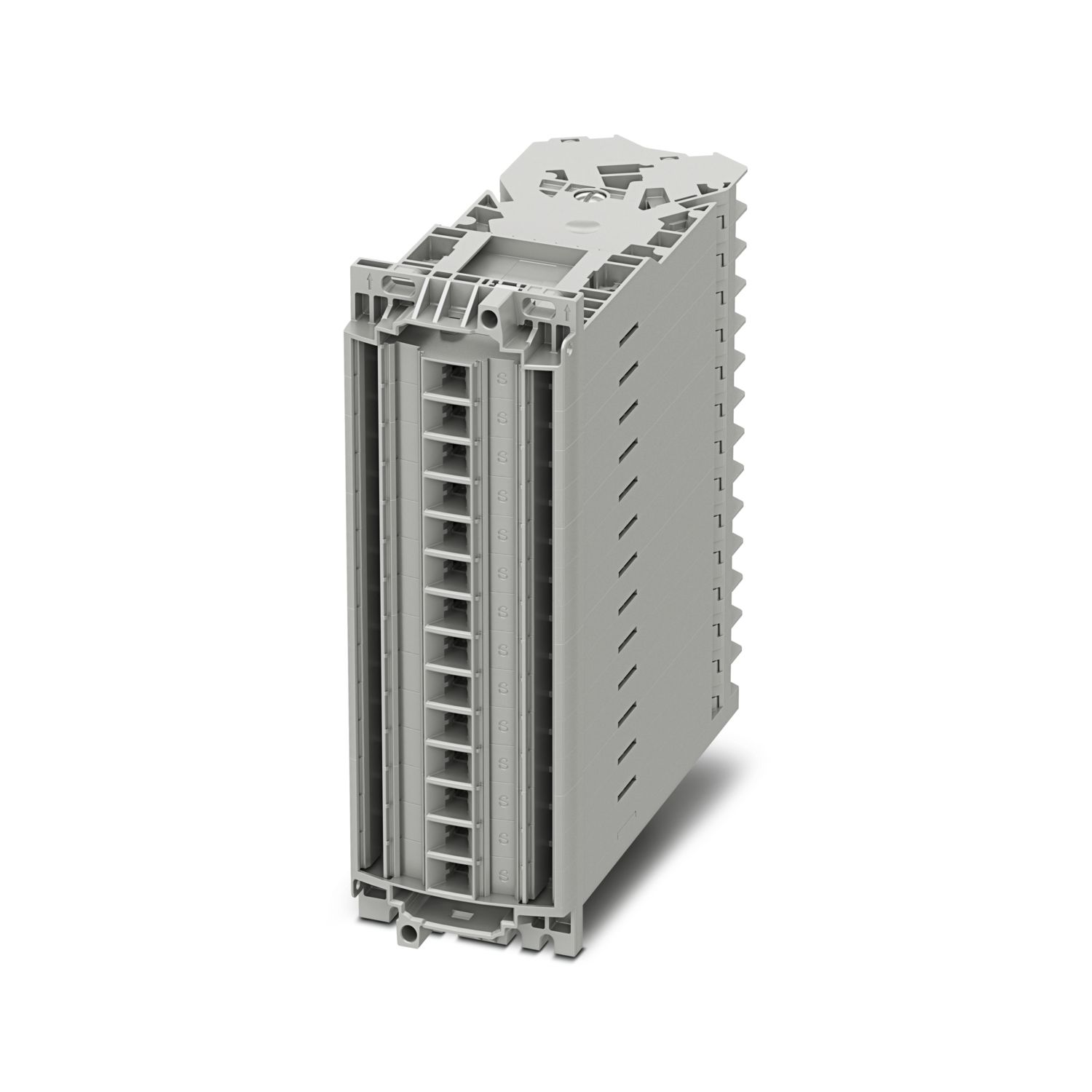

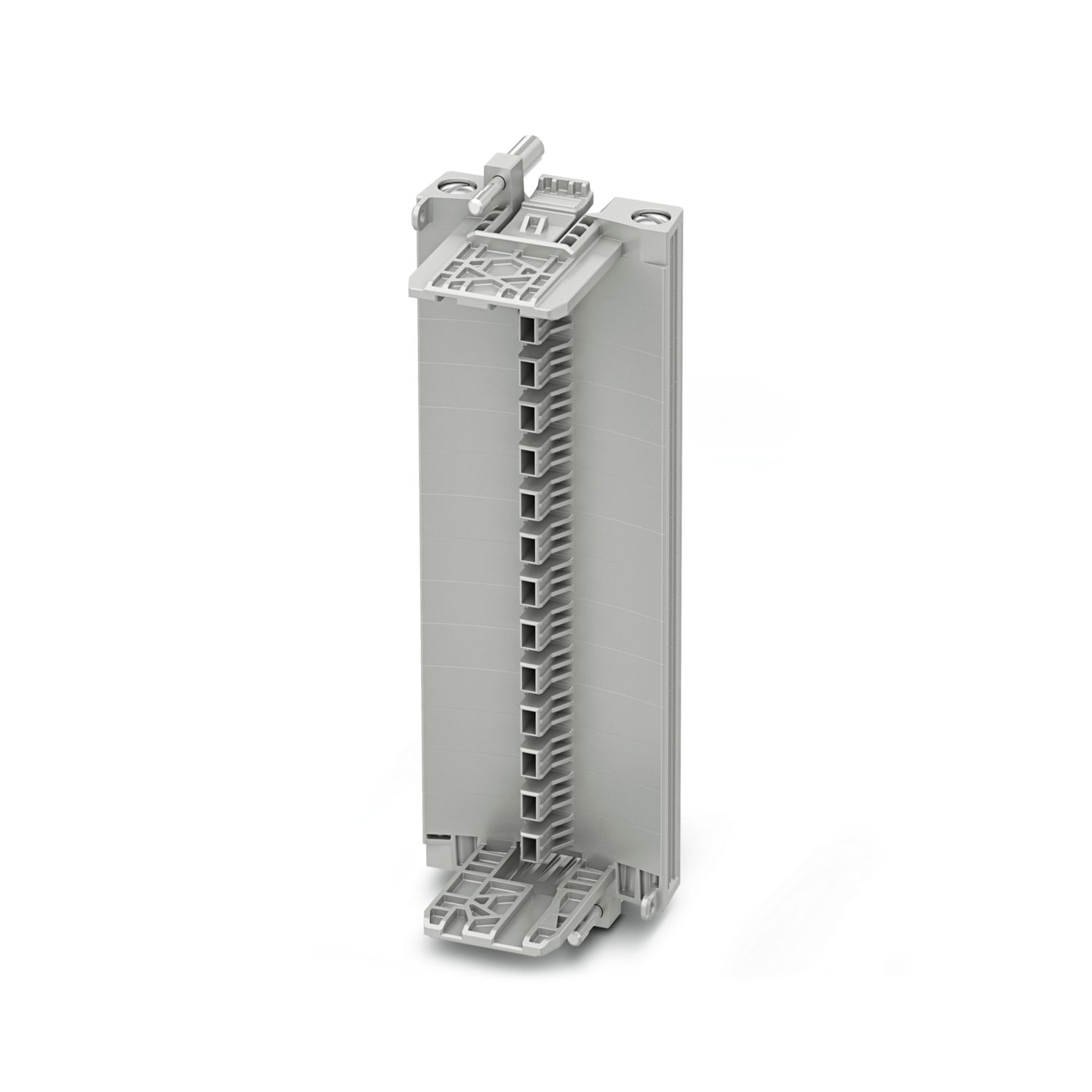

BTFE 6-3/24 - Test terminal strip - 1029256

Product details

Technical data

Product properties

Product type	Test terminal strip
Number of positions	24
Insulation characteristics
Overvoltage category	III

Electrical properties

Rated surge voltage	4 kV
Maximum power dissipation for nominal condition	1.02 W
Test surge voltage	5 kV

Connection data

Nominal cross section	4 mm²
1 level
Tightening torque	1 ... 1.3 Nm
Internal cylindrical gage	A5
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section flexible	0.5 mm² ... 6 mm²
Conductor cross section, flexible [AWG]	24 ... 10 (converted acc. to IEC)
Nominal current	24 A
Maximum load current	24 A
Nominal voltage	400 V
Cable lug connection DIN 46237:1970-07
Connection in acc. with standard	DIN 46237:1970-07
Cross section	0.5 mm² ... 2.5 mm²
Cross section range AWG	(converted acc. to IEC)
Hole diameter	3.7 mm
Width	6.8 mm
Bolt diameter	3.5 mm
Identification color of ring cable lugs : red	1 mm²
Identification color of ring cable lugs : blue	2.5 mm²
Cross section	4 mm² ... 6 mm²
Additional text	Type RS PRO Order No. 267-3919, vertical crimping
Cross section range AWG	(converted acc. to IEC)
Hole diameter	3.7 mm
Width	7.2 mm
Bolt diameter	3.5 mm

Material specifications

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA

Mechanical properties

Mechanical data
Open side panel	No

Standards and regulations

Connection in acc. with standard	IEC 60947-7-1

Mounting

Mounting type	Panel mounting

Commercial data

Item number	1029256
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	02
Product key	BE6114
GTIN	4055626531120
Weight per piece (including packing)	1,122.5 g
Weight per piece (excluding packing)	1,122.5 g
Customs tariff number	85369010
Country of origin	PL

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG
Use group B
	300 V	30 A	20 - 10
Use group C
	300 V	30 A	20 - 10

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG
Use group B
	300 V	30 A	20 - 10
Use group C
	300 V	30 A	20 - 10
Use group F
	400 V	30 A	20 - 10
Use group D
	600 V	5 A	20 - 10

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG
Use group B
	300 V	30 A	20 - 10
Use group C
	300 V	30 A	20 - 10
Use group F
	400 V	30 A	20 - 10
Use group D
	600 V	5 A	20 - 10

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	66a68107-2a17-4866-bde5-054ea78451c5
