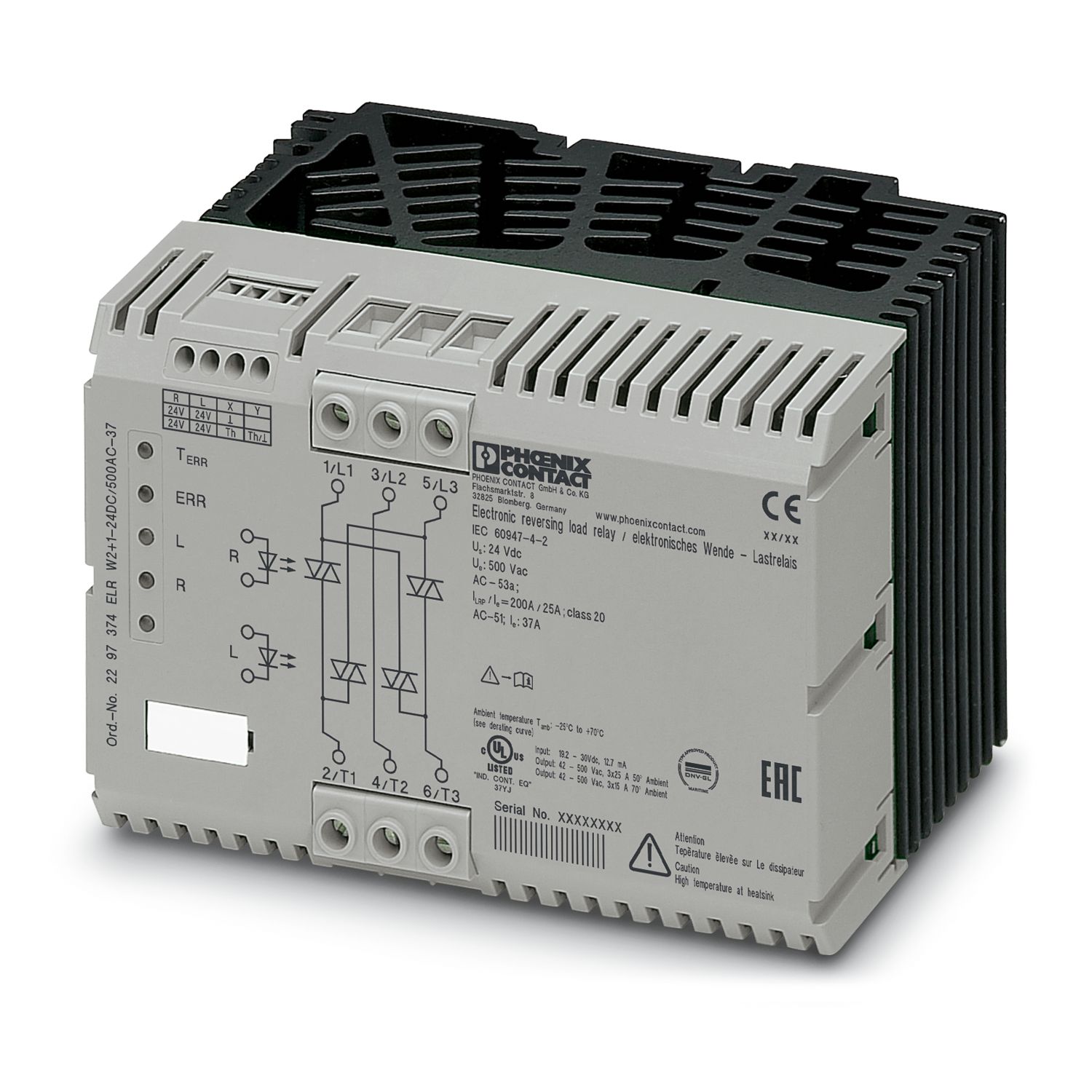

ELR W2+1- 24DC/500AC-37 - Solid-state reversing contactor

2297374

Three-phase solid-state reversing contactor with 24 V DC input, 37 A output current, zero voltage switch, optionally with thermal fuse

Product details

Product type	Solid-state contactor
Operating mode	100% operating factor

Number of phases	3
Switching frequency	max. 5 Hz
Test voltage (Input/output)	5 kV_rms (50 Hz, 60 s)
Switching frequency	max. 5 Hz
Reversing frequency	≤ 10 Hz
Insulation characteristics
Rated insulation voltage	500 V
Rated surge voltage	6 kV
Overvoltage category	III
Degree of pollution	2
Insulation characteristics between the control input voltage to the main circuit	Basic insulation

Control
Input name	Control input right/left
Rated actuating voltage U_C	24 V DC
Triggering voltage range	19.2 V DC ... 30 V DC
Voltage range with reference to U_C	0.8 ... 1.25
	0.8 ... 1.25
Rated actuating current I_C	12.7 mA
Switching threshold	9.6 V (“0” signal)
	19.2 V (“1” signal)
Protective circuit	Reverse polarity protection; Suppressor diode
	Surge protection
Error indication	Red LED
Status display	LED (yellow)

AC output
Rated operating voltage U_e	500 V AC
Operating voltage range	48 V AC ... 575 V AC
Rated operating current at AC-51	37 A
Rated operating current at AC-53a	25 A
Peak offstate voltage	1200 V
Mains frequency	40 Hz ... 100 Hz
Load current range	200 mA ... 37 A (see to derating)
Leakage current	6 mA
Residual voltage	< 1.5 V
Surge current	1300 A (t = 10 ms)
Max. load value	9000 A²s
Protective circuit	RCV circuit
Surge voltage protection	> 575 V AC

Control circuits
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 4 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12
Tightening torque	0.5 Nm ... 0.6 Nm
	5 lb_f-in. ... 7 lb_f-in.
Load circuit
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M4
Conductor cross section rigid	0.5 mm² ... 16 mm²
Conductor cross section flexible	0.5 mm² ... 16 mm²
Conductor cross section AWG	20 ... 6
Tightening torque	15 lb_f-in.

Status display	LED (yellow)
Error indication	Red LED

Width	147.5 mm
Height	99 mm
Depth	114.5 mm

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-25 °C ... 70 °C
Ambient temperature (storage/transport)	-25 °C ... 70 °C

UL approval
Certificate	NMFT.E323771
UL data
SCCR	5 kA (50 A RK5 (standard fault) fuse)
	200 kA (50 A RK5 (standard fault) fuse)

Standards/regulations
Standards/regulations	DIN EN 50178
	EN 60947

Mounting type	DIN rail mounting
Assembly note	can be aligned with spacing = 40 mm
Mounting position	Vertical (horizontal DIN rail)

Commercial data

Item number	2297374
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	02
Product key	DK6841
GTIN	4046356175739
Weight per piece (including packing)	1,834 g
Weight per piece (excluding packing)	1,791 g
Customs tariff number	85371099
Country of origin	DE

Classifications

Approvals

Environmental product compliance

Compatible products

Accessories

Your advantages

Optional thermal fuse

Stable and short switching times

Long service life

Noise and wear-free switching

Integrated protection circuit

High switching frequency

Integrated locking and load wiring
