CES-B10-SF-PLBK
-
Snap-on frame
0801655
Snap-on frame, design: B10, material: PA (halogen-free), color: black, length: 108 mm, width: 64 mm, height: 39 mm
Product details
| Note on application | Mounting screws not supplied as standard. The maximum width of the panel cutout must not exceed 51 mm (instead of 35 mm for heavy-duty industrial connectors). |
| Product type | Frame for cable sleeves |
| Type | B10 |
| Frame type | Snap-on frame |

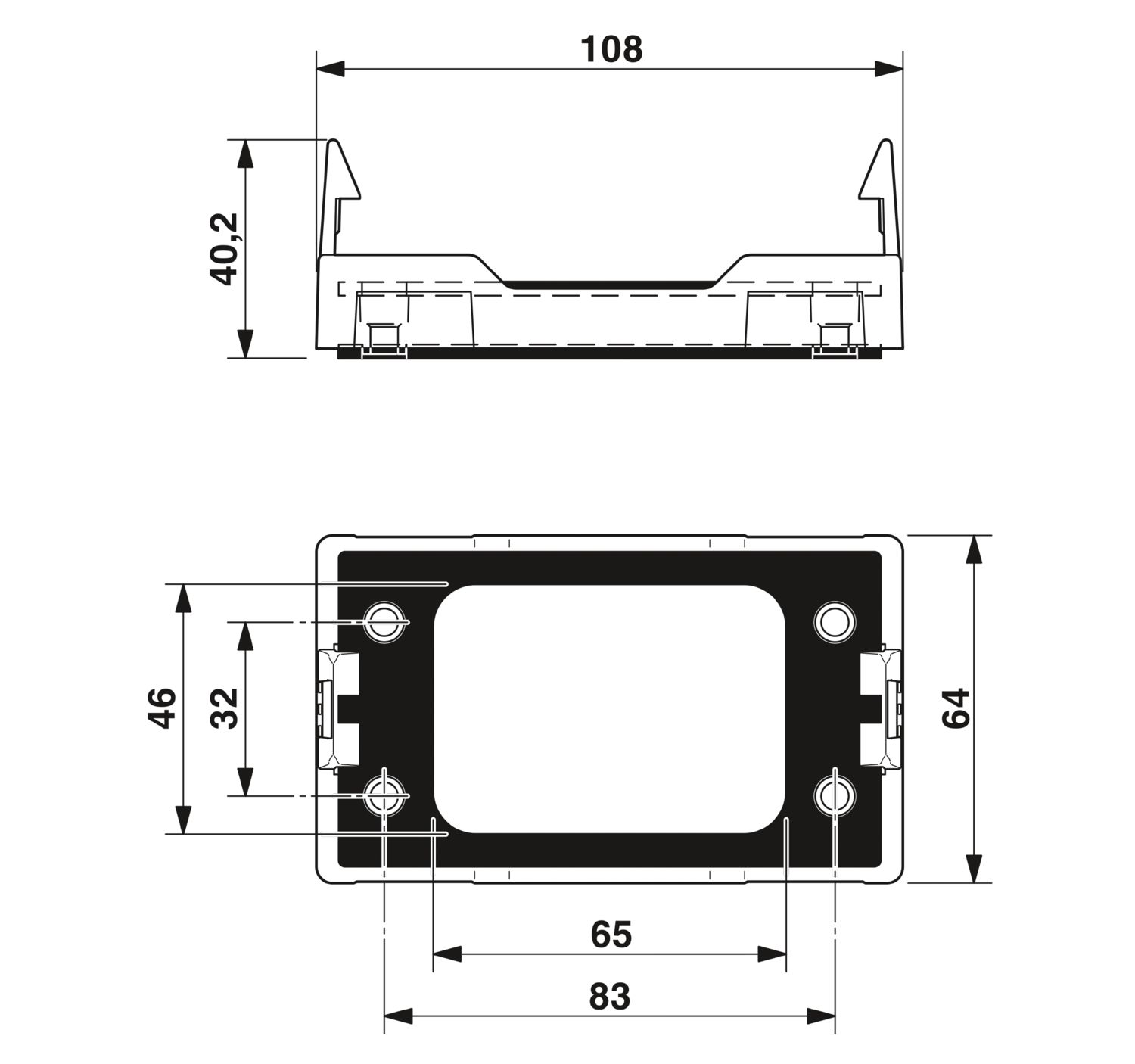

| Dimensional drawing |
|
| Width | 64 mm |
| Height | 39 mm |
| Length | 108 mm |
| Drill hole distance, horizontal | 32 mm |
| Drill hole distance, vertical | 83 mm |
| Hole diameter | 4.5 mm |
| Installation dimensions | |
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 65 mm |
| Material | PA (halogen-free) |
| Flammability rating according to UL 94 | V0 |
| Ambient conditions | |
| Degree of protection | IP54 |
| Ambient temperature (operation) | -20 °C ... 80 °C (static) |
| Assembly note | M4 mounting screw, 1.8 Nm torque. |
| A video tutorial on how to assemble the product can be found in the Downloads area, in the Video category. |
Your advantages
Can also be used for standard panel cutouts for heavy-duty industrial connectors
