WP-GA HF IP66 M20 BK - Protective hose screw connection
WP-GA HF IP66 M20 BK
-
Protective hose screw connection
3240926
Cable gland, metric thread, IP66 protection, angled
Product details
Expand all
Collapse all
Technical data
Product properties
Product type
Protective hose screw connection
Application
Cable gland
Type of the screw connection
Conduit adapter
Type
Outer thread
Cable outlet
angled
Thread type
metric
Dimensions
Width
23 mm
Height
42 mm
Length
41.5 mm
Diameter
24.5 mm
Material specifications
Material
PA 6
Flammability rating according to UL 94
V2
Material for screw connection
PA
Components
free from silicone, halogen, and cadmium
Cable/line
Halogen-free
yes
Mechanical properties
Mechanical data
Type of the screw connection
Conduit adapter
Environmental and real-life conditions
Ambient conditions
Degree of protection
IP66
Ambient temperature (operation)
-40 °C ... 120 °C
Commercial data
Item number
3240926
Packing unit
50 pc
Minimum order quantity
50 pc
Sales key
02
Product key
AF7DSA
Catalog page
Page 589 (C-3-2019)
GTIN
4046356710336
Weight per piece (including packing)
10.8 g
Weight per piece (excluding packing)
10.8 g
Customs tariff number
39174000
Country of origin
DE
Classifications
ECLASS
ECLASS-13.0
27430311
ETIM
ETIM 9.0
EC001178
UNSPSC
UNSPSC 21.0
39121300
Approvals
UL Recognized
Approval ID: E86359
LR
VDE approval of drawings
Environmental product compliance
EU RoHS
Fulfills EU RoHS substance requirements
Yes
(No exemptions)
China RoHS
Environment friendly use period (EFUP)
EFUP-E
No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)
No substance above 0.1 wt%
Compatible products
Expand all
Collapse all
Accessories

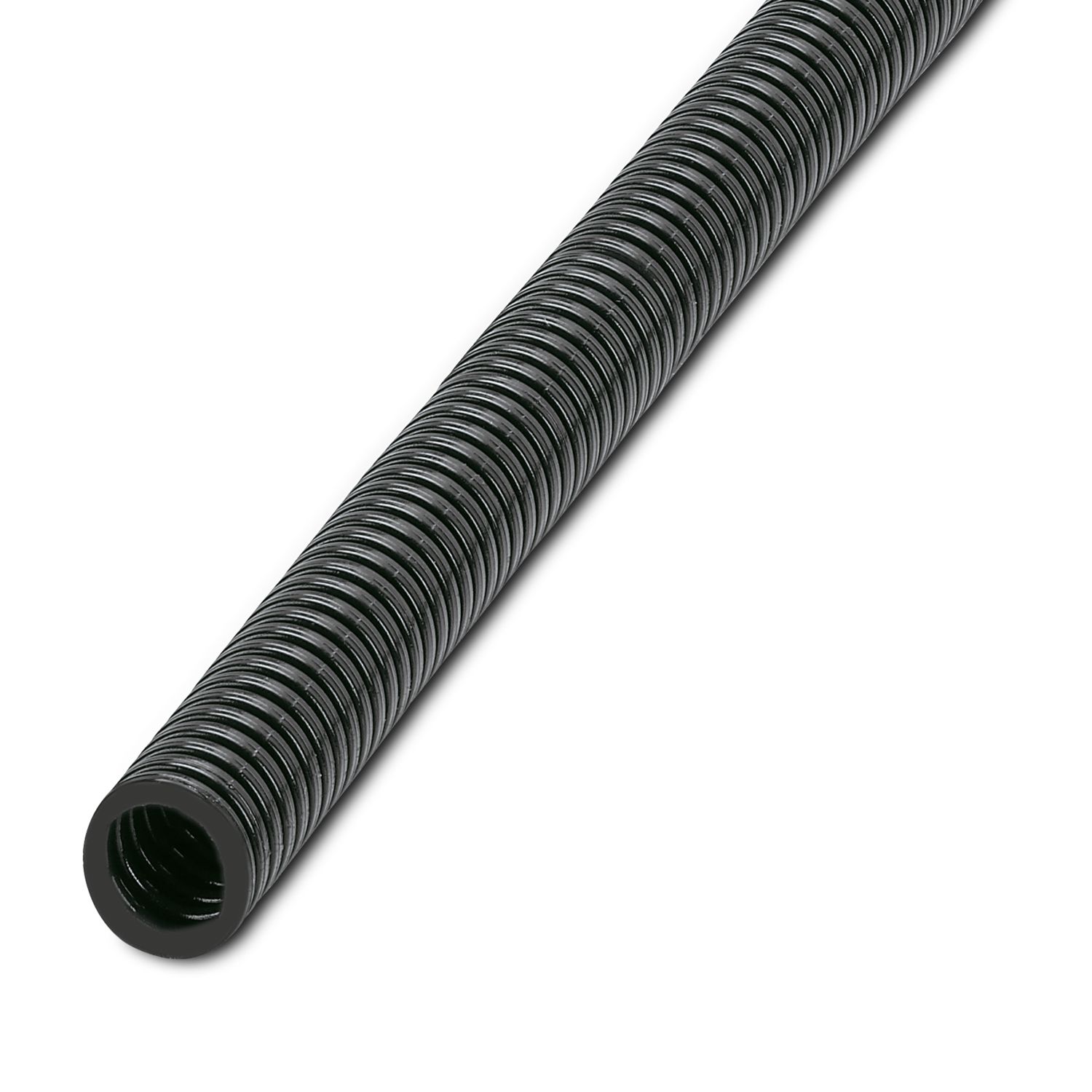

WP-PA HF 15,8 BK
-
Protective hose
3240682
WP-PA HF-HB 15,8 BK
-
Protective hose
3240840
WP-BASE A M20
-
Protective hose fixing bracket
3241084

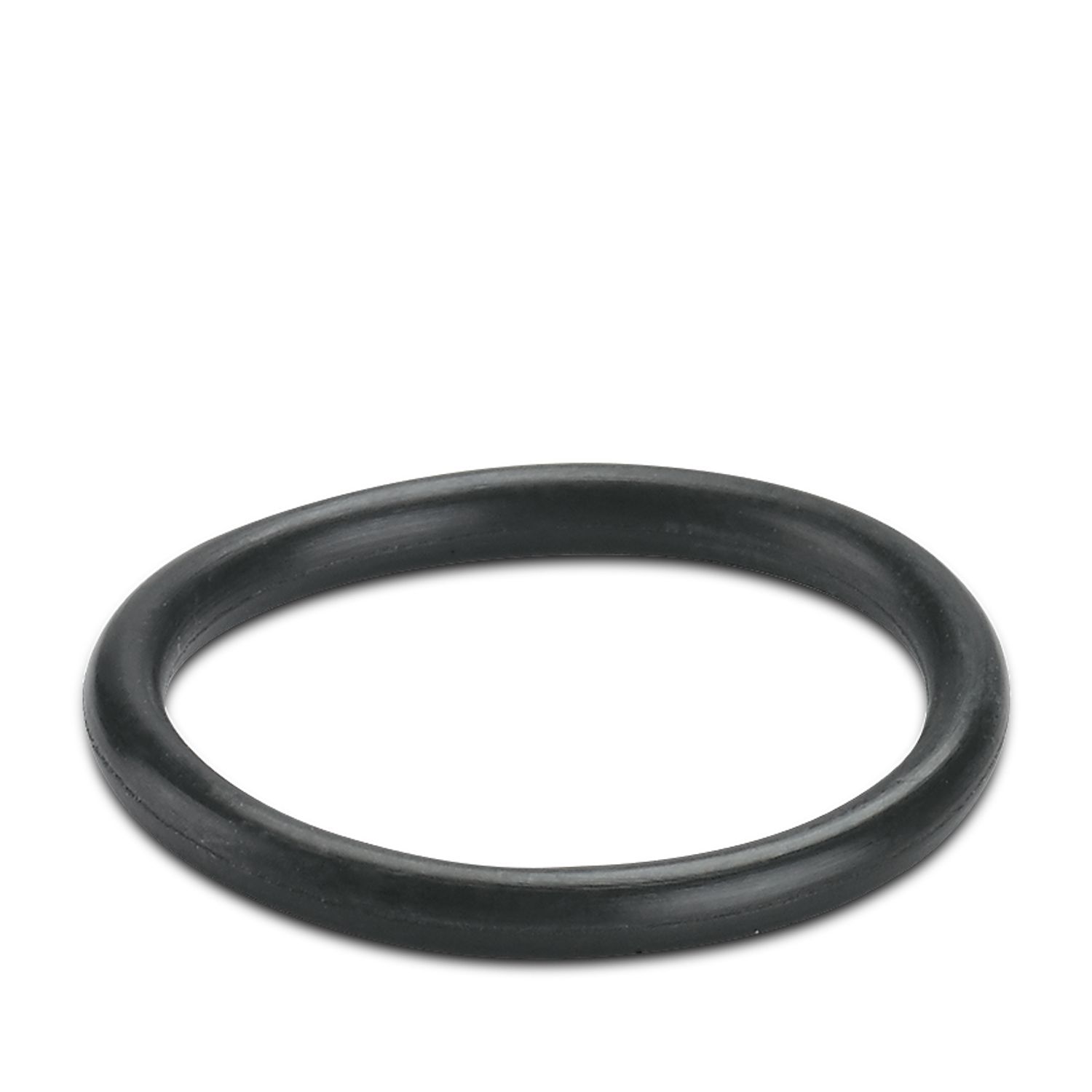

WP-OR M20
-
Sealing ring
3241190
A-INL-M20-P-BK
-
Counter nut
1411215
