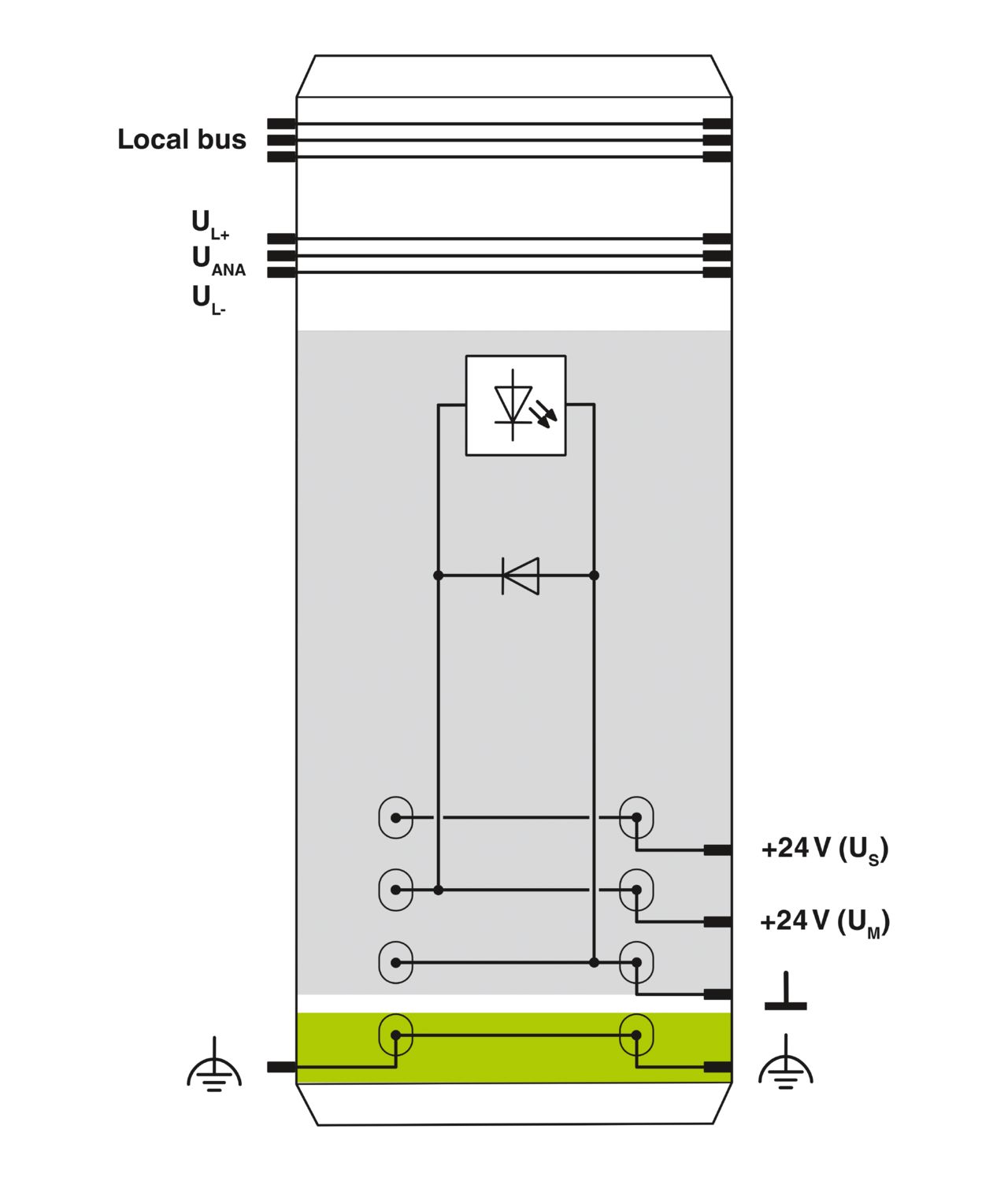

The terminal is designed for use within an Inline station. It enables the 24 V supply voltage to be fed into the main circuit (UM). In addition, this terminal can be used to supply power for a 24 V segment circuit (US).

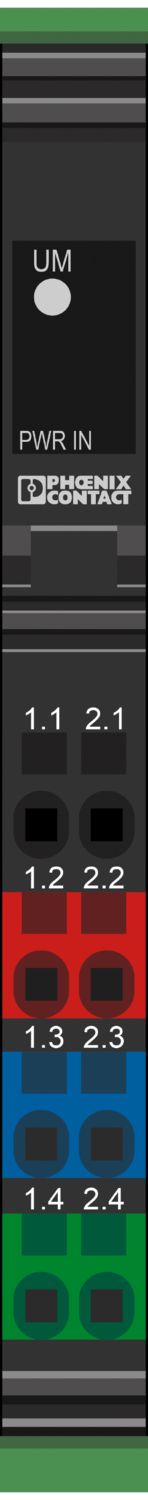

IB IL 24 PWR IN-PAC
-
Feed-in module
2861331
Inline power terminal, complete with accessories (connector and labeling field), 24 V DC, without fuse
Free download available.
Downloads
Product details
| Dimensional drawing |
|
| Width | 12.2 mm |
| Height | 119.8 mm |
| Depth | 71.5 mm |
| Note on application | |
| Note on application | Only for industrial use |
| Utilization restriction | |
| CCCex note | Use in potentially explosive areas is not permitted in China. |
| Inline local bus | |
| Number of interfaces | 2 |
| Connection method | Inline data jumper |
| Transmission speed | 500 kbps / 2 Mbps (Can be used in Inline stations with these transmission speeds) |
| Module | |
| ID code (dec.) | none |
| ID code (hex) | none |
| Process data channel | 0 bit |
| Input address area | 0 bit |
| Output address area | 0 bit |
| Register length | 0 bit |
| Required parameter data | 0 Byte |
| Required configuration data | 0 Byte |
| Product type | I/O component |
| Product family | Inline |
| Type | modular |
| Number of plugs | 1 |
| Special properties | 24 V DC |
| UM, US | |
| Insulation characteristics | |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Maximum power dissipation for nominal condition | 1.8 W |
| Test section | 7.5 V supply (bus logics)/24 V supply (I/O) 500 V AC 50 Hz 1 min |
| 24 V supply (I/O) / functional ground 500 V AC 50 Hz 1 min | |
| 7.5 V supply (bus logic)/functional ground 500 V AC 50 Hz 1 min | |
| Protective circuit | Surge protection; Suppressor diode |
| Reverse polarity protection; Parallel polarity protection diode | |
| Overload protection, short-circuit protection in the segment circuit; No | |
| Potentials: Main circuit supply (UM) | |
| Supply voltage | 24 V DC (via Inline connector) |
| Supply voltage range | 19.2 V ... 30 V (including all tolerances, including ripple) |
| Potentials: Segment circuit supply (US) | |
| Supply voltage | 24 V DC (via Inline connector) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Connection technology | |
| Connection name | Inline connector |
| Conductor connection | |
| Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm |
| Inline connector | |
| Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Mounting type | DIN rail mounting |
BV
Approval ID: 21595/C0 BVBSH
Approval ID: 658aRINA
Approval ID: ELE121121XGABS
Approval ID: 22-2226444-PDAFunctional Safety
Approval ID: 968/EL 711.08/23cULus Recognized
Approval ID: E140324cULus Listed
Approval ID: E199827
Your advantages
Supply of the 24 V main voltage UM
Feed-in or provision of the 24 V segment voltage US
Main circuit protected by an external fuse
Segment circuit can be protected by an external fuse
