VIP-2/PT/PDM-2/16/FU 6.3A - Potential distributors

2903603

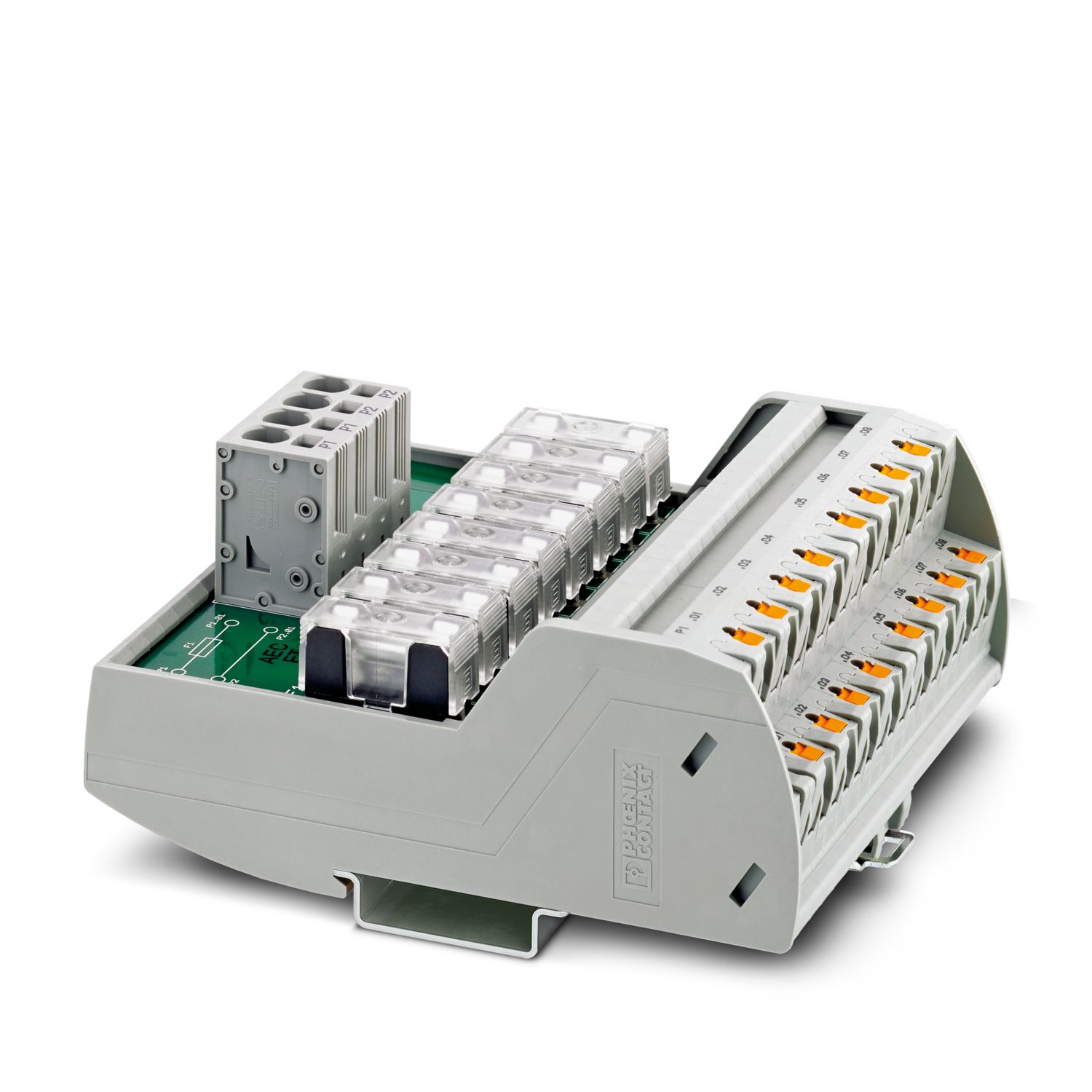

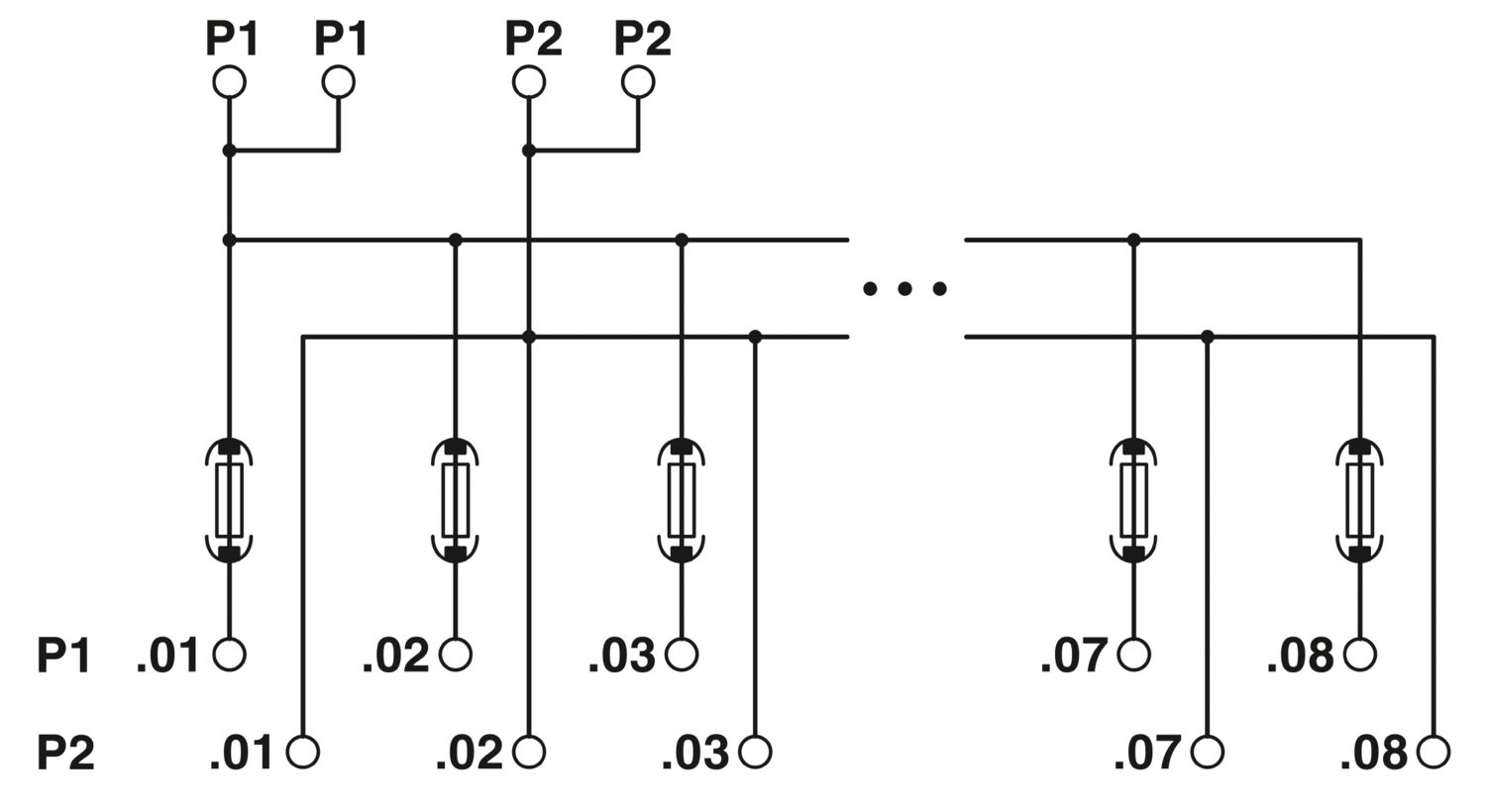

VARIOFACE module, with two equipotential busbars (P1, P2) for potential distribution, for mounting on NS 35 rails. Module width: 97.7 mm

Product details

Type of insulation housing	Polyamide PA non-reinforced
Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Product type	Potential distributor
Product family	VARIOFACE Professional
Potential connections	Per potential (P1, P2) 2 power/8 distributor terminal blocks
Insulation characteristics
Overvoltage category	II
Pollution degree	2

Nominal voltage U_N	250 V AC/DC
Max. current carrying capacity per branch	6.3 A (fuse limited)
Max. total current of all branches	30 A (per potential)

Potential connections	Per potential (P1, P2) 2 power/8 distributor terminal blocks

Feed-in
Connection method	Push-in connection
Stripping length	15 mm
Number of connections	2
Conductor cross section rigid	0.2 mm² ... 10 mm²
Conductor cross section flexible	0.2 mm² ... 6 mm²
Conductor cross section AWG	24 ... 8
Distribution
Connection method	Push-in connection
Stripping length	8 mm
Number of connections	8
Number of positions	2
Conductor cross section rigid	0.14 mm² ... 2.5 mm²
Conductor cross section flexible	0.14 mm² ... 2.5 mm²
Conductor cross section AWG	26 ... 14

Width	97.7 mm
Height	109.8 mm
Depth	51 mm

Color	gray (RAL 7042)

Ambient conditions
Ambient temperature (operation)	-20 °C ... 60 °C
Ambient temperature (storage/transport)	-20 °C ... 70 °C
Altitude	< 2000 m
Permissible humidity (operation)	90 %
Permissible humidity (storage/transport)	90 %

Standards/regulations	EN IEC 61010-2-201

Mounting type	DIN rail mounting
Mounting position	any

Commercial data

Item number	2903603
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	02
Product key	DK2124
GTIN	4046356948166
Weight per piece (including packing)	275 g
Weight per piece (excluding packing)	220 g
Customs tariff number	85369010
Country of origin	US

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	250 V	30 A	24 - 8
per branch		6.3 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	250 V	30 A	24 - 8
per branch		6.3 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	250 V	30 A	24 - 8
per branch		6.3 A

Environmental product compliance

Your advantages

Consecutive numbering

Two potential levels

Separate supply
