HC-B-AF
-
Panel-mount flange
1686533
Panel-mount flange for HEAVYCON ADVANCE housing
Product details
| General | 2 for every connector |
| Product type | Panel-mount flange |
| Housing type | Panel-mount flange |
| Type | B6 - B24 |
| Type | single without screws |
| Pg screw connection | none |
| Tightening torque | 0.8 Nm ... 1.2 Nm (For M4 mounting screws on the panel-mount base) |

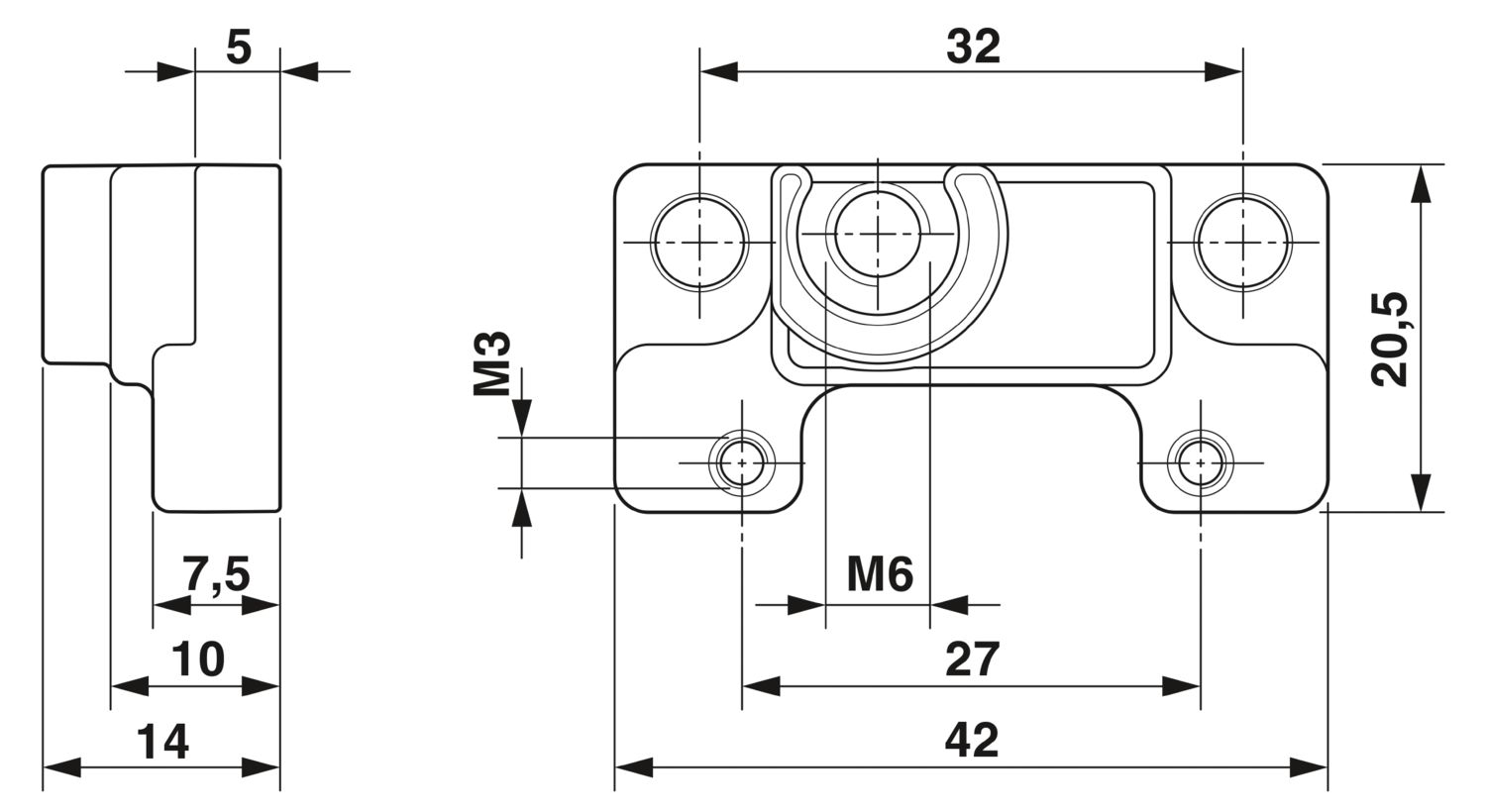

| Dimensional drawing |
|
| Width | 42 mm |
| Height | 20.5 mm |
| Depth | 14 mm |
| Hole diameter | 4.5 mm |
| Material | Die-cast aluminum |
| Mechanical data | |
| Locking type | Nut |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Assembly note | In order to guarantee that the protective conductor contact functions even when plugged in at an angle, the two panel-mount flanges must have sufficient electrical contact with the metal mounting panel. |
| Minimum panel thickness of a steel sheet: 2.0 mm. For mounting with self-tapping M4 screws: 3.6 mm drill-hole diameter |
