Q 1,5/4FL/16-M25KU-ESA
-
Panel feed-through
1640676
Panel feed-through, for external panel mounting, with manual solder/slip-on connection, 4.8 x 0.8 mm
Product details
| Product type | Panel feed-through |
| Number of positions | 4 |
| Position marking | 1, 2, 3, 4 |
| Number of connections | 4 |
| Number of connections per position | 1 |
| Shielded | no |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Connection technology | |
| Connection method On the device side | Manual solder/slip on connection |
| Frequency of connections between conductors of the same cross section | 10 (if the conductor is connected more than once, seal and cap may need to be replaced.) |
| Conductor connection | |
| Conductor cross section flexibel | 0.75 mm² ... 1.5 mm² |
| Conductor cross section solid | 0.75 mm² ... 1 mm² |
| Connection cross section AWG | 18 ... 16 |
| Tightening torque Union nut | 3.3 Nm |
| Tightening torque Locking nut | 5 Nm |
| Wrench size Union nut | 27 mm |
| Wrench size Contact carrier | 30 mm |

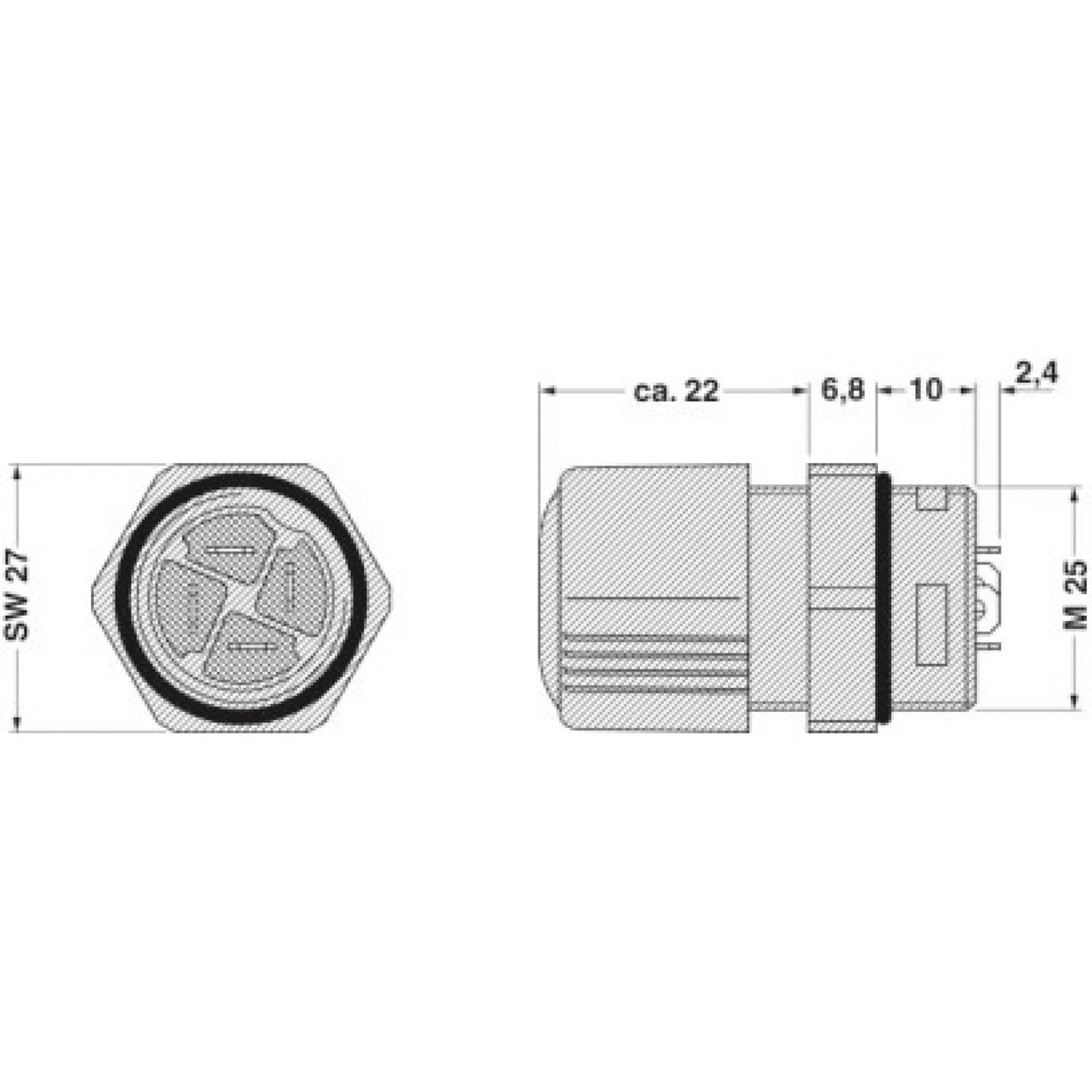

| Dimensional drawing |
|
| Width | 27 mm |
| Height | 27 mm |
| Length | 41.2 mm |
| Rated surge voltage (III/3) | 6 kV |
| Rated current | 17.5 A |
| Contact resistance | < 3 mΩ |
| Rated voltage (III/3) | 250 V (with insulating sleeve) |
| Nominal voltage UN | 250 V AC |
| 250 V DC | |
| Nominal current IN | 17.5 A |
| Color (Housing) | green (RAL 6021) |
| Material Housing | PA |
| Flammability rating according to UL 94 | V0 |
| Material wire insulation | PVC / PE |
| Contact material | Copper alloy |
| Contact surface material | Pre-nickel plated and tin-plated |
| Contact carrier material | PA 6.6 |
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 Cl.2-5, min. wire diameter 0.2 mm |
| External cable diameter | 6 mm ... 12 mm |
| Wire diameter including insulation | >= 3 mm |
| Position marking | 1, 2, 3, 4 |
| Mounting type | Front mounting M25 |
| Assembly note | If the conductor is reconnected, it must be cut off above the last contact point. QUICKON components may only be operated when under no load. |
| Ambient conditions | |
| Degree of protection | IP65 |
| IP67 | |
| Ambient temperature (operation) | -25 °C ... 80 °C (specifications of the cable manufacturer must also be observed) |
| -25 °C ... 50 °C | |
| Temperature when conductor connected | -5 °C ... 50 °C (specifications of the cable manufacturer must also be observed) |
Your advantages
Robust throughout: housing with IP65/IP67 protection for a wide range of applications
