Panel feed-through, Direct connection, product family: IPD, connection method: Single wires/ Push-in connection, number of positions: 4+PE, M25, 0.5 mm2 ... 2.5 mm2, 450 V, 16 A, PA, light gray, external cable diameter: 7 mm ... 11 mm and 11 mm ... 16 mm, 2.5 mm2, cable length: 0.5 m
| Product type | Panel feed-through |
| Product family | IPD |
| Number of positions | 5 |
| Connection profile | 4+PE |
| Position marking | 1, 2, 3, N, PE |
| Type | Direct connection |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Connection technology | |
| Connection method On the device side | Single wires |
| Connection method On the field side | Push-in connection |
| Frequency of connections between conductors of the same cross section | max. 10 |
| Conductor connection | |
| Conductor cross section flexibel | 0.5 mm² ... 2.5 mm² |
| Conductor cross section solid | 0.5 mm² ... 2.5 mm² |
| Conductor cross section with ferrule | 0.5 mm² ... 2.5 mm² |
| Connection cross section AWG | 20 ... 14 |

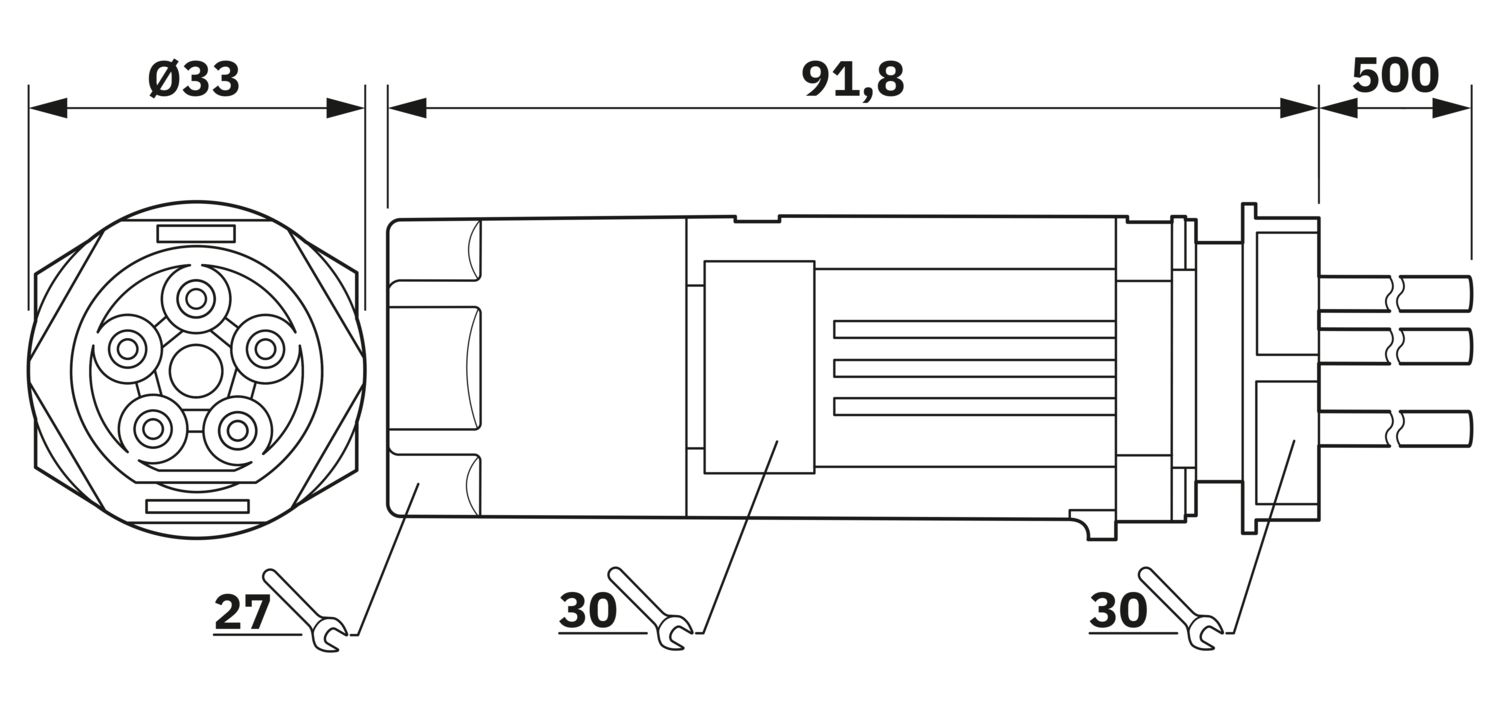

| Dimensional drawing |
|
| Width | 33 mm |
| Length | 91.8 mm |
| Rated surge voltage (III/3) | 6 kV |
| Rated current | 16 A |
| Rated voltage (III/3) | 450 V |
| Nominal voltage UN | 450 V AC |
| 450 V DC | |

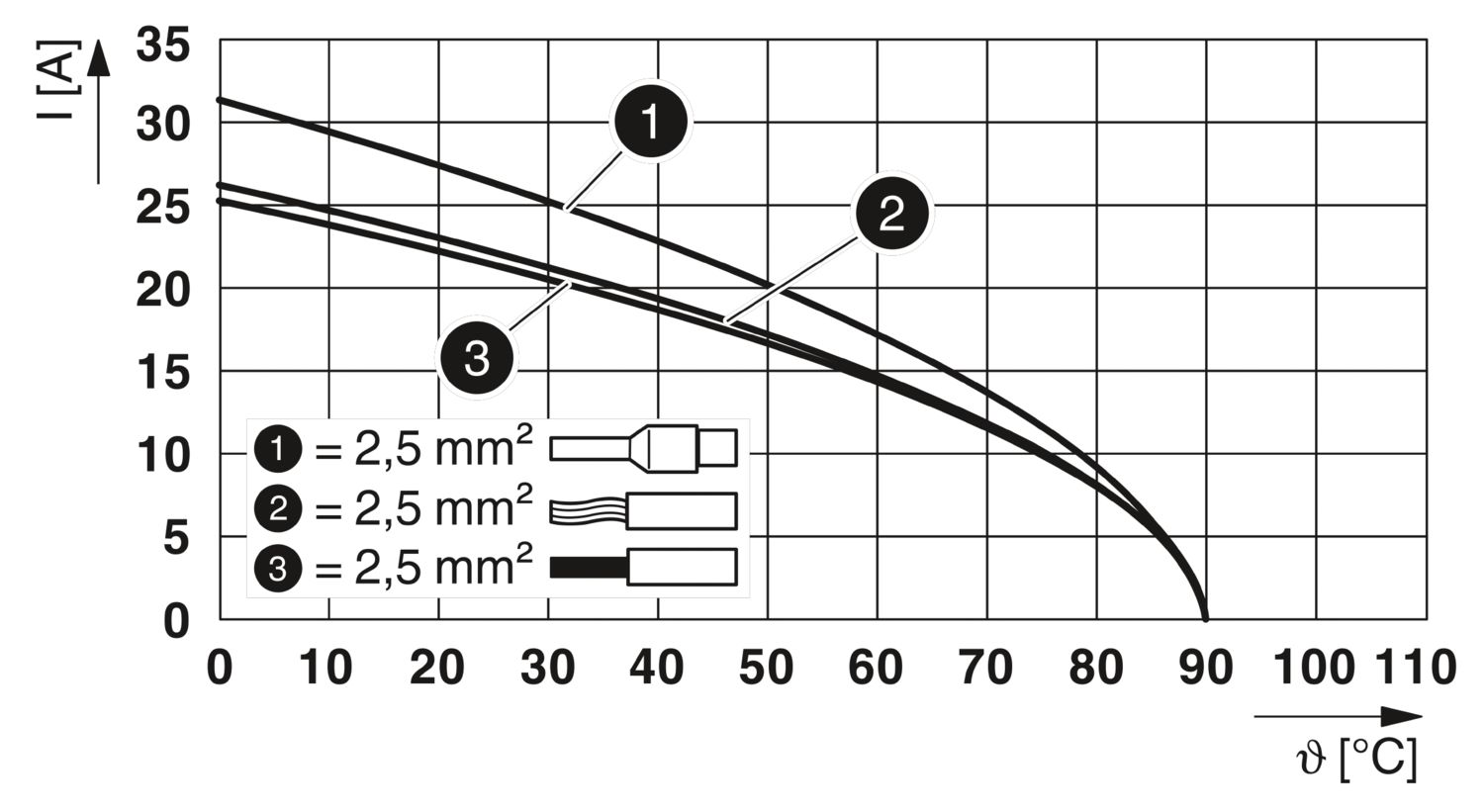

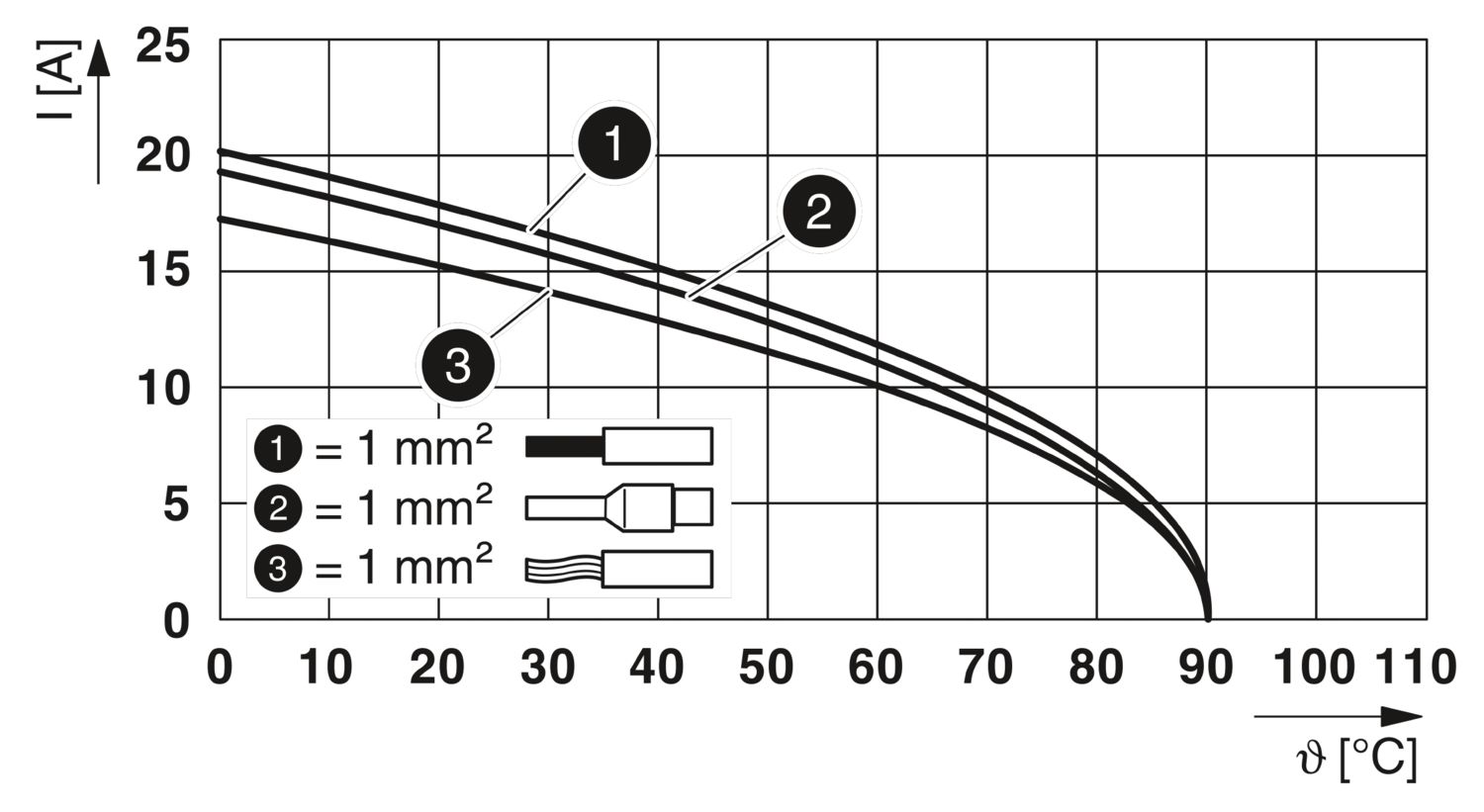

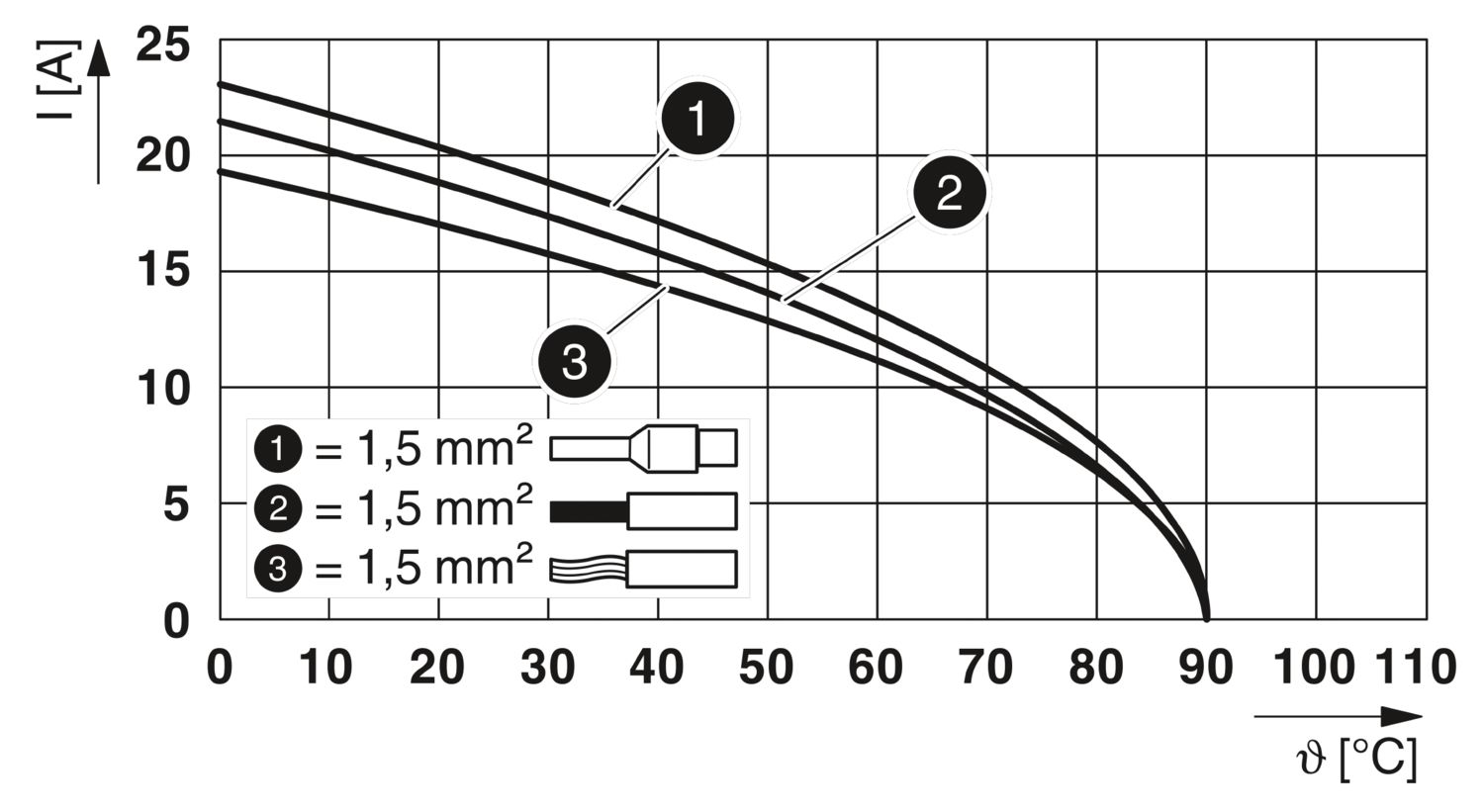

| Nominal current IN | 16 A (observe derating) |
| Mechanical data | |
| Insertion/withdrawal cycles | 10 |
| Color (Housing) | light gray (RAL 7035) |
| Material Housing | PA |
| Material Seal | NBR (Field) |
| EPDM (Device) | |
| Contact material | Cu |
| Contact surface material | Ni/Sn |
| Cable length | 0.5 m |
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 class 5 |
| External cable diameter | 7 mm ... 11 mm |
| 11 mm ... 16 mm | |
| Stripping length of the individual wire | 10 mm |
| Position marking | 1, 2, 3, N, PE |
| Single wire, color | brown, black, gray, blue, green-yellow |
| Cable cross section | 2.5 mm² |
| Material wire insulation | PVC |
| Halogen-free | no |
| Mounting type | Front mounting M25 |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP68 (2 m / 24 h) | |
| IP69K | |
| Impact strength | IK07 |
| Ambient temperature (operation) | -40 °C ... 90 °C (T = 45 °C) |
| Temperature when conductor connected | -5 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 90 °C |
| Resistance to UV radiation | yes |
| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| Only rigid conductors | 600 V | 15 A | - 14 | |
| multi-stranded with ferrule | 600 V | 15 A | - 14 |
| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| Only rigid conductors | 600 V | 17 A | - 14 | |
| multi-stranded with ferrule | 600 V | 17 A | - 14 |
