EMM W3/ 5-500 EX - Motor management - 2963682

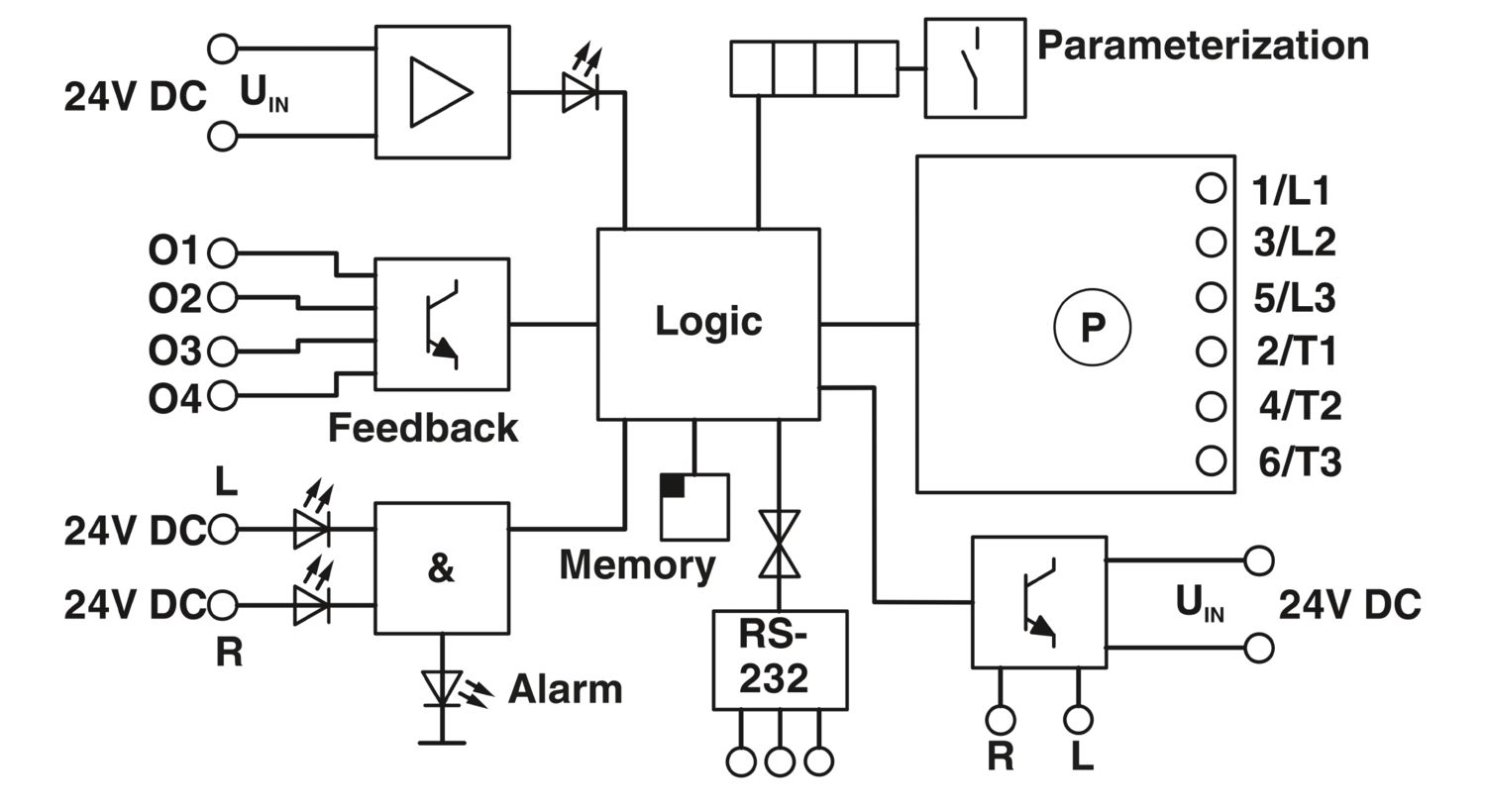

Product properties

Product type	Electronic motor manager
Operating mode	100% operating factor

Electrical properties

Number of phases	3
Mains type	3-phase
Test voltage input/output	2.5 kV
Supply
Input name	Device supply
Nominal supply voltage	24 V DC
Supply voltage range with reference to U_VN	0.8 ... 1.2
Quiescent current	80 mA
Current consumption	80 mA
Protective circuit	Reverse polarity protection; Series polarity protection diode
Protective circuit		Surge protection
Operating voltage display	Green LED
Error indication	Red LED
Status display	LED (yellow)
Supply
Input name	Supply voltage for 2 A digital outputs
Nominal supply voltage	24 V DC ±20 %
Nominal input voltage U_N	24 V DC ±20 %
Input voltage range in reference to U_N	0.8 ... 1.2
Input voltage range in reference to U_N		0.8 ... 1.2
Typical input current at U_N	2 A

Input data

Control
Input name	Control input right/left
Nominal input voltage U_N	24 V DC
Input voltage range in reference to U_N	0.8 ... 1.2
Input voltage range in reference to U_N		0.8 ... 1.2
Typical input current at U_N	7 mA
Current consumption	7 mA
Reaction time in normal load operation	< 25 ms
Typical response time	< 25 ms
Typical turn-off time	< 25 ms
Reaction time in normal load operation	< 25 ms
Status display	LED yellow, forward running (R), LED yellow, reverse running (L)
Measurement
Input name	Voltage measuring input V1, V2, V3
Mains frequency	45 Hz
Mains frequency		65 Hz
Typical input current at U_N	6 mA AC (At 550 V AC, per line)
Current consumption	6 mA (at 550 V AC)
Protective circuit	Surge protection
Protective circuit		RC element; RC element
Measurement
Input name	Current measuring input L1/T1, L2/T2, L3/T3
Mains frequency	50 Hz
Mains frequency		60 Hz
Typical input current at U_N	max. 5 A
Power measurement
Basic accuracy	± 2 % (Of input value, type < ± 1 %, cosφ 0.7, tu 20 °C, I = 5 A)
Power range	0.1 kW ... 5 kW (x transformation ratio of external current transducers)
Voltage measurement/star voltage
Basic accuracy	± 2 % (Of end value, typ. < ±0.5 %)
Voltage range	0 V ... 318 V (Toward virtual star point)
Current measurement
Basic accuracy	± 2 % (Of end value, typ. < ±1 %)
Current range	0.25 A ... 5 A (x transformation ratio of external current transducers)
Measuring via	Current transformer for any conductor current

Output data

Switching outputs 2 A
Nominal output voltage	24 V DC
Nominal output voltage range (factor)	0.8 ... 1.2
Continuous load current	2 A
Protective circuit	Reverse polarity protection
	Surge protection
	short-circuit and overload proof
Acknowledging contacts O1-O4
Note	The meaning of the acknowledgement outputs can be freely parameterized, see user manual
Number of outputs	4
Nominal output voltage	U_VN - 1 V
Continuous load current	50 mA

Connection data

Control circuits
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 6 mm²
Conductor cross section flexible	0.2 mm² ... 4 mm²
Conductor cross section AWG	24 ... 10
Load circuit
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 6 mm²
Conductor cross section flexible	0.2 mm² ... 4 mm²
Conductor cross section AWG	24 ... 10

Interfaces

Dimensions

Material specifications

Color	green (RAL 6021)

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-20 °C ... 60 °C
Ambient temperature (storage/transport)	-20 °C ... 70 °C

Standards and regulations

Air clearances and creepage distances between the power circuits
Standards/regulations	DIN EN 50178
	safe isolation
Power station requirements
Standards/regulations	DWR 1300/ZXX01/DD/7080.8d
EMC regulations
Standards/regulations	EN 61000-6-2
	EN 61000-6-4

Mounting

Assembly note	Can be aligned with > 20 mm spacing
Mounting position	Vertical (horizontal DIN rail)

Item number	2963682
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	02
Product key	DK7511
Catalog page	Page 162 (IF-2011)
GTIN	4017918953096
Weight per piece (including packing)	388.1 g
Weight per piece (excluding packing)	262.32 g
Customs tariff number	85438999
Country of origin	DE

EMM W3/ 5-500 EX - Motor management

2963682

EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
