HC-M-B06-MFH-B
-
Module carrier frame
1182085
Module carrier frame, size: B6, type : for the panel mounting side (a, b, c, ...), 4 mm2 ... 6 mm2, application: Module carrier frame
Product details
| General | This product replaces 1417398 HC-M-B06-MF-B |
| Product type | Module carrier frame |
| Series | HC-M-B |
| HC-M-02 | |
| HC-M-03 | |
| HC-M-03/04 | |
| HC-M-04 | |
| HC-M-05 | |
| HC-M-06 | |
| HC-M-08 | |
| HC-M-08-GBIT | |
| HC-M-12 | |
| HC-M-17 | |
| HC-M-20 | |
| HC-M-25 | |
| HC-M-DSUB | |
| HC-M-EMV | |
| HC-M-HV | |
| HC-M-HS | |
| HC-M-00 | |
| Application | Module carrier frame |
| Type | B6 |
| Number of module slots | 2 |
| Type | for the panel mounting side (a, b, c, ...) |
| Frame type | Module carrier frame |
| Conductor connection | |
| Conductor cross section | 4 mm² ... 6 mm² (for PE conductor - power side) |
| 1 mm² ... 2.5 mm² (for PE conductor control side) | |
| Connection cross section AWG | 12 ... 10 (for PE conductor - power side) |
| 18 ... 14 (for PE conductor control side) | |
| Tightening torque | 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) |

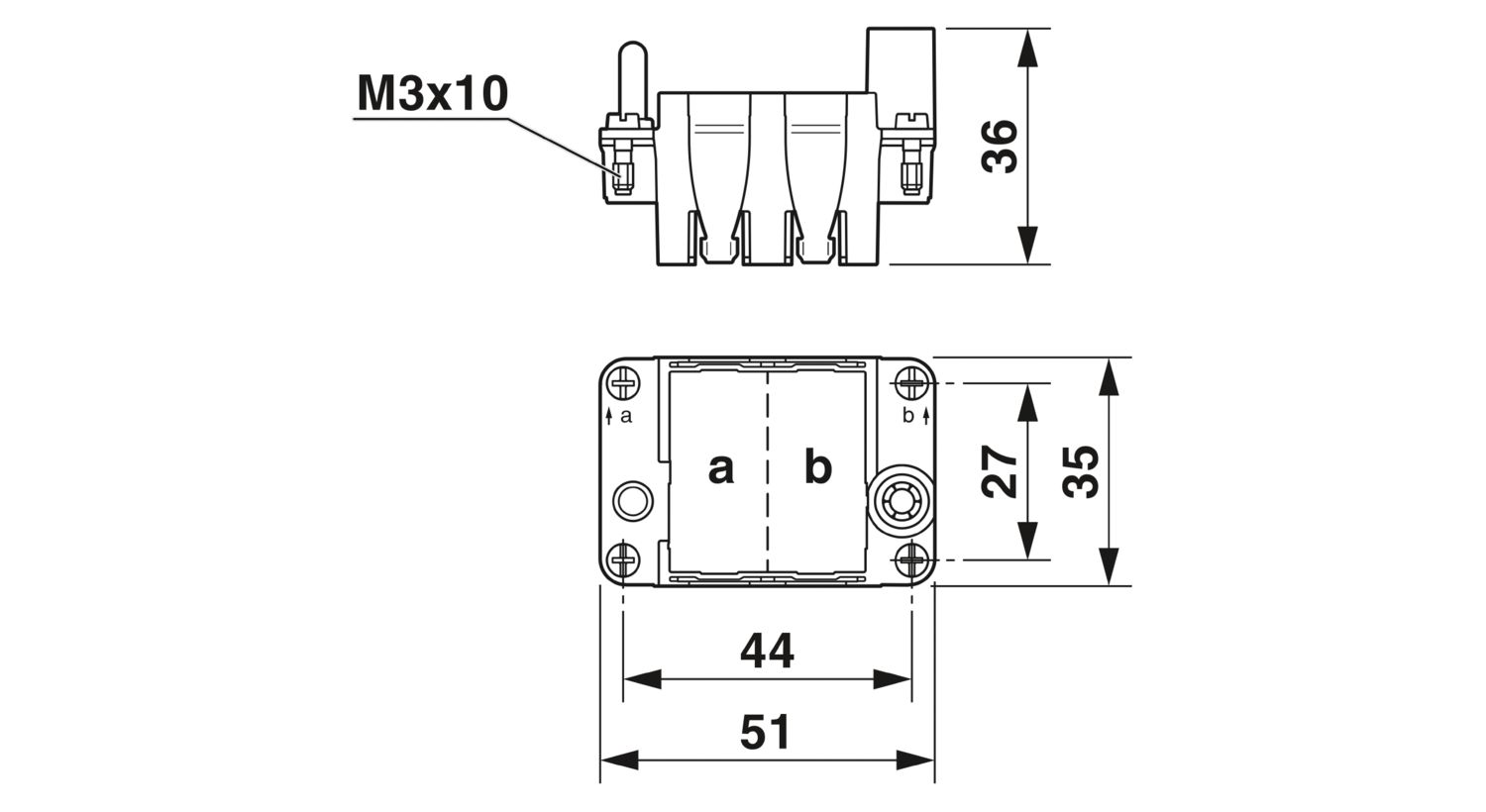

| Dimensional drawing |
|
| Width | 34.9 mm |
| Height | 36 mm |
| Length | 51 mm |
| Contact carrier material | Die-cast zinc alloy |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Assembly note | HC-MHR-PE16 ( 1636981) for PE connection extension to 16 mm². |
| Use wire end protection for PE wires (PE connection screws without wire protection) for housings without lateral connectors, max. thread length of the screw connection 12 mm | |
| When using the module carrier frame in metal housings, the connection of the PE conductor must be ensured via the PE connection provided on the module carrier frame or via a special metal PE module |
