IB L2 BOX 24 DIO2/2/4 M12-2A-D
-
I/O module
2732787

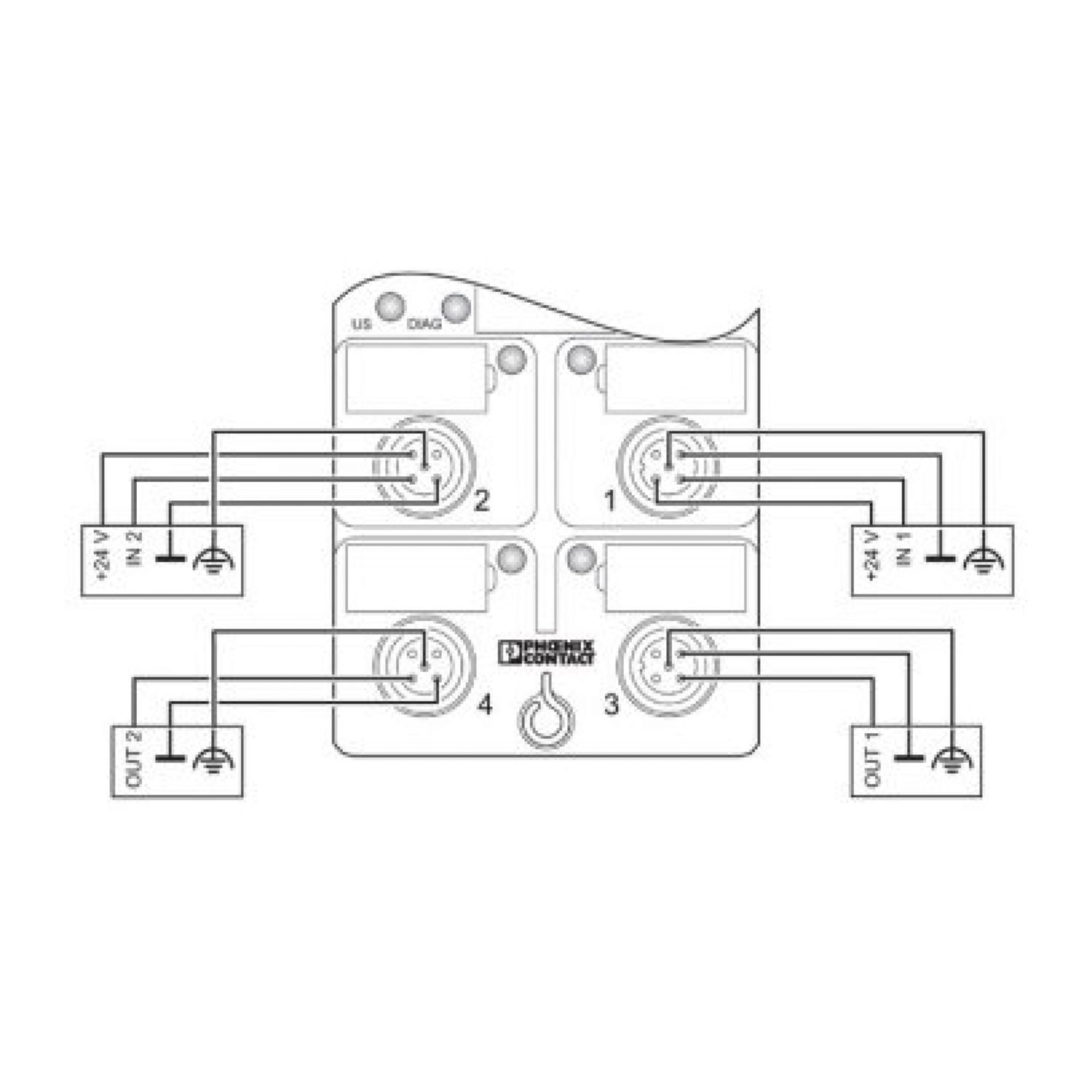

Digital input/output module, 2 digital inputs, 24 V DC, 4-conductor connection technology, 2 digital outputs, 24 V DC, 2 A, 3-conductor connection technology, IP65/IP67 degree of protection, with cross connected inputs or outputs
Product details
| Test section | Between actuators and INTERBUS-Loop 2 500 V AC 50 Hz 1 min |
| Supply | |
| I/O voltage | ± 24 V DC 5 % (ripple) |
| I/O voltage range | 19.2 V DC ... 30 V DC |
| Typical current consumption | 40 mA (from INTERBUS-Loop 2) |
| Digital | |
| Number of inputs | 2 |
| Input voltage range "0" signal | 0 V DC ... 5 V DC |
| Input voltage range "1" signal | 13 V ... 30 V |
| Protective circuit | Short-circuit protected initiator supply |
| Connection technology | 4-conductor |
| Typical input current per channel | 3 mA (at 24 V DC) |
| Digital | |
| Number of outputs | 2 |
| Output voltage | US - 1 V |
| Protective circuit | Short-circuit and overload protection |
| INTERBUS-Loop 2 | |
| Connection method | QUICKON fast connection |
| Dimensional drawing |
|
| Width | 62 mm |
| Height | 60 mm |
| Length | 95 mm |
