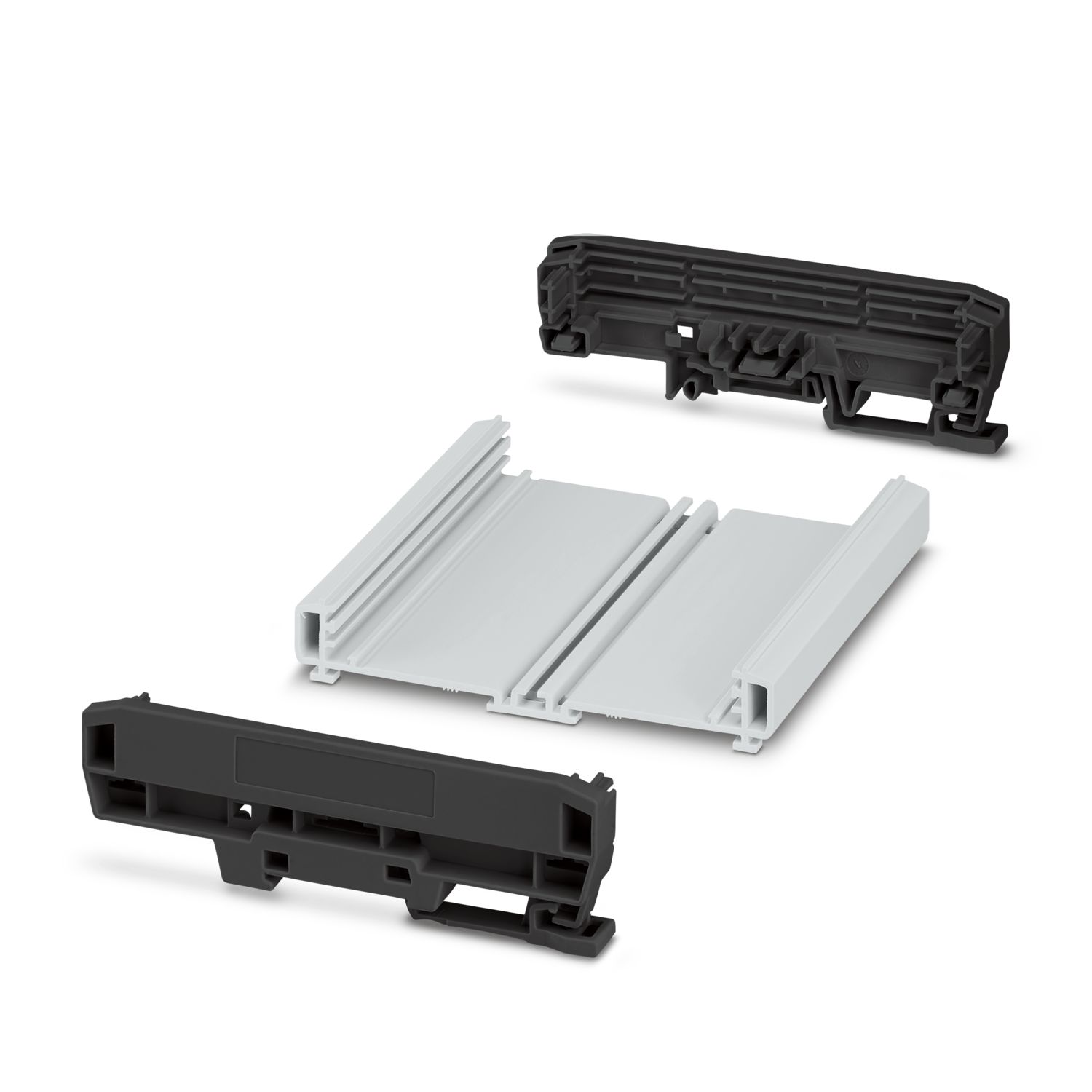

UM-PRO-SKT-B108-L120-7035 - Housing set - 1456980

El contenido que está viendo se ha elaborado a la medida de México. Ver contenido de Estados Unidos | Seleccionar otro país

Assembly note	Please observe the assembly instructions available in the download area.

Width	123.8 mm
Height	127.8 mm
Depth	39.45 mm
Depth from top edge of DIN rail	32.45 mm
Dimensions	108 mm x 120 mm (PCB dimensions)
PCB design
PCB thickness	1.4 mm ... 1.8 mm

Color (Housing side panel)	black (RAL 9005)
Color (Housing)	light gray (RAL 7035)
Flammability rating according to UL 94	V0
Insulating material	PA
Housing material	PA

Ambient conditions
Ambient temperature (operation)	-40 °C ... 105 °C (depending on power dissipation)
Ambient temperature (storage/transport)	-40 °C ... 55 °C
Ambient temperature (assembly)	-5 °C ... 100 °C
Relative humidity (storage/transport)	80 %

Number of PCB holders	3
Type of PCB mount	Insertion/securing with additional elements
Total PCB surface	10690 mm²
Thickness of the PCB	1.4 mm ... 1.8 mm

Mounting type	DIN rail mounting
Mounting position	parallel to the DIN rail

Type of packaging	packed in cardboard
Outer packaging type	Carton

Item number	1456980
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	02
Product key	ACHDAK
GTIN	4063151855185
Weight per piece (including packing)	131.1 g
Weight per piece (excluding packing)	97.19 g
Customs tariff number	39169010
Country of origin	DE

PHOENIX CONTACT S.A de C.V.

Lago Alberto No. 319 - Piso 9, Colonia Granada, Alcaldía Miguel Hidalgo, México, Ciudad de México, C.P. 11520

ECLASS-13.0	27190301
ECLASS-15.0	27190301

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
