HC-HV 6-SMQ-67/O1M25
-
Housing
1604933

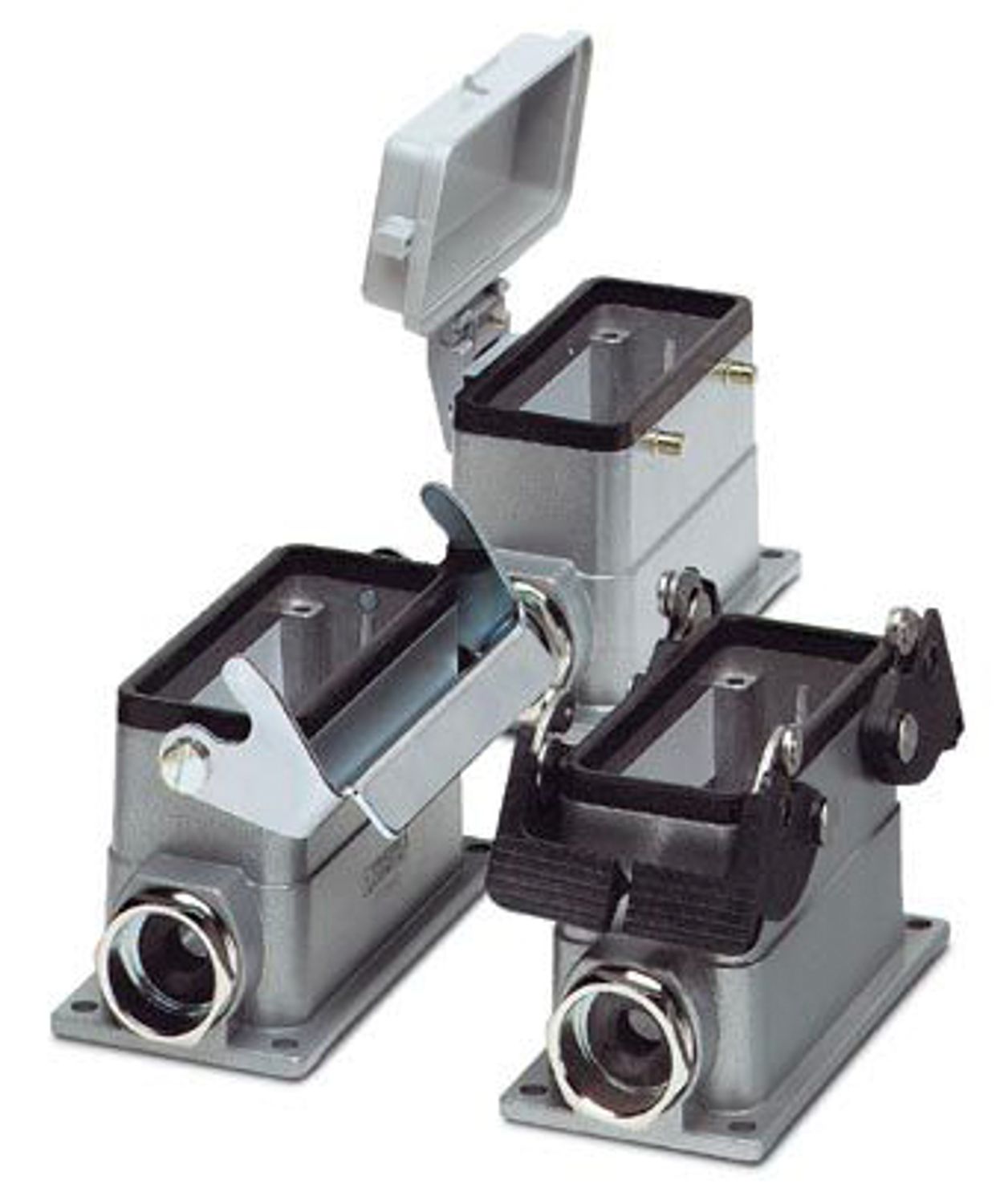

HEAVYCON box mounting base HV6, with double locking latch, height 67 mm, with support 1xM25
Product details
| General | For contact inserts HV-HV6 |
| Product type | Housing with locking latch |
| Housing type | Surface mounting housing |
| Application | Standard |
| Type | HV6 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M25 |
| Cable outlet | lateral |

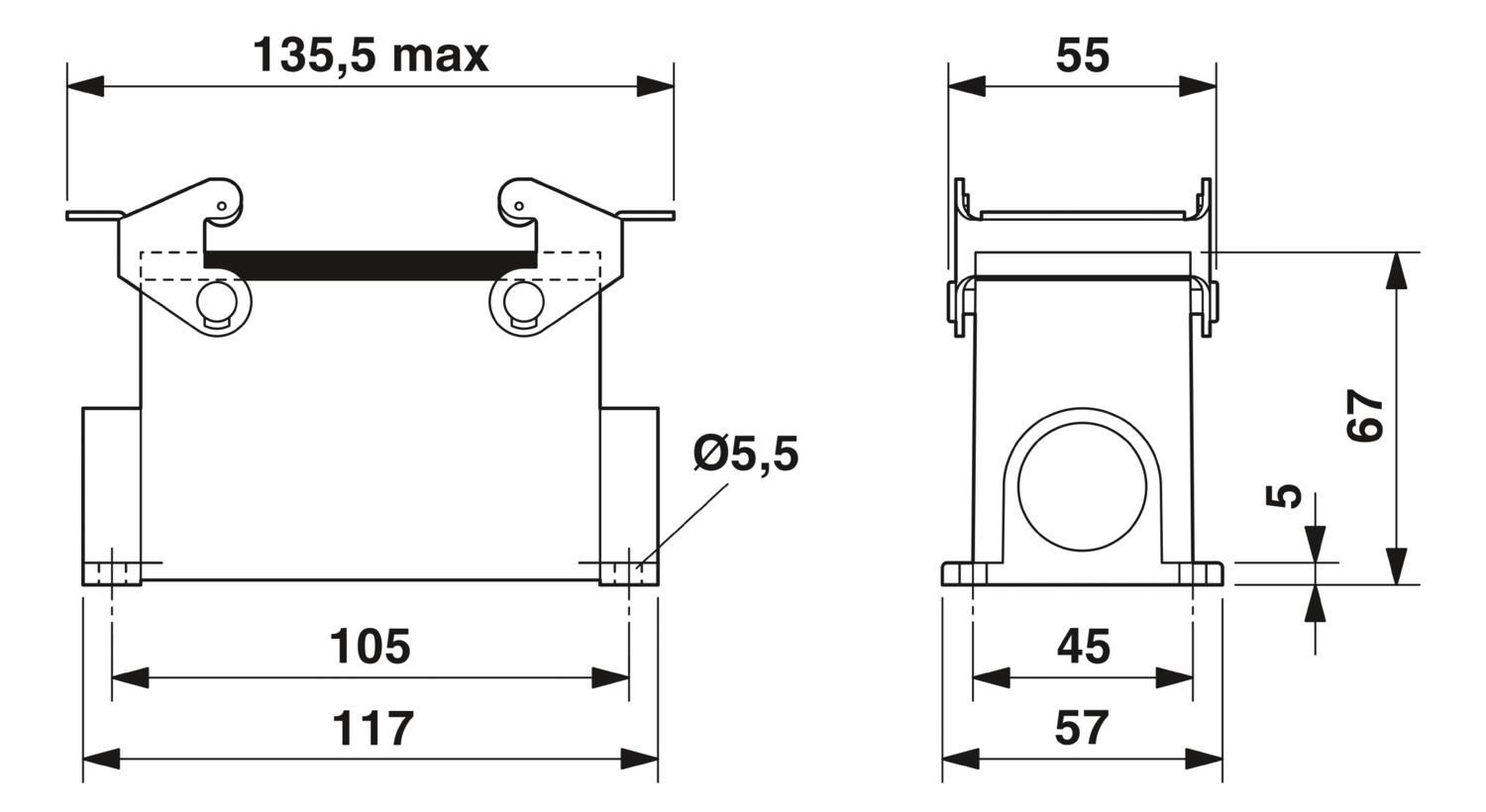

| Dimensional drawing |
|
| Width | 57 mm |
| Height | 67 mm |
| Length | 117 mm |
| Seal material | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Locking latch material | High-grade steel, handle: PA-GF |
| Mechanical data | |
| Type of the screw connection | 1x M25 |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
