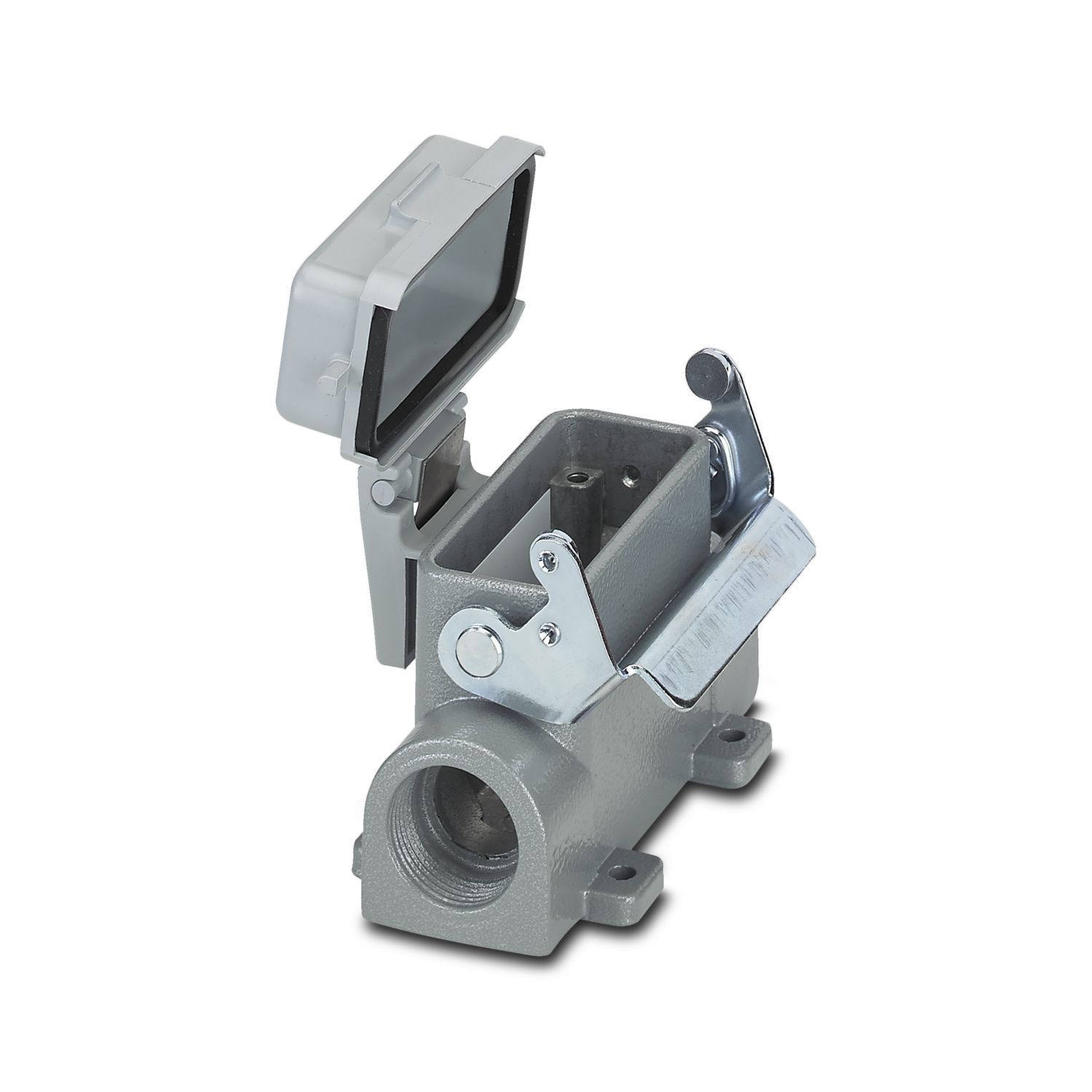

HC-D 15-SMLD-52/O1PG16 - Housing

1672673

Box mounting base, with single locking latch, height 52 mm, without screw connection, 1x Pg16, with protective covers

General	For contact inserts HC-D15, A10

Product type	Housing with locking latch
Housing type	Surface mounting housing
Application	Standard
Type	D15
No. of cable outlets	1
Type of the screw connection	1x Pg16
Protective cover	yes
Cable outlet	left (view of the opened single locking latch)
Pg screw connection	none

Mechanical data
Type of the screw connection	1x Pg16

Ambient conditions
Degree of protection	IP65 (When plugged in)
	IP54 (with closed protective cover)
Ambient temperature (operation)	-40 °C ... 125 °C

Item number	1672673
Packing unit	10 pc
Minimum order quantity	1 pc
Sales key	02
Product key	AF7AAE
GTIN	4017918145217
Weight per piece (including packing)	241.52 g
Weight per piece (excluding packing)	235.24 g
Customs tariff number	85389006
Country of origin	DE

Compatible products

Accessories

PHOENIX CONTACT S.A de C.V.

Lago Alberto No. 319 - Piso 9, Colonia Granada, Alcaldía Miguel Hidalgo, México, Ciudad de México, C.P. 11520

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
