HC-ADV-B10-SHFH-2STM20-EEE
-
Housing
1408737

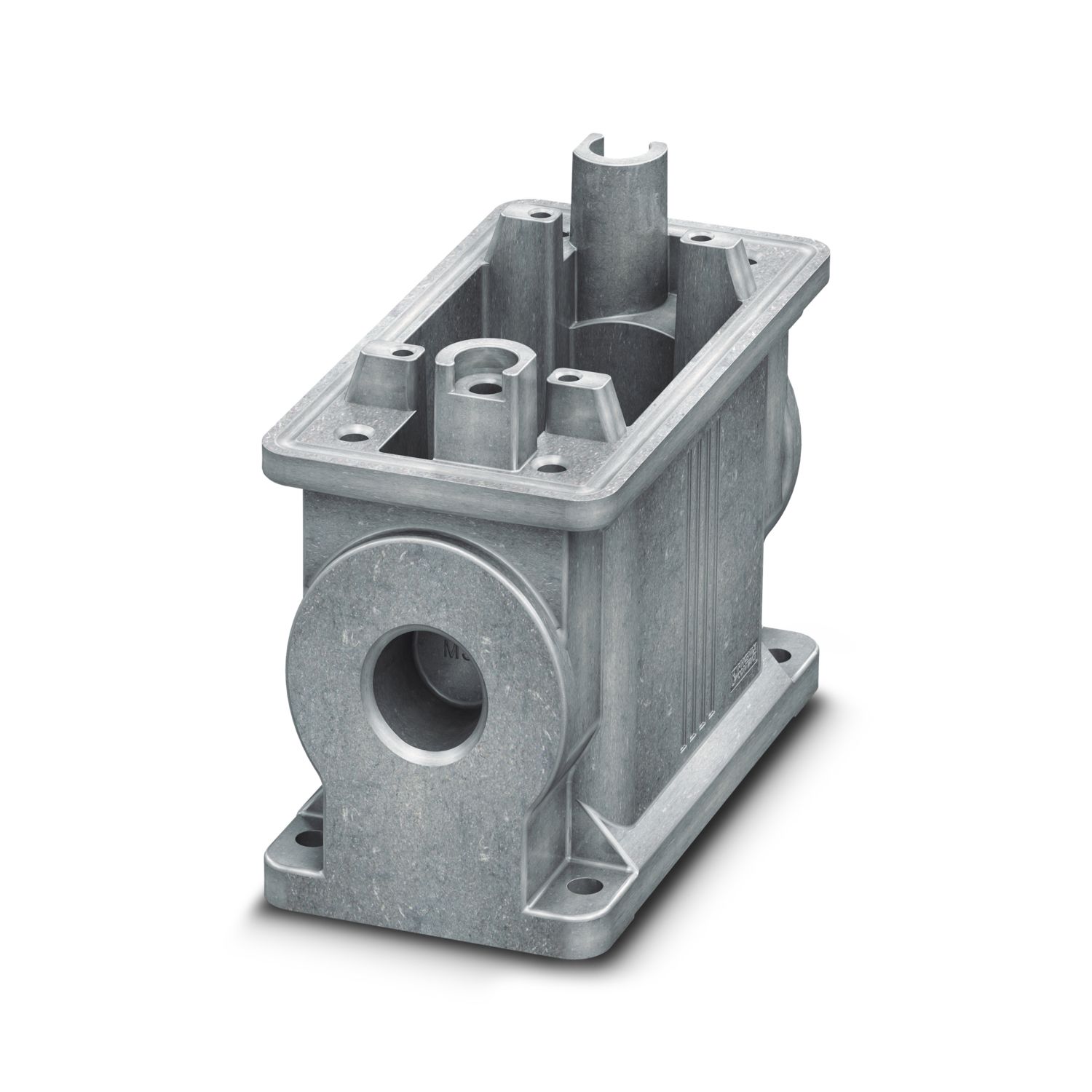

HEAVYCON ADVANCE B10 box mounting base, for M6 screw locking, salt-water-resistant aluminum, with 2 x M20 thread, without surface coating
Product details
| General | For contact inserts HC-B10, BB18, DD42, M, K8/24 |
| Product type | Housing with screw locking |
| Housing type | Surface mounting housing |
| Application | Offshore |
| Type | B10 |
| No. of cable outlets | 2 |
| Type of the screw connection | 2x M20 |
| Shielded | yes |
| Cable outlet | lateral |
| Pg screw connection | none |
| Dimensional drawing |
|
| Width | 45 mm |
| Height | 68 mm |
| Length | 105 mm |
| Housing material | Die-cast aluminum, corrosion resistant |
| Housing surface material | uncoated |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP68 (0.2 bar/24 h) | |
| IP69K | |
| Enclosure rating (NEMA) | 4 (NEMA 250) |
| 4X (NEMA 250) | |
| 6P (NEMA 250) | |
| 12 (NEMA 250) | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Mechanical data | |
| Type of the screw connection | 2x M20 |
| Locking type | Nut |
| Assembly note | To ensure optimum shielding, any insulating powder coating must be removed from the housing support area on the control cabinet panel |
