SACC-CI-M12MSR-4CON-L90 THR RX - Flush-type connector

1238106

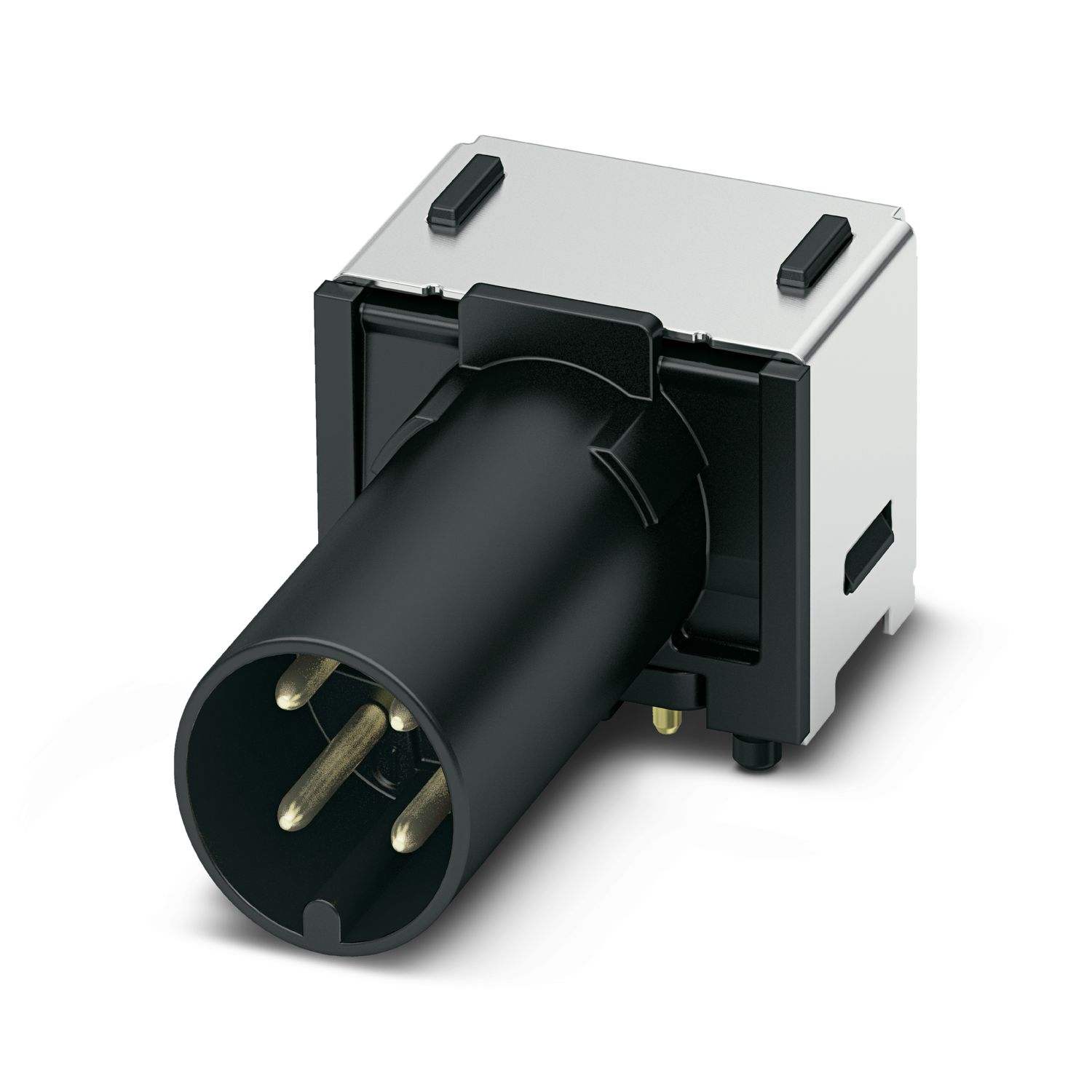

Flush-type connector, 4-position, Plug, angled, coding: A, Solder pins

Notes on operation	The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Order information:	Not compatible with SPEEDCON housings.

Number of positions	4
Coding	A
Insulation characteristics
Overvoltage category	II
Degree of pollution	3

Rated surge voltage	2.5 kV
Nominal voltage U_N	250 V
Nominal current I_N	4 A

Connection method	Solder pins

Flammability rating according to UL 94	V0
Contact material	CuZn
Contact surface material	Au
Contact carrier material	PA 6.6

Connection 1
Head design	Plug
Head cable outlet	angled
Coding	A

Mechanical data
Insertion/withdrawal cycles	> 100

Ambient conditions
Degree of protection	IP67
	IP67, in plugged and locked state
Ambient temperature (operation) (male connector/female connector)	-25 °C ... 105 °C (Plug / socket)
	-40 °C ... 105 °C (without mechanical actuation)

M12
Standard designation	M12 connector
Standards/specifications	IEC 61076-2-101

Item number	1238106
Packing unit	120 pc
Minimum order quantity	120 pc
Product key	ABQAHN
GTIN	4063151460846
Weight per piece (including packing)	9.166 g
Weight per piece (excluding packing)	22.22 g
Country of origin	DE

Compatible products

Accessories

Your advantages

Reduced mounting costs thanks to two-piece device connector

Supplied in tape-on-reel packing according to IEC 60286-3 for automated mounting

Easy device integration thanks to mechanical port screw connections with threaded attachment, press-in contour or direct integration in the front plate

PHOENIX CONTACT S.A de C.V.

Lago Alberto No. 319 - Piso 9, Colonia Granada, Alcaldía Miguel Hidalgo, México, Ciudad de México, C.P. 11520

Ask a question +52/55/1101-1380 ventas@phoenixcontact.com.mx

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
