EMG 37-LG
-
Electronics housing
2947051
Electronic housing, with snap foot for DIN rail EN 50022 for PCB insertion, without screw connection terminal blocks and cover
This product needs further products for operation.
Mandatory accessories
Product details
| Product type | Complete housing |
| Housing type | Component housing |
| Housing series | EMG |
| Product family | EMG |
| Type | Lower part of housing, removable cover optional |
| Number of positions | 14 |
| Pitch | 5 mm |
| Set comprises | 2940029 EMG 37-LG/SET |
| Type | Lower and upper part, with snap-on foot |

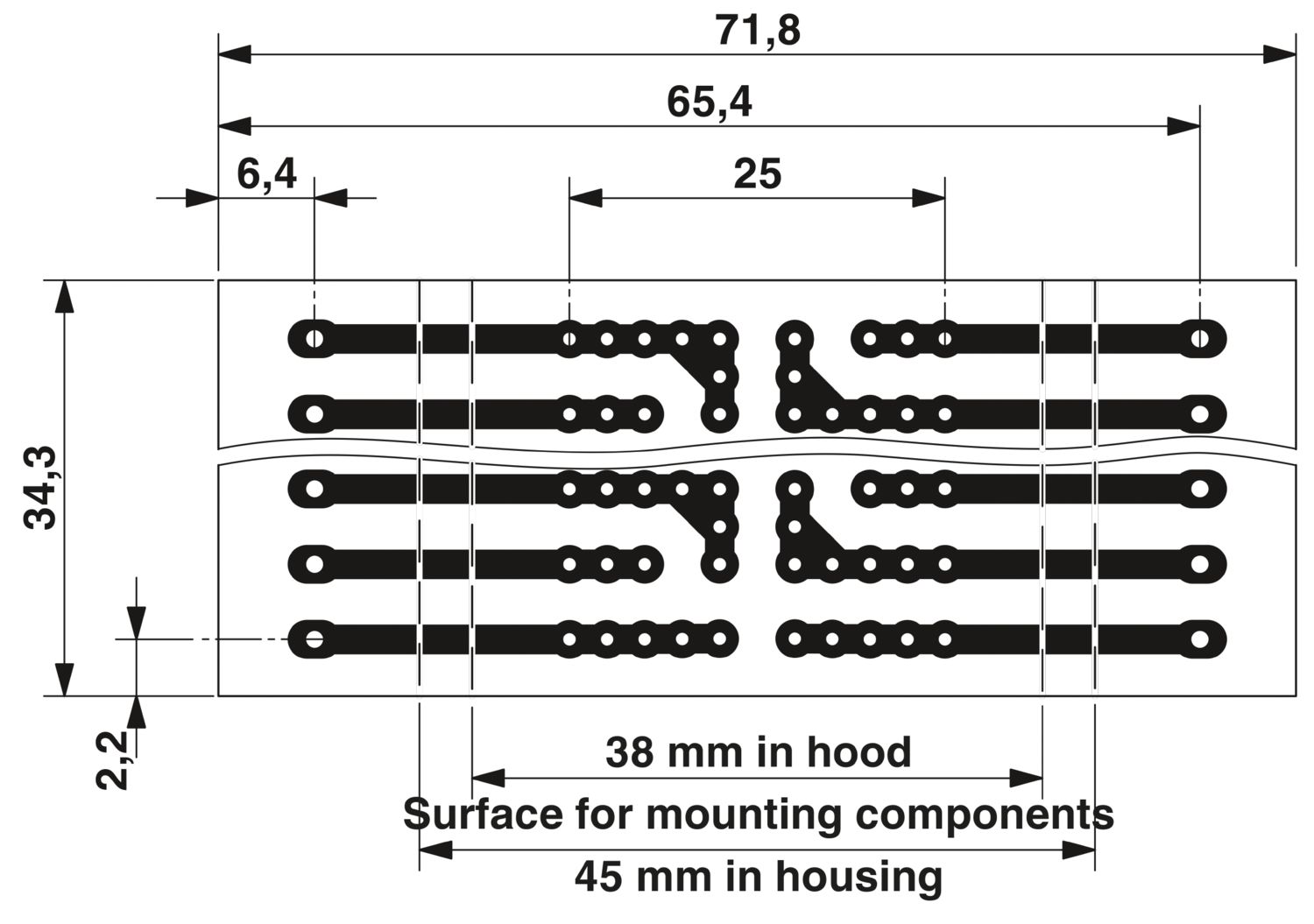

| Dimensional drawing |
|
| Width | 37.5 mm |
| Installed height | 47.5 mm |
| Height NS 35/7,5 | 55 mm |
| 83 mm | |
| 100 mm | |
| Depth | 75 mm |
| Length | 75 mm |
| Pitch | 5 mm |
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 |
| Housing material | Polycarbonate, glass-fiber-reinforced |
| Surface characteristics | untreated |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Mounting type | DIN rail mounting |
