CK2,5-ED-0,37BU AU - Crimp contact

1585647

Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 0.14 mm² ... 0.37 mm², AWG 22 ... 26

General	for HC-M-06..., HC-M-HV-, HC-M-08-, HC-M-20-, HC-A..., HC-B..., HC-BB..., HC-BBB..., and HC-HV contact carriers

Assembly note	At voltages of < 5 V and currents < 5 mA, gold-plated contacts are recommended.
	The quality of a crimp connection is determined by DIN EN 60352-2.

Product type	Crimp contact
Series	HC-M-06
	HC-M-HV
	HC-M-08
	HC-A
	HC-BB
	HC-B
	HC-HV
	HC-M-20
	HC-K
	HC-BBB
Type	Individual female contact
Contact material type	turned

Connection method	Crimp connection
Contact connection type	Socket
Connection technology	Crimp connection
Conductor cross section	0.14 mm² ... 0.37 mm²
Connection cross section AWG	22 ... 26

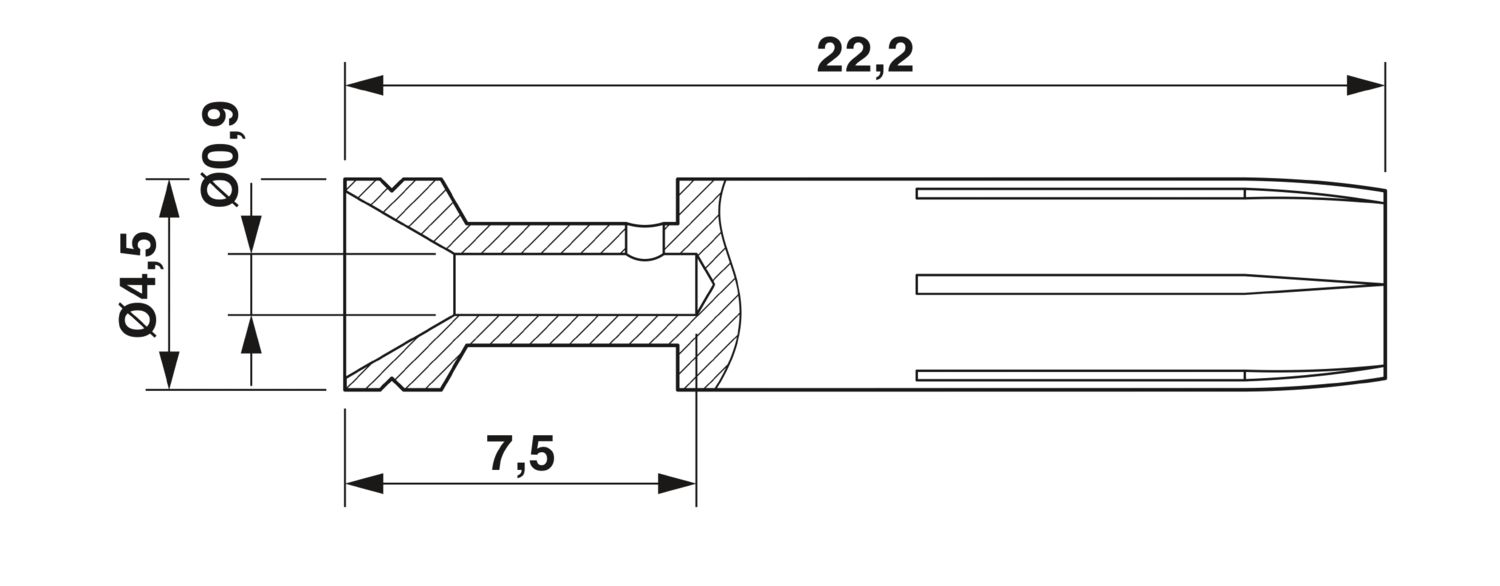

Stripping length of the individual wire	7.5 mm (9.5 mm at HC-M-HV...)

Contact material	Copper alloy
Contact surface material	gold-plated

Mechanical characteristics
Contact diameter	2.5 mm

Mechanical data
Insertion/withdrawal cycles	≥ 500

Ambient conditions
Ambient temperature (operation)	-40 °C ... 125 °C

Item number	1585647
Packing unit	100 pc
Minimum order quantity	100 pc
Sales key	02
Product key	AF7AID
Catalog page	Page 666 (C-2-2019)
GTIN	4046356291354
Weight per piece (including packing)	1.5 g
Weight per piece (excluding packing)	1.362 g
Customs tariff number	85366990
Country of origin	DE

Compatible products

Accessories

PHOENIX CONTACT S.A de C.V.

Lago Alberto No. 319 - Piso 9, Colonia Granada, Alcaldía Miguel Hidalgo, México, Ciudad de México, C.P. 11520

Ask a question +52/55/1101-1380 ventas@phoenixcontact.com.mx

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
