CC1,0-TS-1,00M AU - Crimp contact

1423645

Crimp contact, contact diameter: 1 mm, turned, Pin, contact material: CuZn, contact surface: Ni/Au, connection cross section: 0.34 mm² ... 1 mm², AWG 22 ... 18

Mounting type	Snap in

Product type	Crimp contact
Type	Individual male contact
Contact material type	turned

Connection method	Crimp connection
Contact connection type	Pin
Connection technology	Crimp connection
Conductor cross section	0.34 mm² ... 1 mm² (flexible)
Connection cross section AWG	22 ... 18 (flexible)
Stripping length of the individual wire	4 mm +0,5 mm
Conductor cross section flexible	0.34 mm² ... 1 mm²

Contact material	CuZn
Contact surface material	Ni/Au

Mechanical characteristics

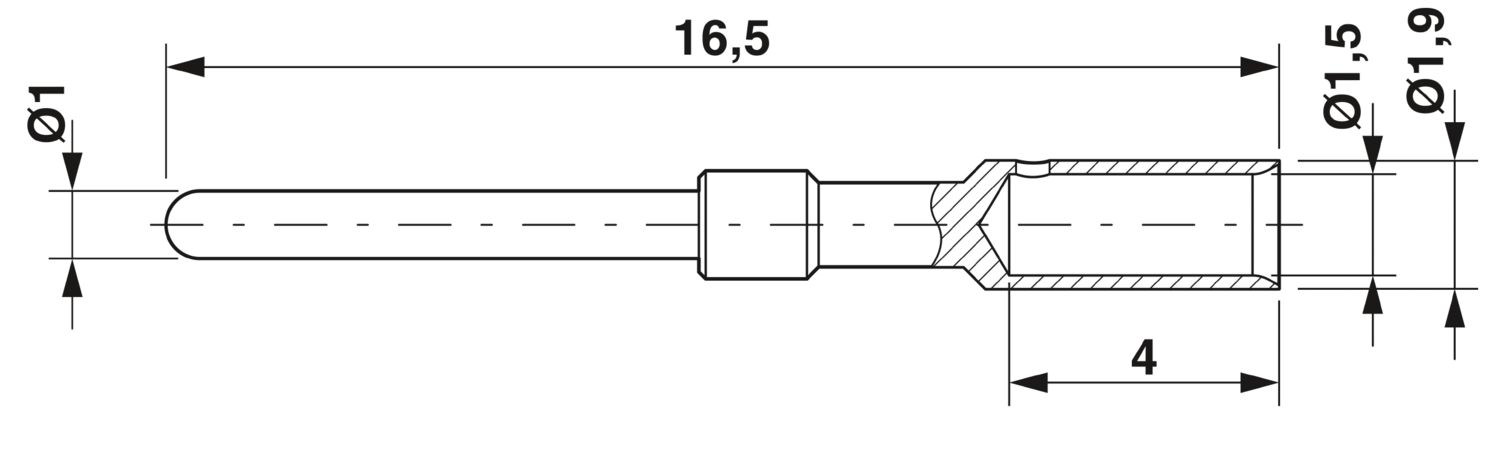

Contact diameter	1 mm

Mechanical data
Insertion/withdrawal cycles	≥ 100

Ambient conditions
Ambient temperature (operation)	-40 °C ... 85 °C

Item number	1423645
Packing unit	100 pc
Minimum order quantity	100 pc
Sales key	02
Product key	AF2CJN
Catalog page	Page 27 (C-2-2019)
GTIN	4055626363318
Weight per piece (including packing)	0.169 g
Weight per piece (excluding packing)	0.154 g
Country of origin	DE

Compatible products

Accessories

PHOENIX CONTACT S.A de C.V.

Lago Alberto No. 319 - Piso 9, Colonia Granada, Alcaldía Miguel Hidalgo, México, Ciudad de México, C.P. 11520

Ask a question +52/55/1101-1380 ventas@phoenixcontact.com.mx

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
EF3.0 Climate Change
CO2e kg	0.08 kg CO2e
