RC-09S2N120000X - Contact insert
RC-09S2N120000X
-
Contact insert
1240713
Product details
Expand all
Collapse all
Technical data
Product properties
Product type
Contact insert
Series
NC
RC
RM
TU
UC
Application
Signal

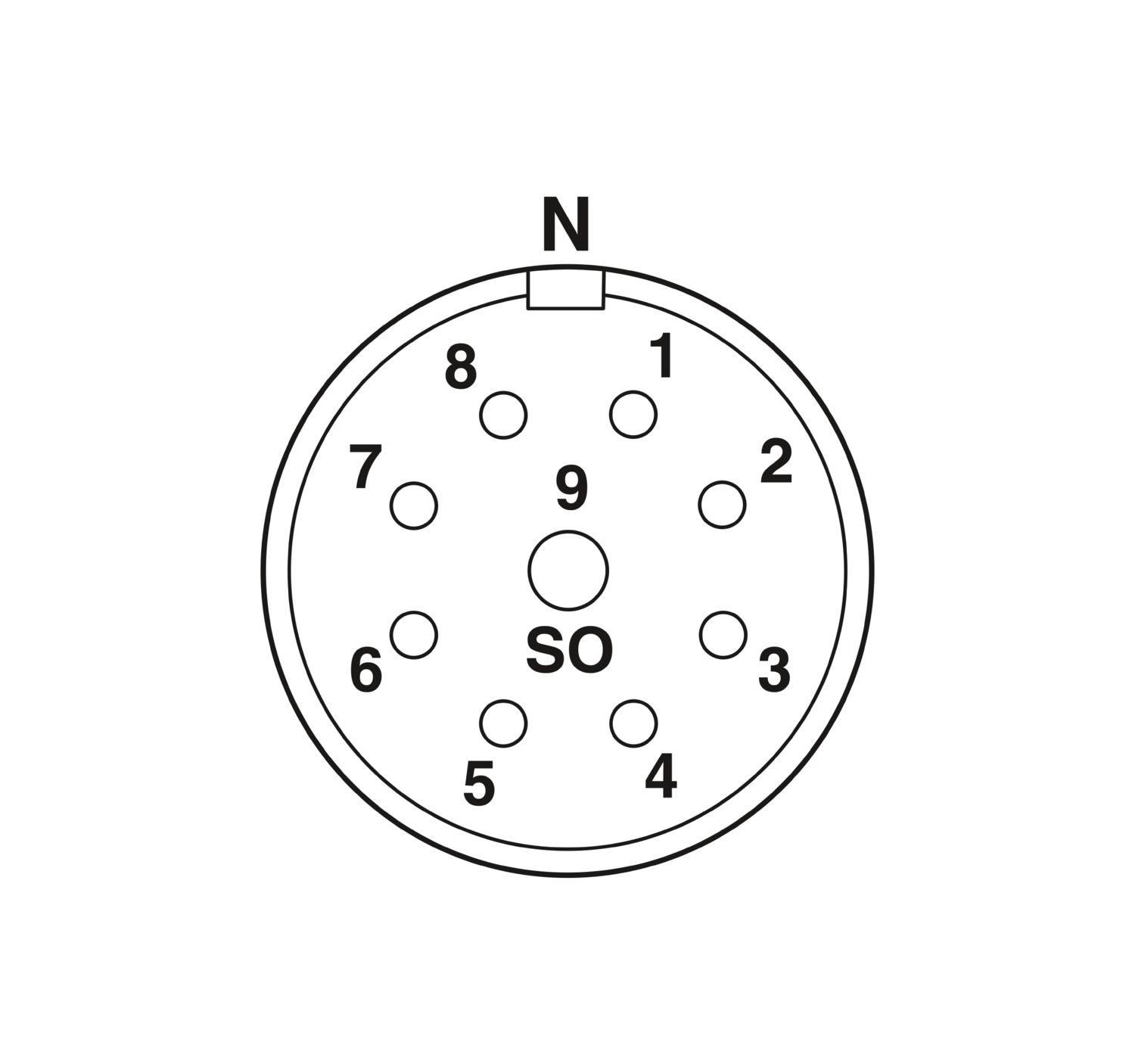

Number of positions
9
Connection profile
8+1
Coding
N
Thread type
M23
Electrical properties
Contact
Contact diameter
2 mm
Min. cross section
0.08 mm²
Max. cross section
2.5 mm²
Max. current
20 A
Nominal voltage U
N
48 V AC 74 V DC
Overvoltage category
III
Degree of pollution
3
Rated surge voltage
1.5 kV
Contact
Contact diameter
1 mm
Min. cross section
0.08 mm²
Max. cross section
1 mm²
Max. current
8 A
Connection data
Connection method
Solder cup
Connector
Direction of rotation
Counter direction
Mechanical properties
Mechanical data
Insertion/withdrawal cycles
50
Commercial data
Item number
1240713
Packing unit
10 pc
Minimum order quantity
10 pc
Sales key
02
Product key
ABRAFU
GTIN
4063151426286
Weight per piece (including packing)
7.36 g
Weight per piece (excluding packing)
4.574 g
Customs tariff number
85366990
Country of origin
DE
Classifications
ECLASS
ECLASS-11.0
27440223
ECLASS-12.0
27440223
ECLASS-13.0
27440223
ETIM
ETIM 9.0
EC003557
Approvals
EAC
Approval ID: 19060508
Environmental product compliance
EU RoHS
Fulfills EU RoHS substance requirements
Yes
(No exemptions)
China RoHS
Environment friendly use period (EFUP)
EFUP-E
No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)
No substance above 0.1 wt%
