Contact insert, number of positions: 6+PE, size: B6, Pin, Screw connection, 200 V, 16 A, 1.5 mm2 ... 6 mm2

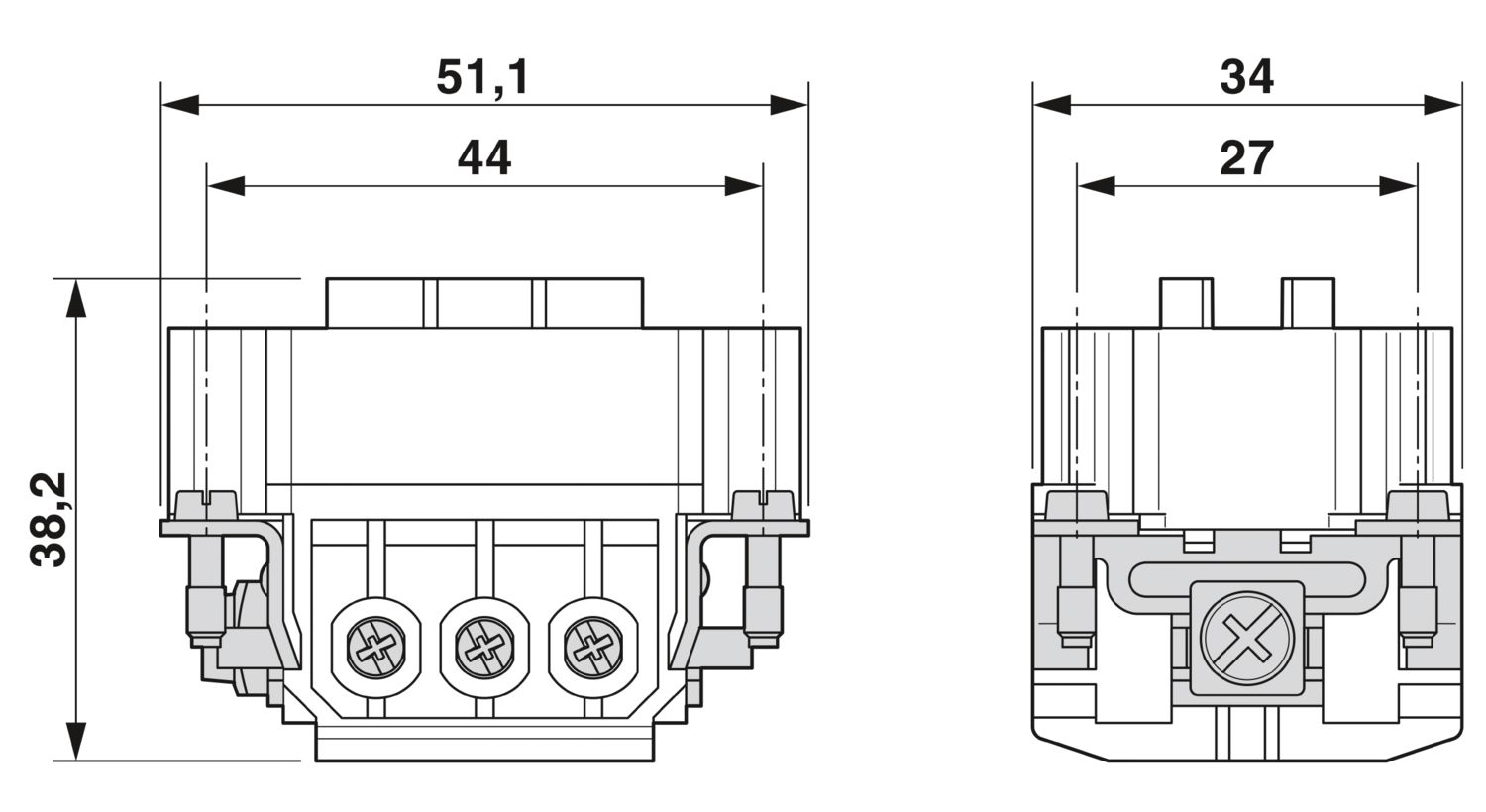

Product details
General
Please observe the circuit diagram
General
Use at least 1.5 mm² cables with a maximum conductor loop of 2 m. No open conductor loops permitted!
Product type
Contact insert with a fixed no. of positions
Type
B6
Number of positions
6
Connection profile
6+PE
Insulation characteristics
Overvoltage category
III
Degree of pollution
3
Mechanical characteristics
Contact diameter
2.5 mm
Connection technology
Connection technology
Screw connection
Conductor connection
Conductor cross section
1.5 mm² ... 6 mm²
Connection cross section AWG
16 ... 10
Tightening torque
1.2 Nm
Stripping length of the individual wire
10 mm
Rated voltage (III/3)
200 V (when plugged in)
20 V (Unplugged and during plugging)
Rated surge voltage
2.5 kV
Rated current
16 A (When plugged in)
5 A (Unplugged and during plugging)
Mechanical data
Insertion/withdrawal cycles
>= 500
Flammability rating according to UL 94
V0
Contact material
Copper alloy
Contact surface material
Ag
Contact carrier material
PC
Ambient conditions
Ambient temperature (operation)
-40 °C ... 125 °C (including heating up of contacts)
Item number
1541916
Packing unit
1 pc
Minimum order quantity
1 pc
Sales key
02
Product key
AF7ABC
GTIN
4067923014732
Weight per piece (including packing)
68.5 g
Weight per piece (excluding packing)
67.2 g
Customs tariff number
85366990
Country of origin
CN
ECLASS
ECLASS-13.0
27440205
ETIM
ETIM 9.0
EC000438
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
6(c)
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
