HC-Q 12-I-CT-M
-

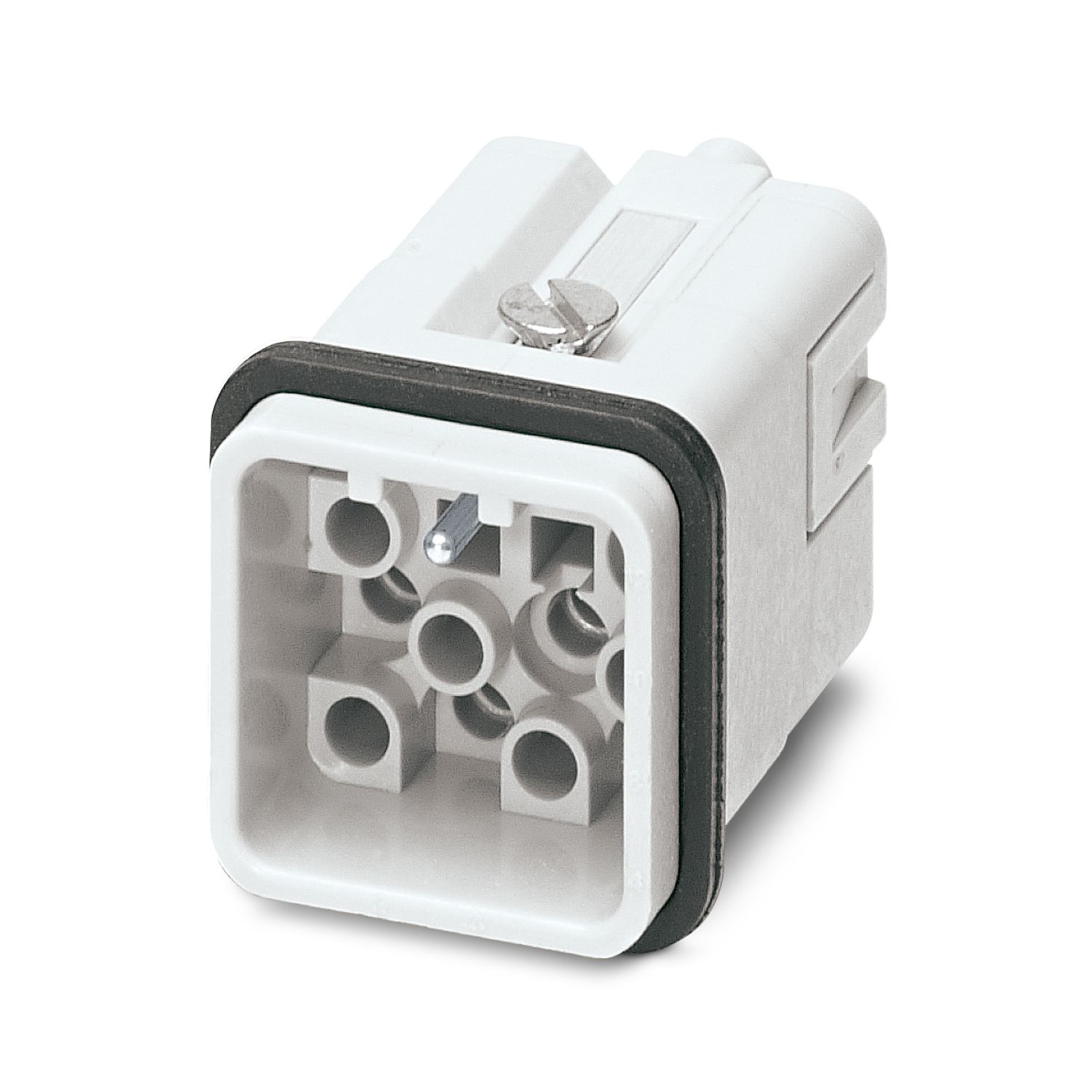

Contact insert
1409422
Contact insert, number of positions: 12+PE, size: D7, Pin, Crimp connection, 400 V, 12 A, 0.14 mm2 ... 2.5 mm2
Product details
| General | For D7 housing, CK1,6-ED crimp contacts (crimp contacts not supplied as standard) |
| Assembly note | Connectors may be operated only when there is no load/voltage. |
| Contact insert including IP65 sealing screw |
| Product type | Contact insert with a fixed no. of positions |
| Series | HC-Q |
| Type | D7 |
| Number of positions | 12 |
| Connection profile | 12+PE |
| Contact numbering | 1 - 12 |
| Contact material type | turned |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |

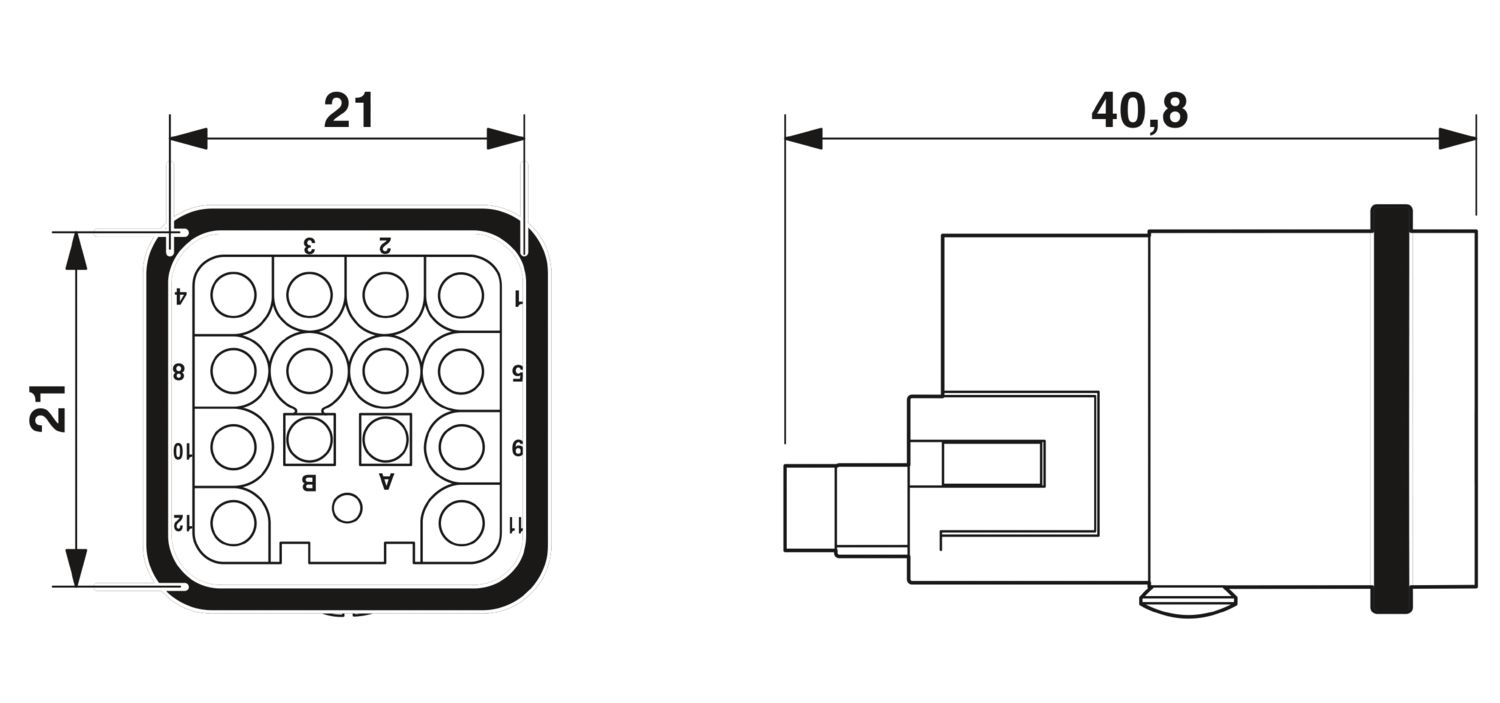

| Dimensional drawing |
|
| Height | 40.8 mm |
| Mechanical characteristics | |
| Contact diameter | 1.6 mm |
| Connection technology | |
| Connection technology | Crimp connection |
| Conductor connection | |
| Conductor cross section | 0.14 mm² ... 2.5 mm² |
| Connection cross section AWG | 26 ... 14 |
| Stripping length of the individual wire | 8 mm |
| 6 mm (2.5 mm²) | |
| Rated voltage (III/3) | 400 V |
| Rated surge voltage | 6 kV |
| Rated current | 12 A |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Contact material | Copper alloy |
| Contact surface material | Ag (alternatively Au) |
| Contact carrier material | PC |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
Your advantages
Can be keyed in seconds thanks to plastic profiles
16 coding options without loss of contact space
Contact insert including IP65 sealing screw
