HC-DCC4-I-CT-HW-F
-
Contact insert
1550584
Contact insert, number of positions: 4+PE, size: DCC06, Socket, Crimp connection, 690 V, 100 A, 6 mm2 ... 25 mm2, application: Power supply in data centers, tool-free Click-in mounting
Product details

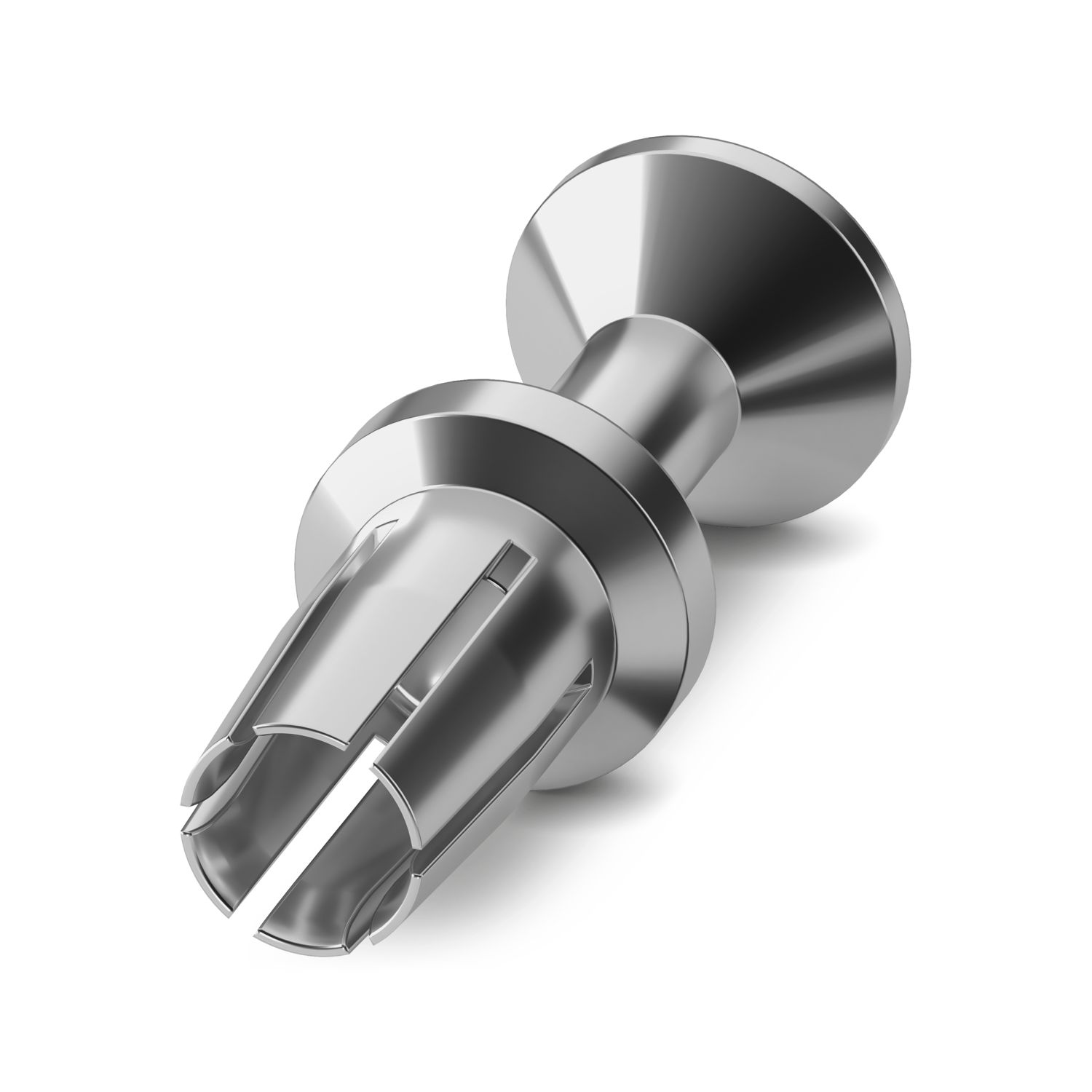

| General | Connectors may be operated only when there is no load/voltage. |
| Assembly note | To ensure correct use, installation in housing with IP54 protection or better is required |
| Tool-free snap-in into the plastic housings of the HC-DDC06 series |
| Product type | Contact insert with a fixed no. of positions |
| Series | HC-DCC |
| Application | Power supply in data centers |
| Number of positions | 4 |
| Connection profile | 4+PE |
| Contact material type | turned |
| Shielded | no |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Dimensional drawing |
|

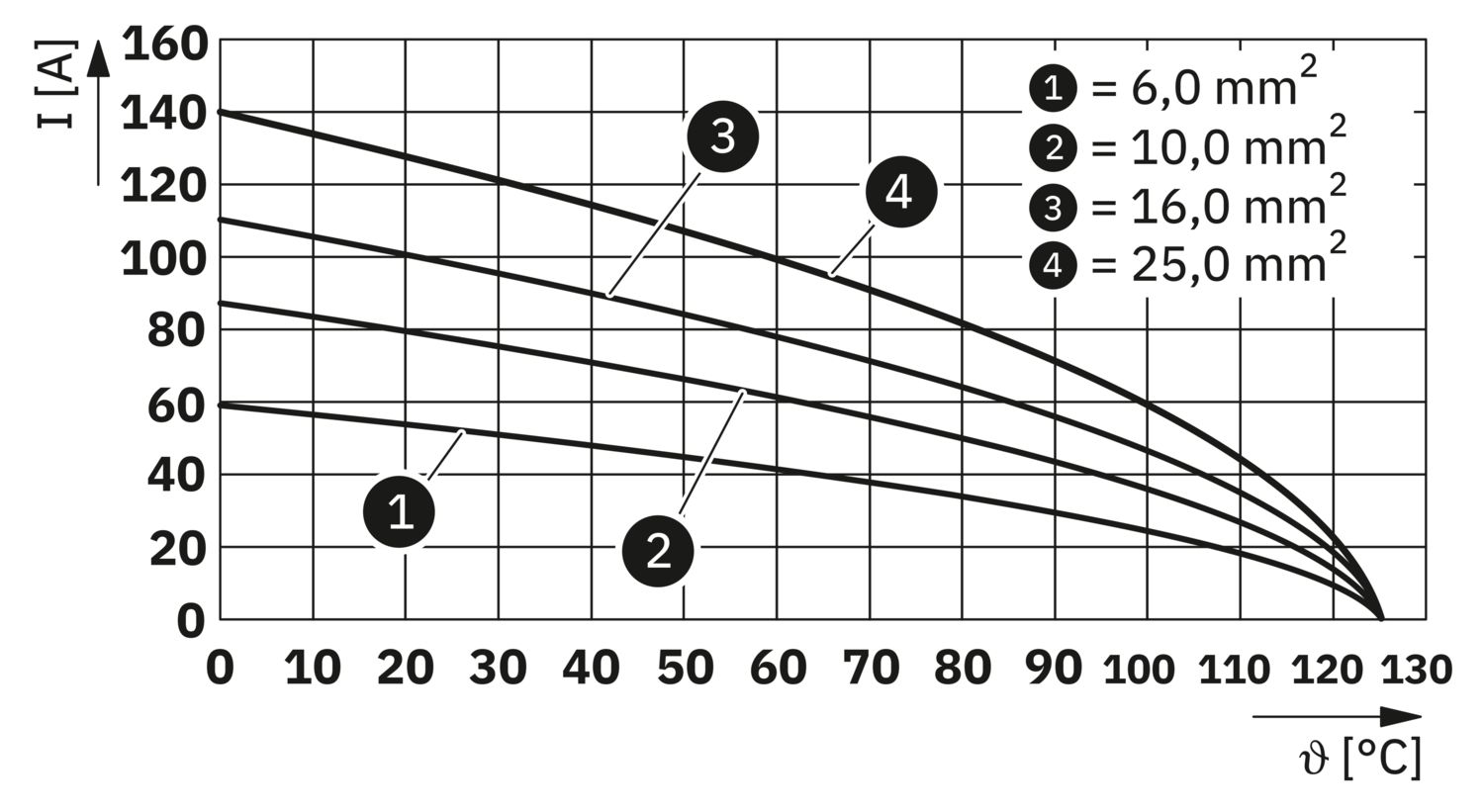

| Width | 35.1 mm |
| Height | 48.7 mm |
| Length | 54.2 mm |
| Mechanical characteristics | |
| Contact diameter | 6 mm |
| Connection technology | |
| Connection technology | Crimp connection |
| Conductor connection | |
| Conductor cross section | 6 mm² ... 25 mm² |
| Connection cross section AWG | 10 ... 4 |
| Rated voltage (III/3) | 690 V |
| Rated surge voltage | 6 kV |
| Rated current | 100 A |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Flammability rating according to UL 94 | V0 |
| Contact material | Copper alloy |
| Contact carrier material | PA 6 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
Your advantages
Shock and vibration-resistant in accordance with DIN EN 61373
