VDE Zeichengenehmigung
Approval ID: 40059408cULus Listed
Approval ID: E468743| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| Only rigid conductors | 600 V | 20 A | - 14 | |
| multi-stranded with ferrule | 600 V | 20 A | - 14 |
IPD P 5P2,5 F GY
-
Connector
1088677
Connector, product family: IPD, connection method: Push-lock connection, number of positions: 4+PE, Socket, 0.5 mm2 ... 2.5 mm2, 600 V, 17.5 A, PA, light gray, coding: P, external cable diameter: 7 mm ... 11 mm and 11 mm ... 16 mm
This product needs further products for operation.
Mandatory accessories
Product details
| General | NOTE: Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties. |
| Product type | Installation connector |
| Product family | IPD |
| Number of positions | 5 |
| Connection profile | 4+PE |
| Position marking | 1, 2, 3, N, PE |
| Number of connections per position | 1 |
| Coding | P |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage (III/3) | 6 kV |
| Rated current | 17.5 A |
| Rated voltage (III/3) | 600 V |
| Nominal voltage UN | 600 V AC |
| 600 V DC | |
| Nominal current IN | 17.5 A |
| Connection technology | |
| Connection method On the field side | Push-lock connection |
| Conductor connection | |
| Conductor cross section flexibel | 0.5 mm² ... 2.5 mm² |
| Conductor cross section solid | 0.5 mm² ... 2.5 mm² |
| Conductor cross section with ferrule | 0.5 mm² ... 2.5 mm² |
| Connection cross section AWG | 20 ... 14 |

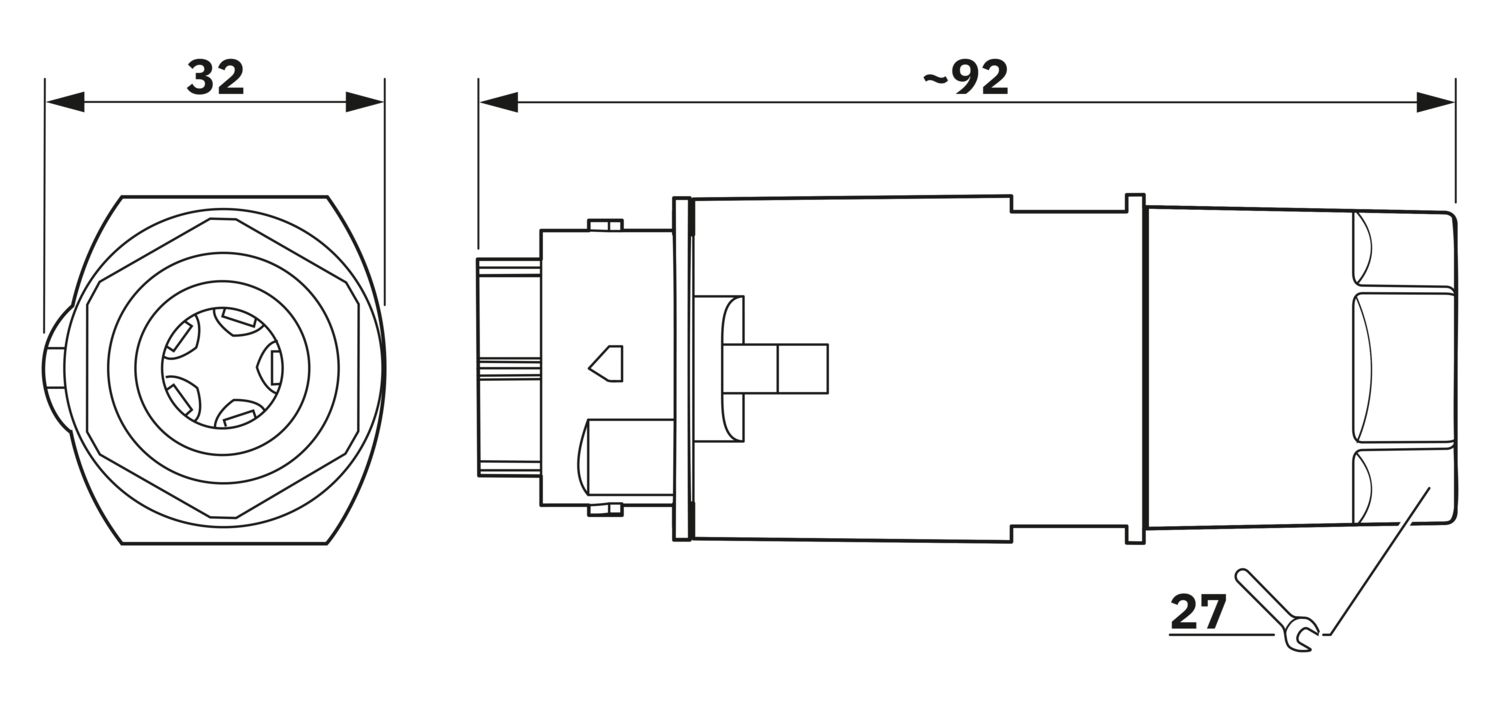

| Dimensional drawing |
|
| Width | 32.5 mm |
| Height | 32.1 mm |
| Length | 91.6 mm |
| Color (Housing) | light gray (RAL 7035) |
| Material Housing | PA |
| Material Seal | NBR |
| Flammability rating according to UL 94 | V0 |
| Contact material | Cu |
| Contact surface material | Ni/Ag/Sn |
| External cable diameter | 7 mm ... 11 mm |
| 11 mm ... 16 mm | |
| Position marking | 1, 2, 3, N, PE |
| Mechanical data | |
| Insertion/withdrawal cycles | 50 (IP66/IP68/IP69K) |
| 100 (IP66) | |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP68 (2 m / 24 h) | |
| IP69K | |
| Touch-proof when not plugged in (IP2X) | |
| Impact strength | IK07 |
| Ambient temperature (operation) | -30 °C ... 100 °C |
| Temperature when conductor connected | -5 °C ... 50 °C |
| Ambient temperature (storage/transport) | -30 °C ... 100 °C |
| Resistance to UV radiation | yes |
Your advantages
Easy distribution of power, as components are plugged directly
Simple, time-saving wiring in the field with Push-Lock connection
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
Secure, tool-free locking even in particularly difficult installation situations
Fast commissioning with preassembled cable assemblies
