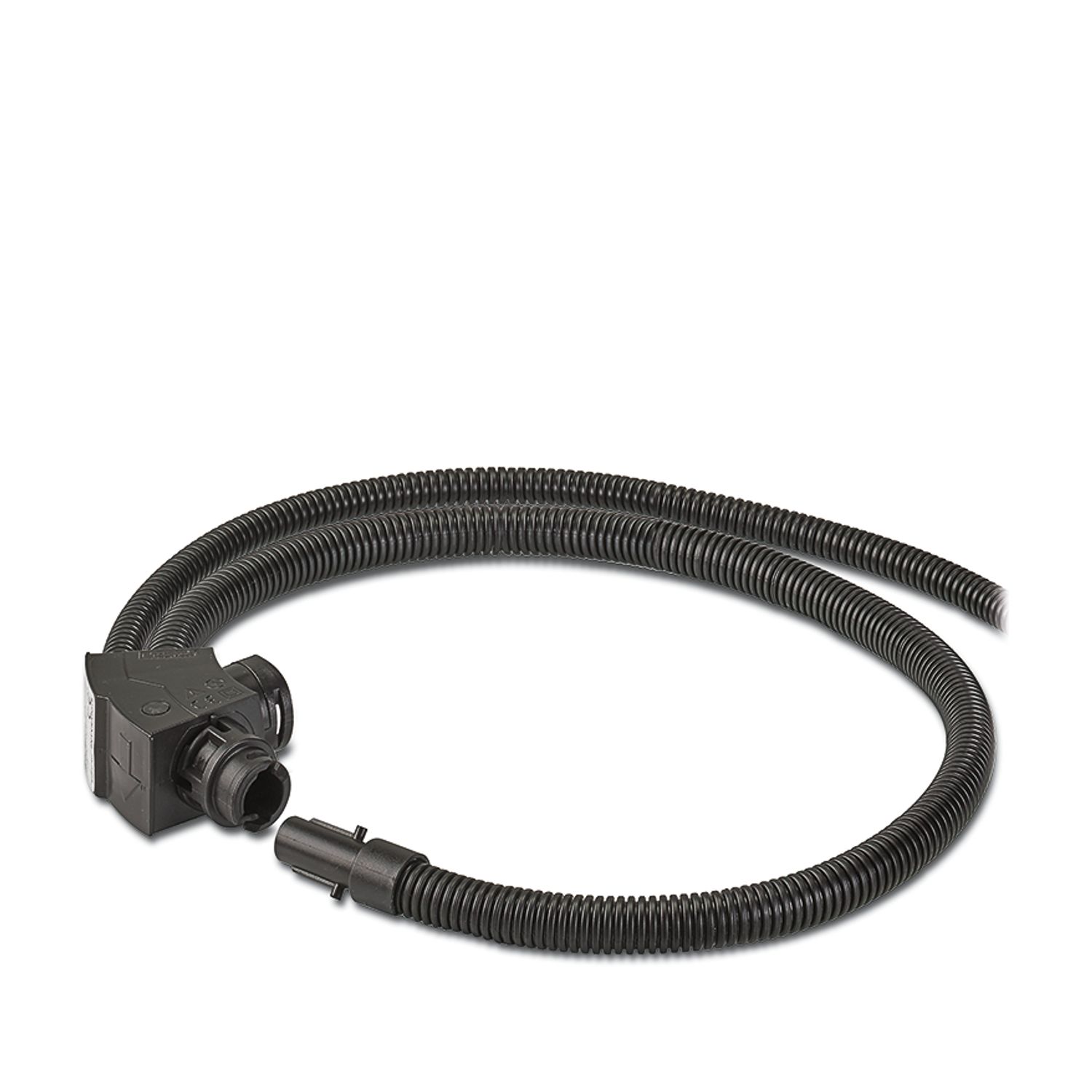

PACT RCP-D140-3M-UV - Coil - 1058046

El contenido que está viendo se ha elaborado a la medida de México. Ver contenido de Estados Unidos | Seleccionar otro país

Product type	Rogowski coil

Measuring coil
Conductor structure signal line	2x 0.22 mm (Signal (tinned))
	1x 0.22 mm (Shielding (tinned))
Insulation	double insulation
Rated insulation voltage	1000 V AC (rms CAT III)
	600 V AC (rms CAT IV)
Test voltage	10.45 kV DC (60 s)
Basic accuracy	<± 0.2 %
General
Converter type	UV-resistant Rogowski coil

Signal
Designation	Measuring coil
Output signal (at 50 Hz)	100 mV (no load, at 1,000 A)
Output voltage (in no-load operation)	V_OUT = M * dI/dt
Output voltage (sinusoidal, in no-load operation)	100 mV (V_OUT = 2 * π * M * f * I (M = 0.318 μH; example: At 50 Hz; I = 1,000 A))

Measuring coil
Length	450 mm
Diameter	8.3 mm ±0.2 mm
Measuring coil when installed
Diameter	140 mm
Signal line
Length	3 m

Housing material	PC
Coil material	Elastollan

Ambient conditions
Measuring coil degree of protection	IP67 (not assessed by UL)
Ambient temperature (operation) (Measuring coil)	-30 °C ... 80 °C (Measuring coil)
Ambient temperature (storage/transport)	-40 °C ... 80 °C (Measuring coil)
Altitude	< 2000 m
Permissible humidity (operation)	5 % ... 95 % (non-condensing)

Standards/regulations	IEC 61010-1
	IEC 61010-2-032

Item number	1058046
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	02
Product key	CMMA12
GTIN	4055626699882
Weight per piece (including packing)	222 g
Weight per piece (excluding packing)	222 g
Customs tariff number	90309000
Country of origin	IT
