Slotted cable sleeve Slotted sleeves for accommodating preassembled cables and lines with a diameter of 19 mm ... 20 mm, can be used in CES sealing frames.
CES-LRG-BK-20
-
Cable sleeve
0801631
Cable sleeve, large, no. of conductors: 1, type: Round cable, slotted, external cable diameter: 1x 19 mm ... 20 mm, material: NBR, color: black, length: 53 mm, width: 39 mm, height: 17 mm
Product details
| Product type | Cable sleeve |
| No. of conductors | 1 |

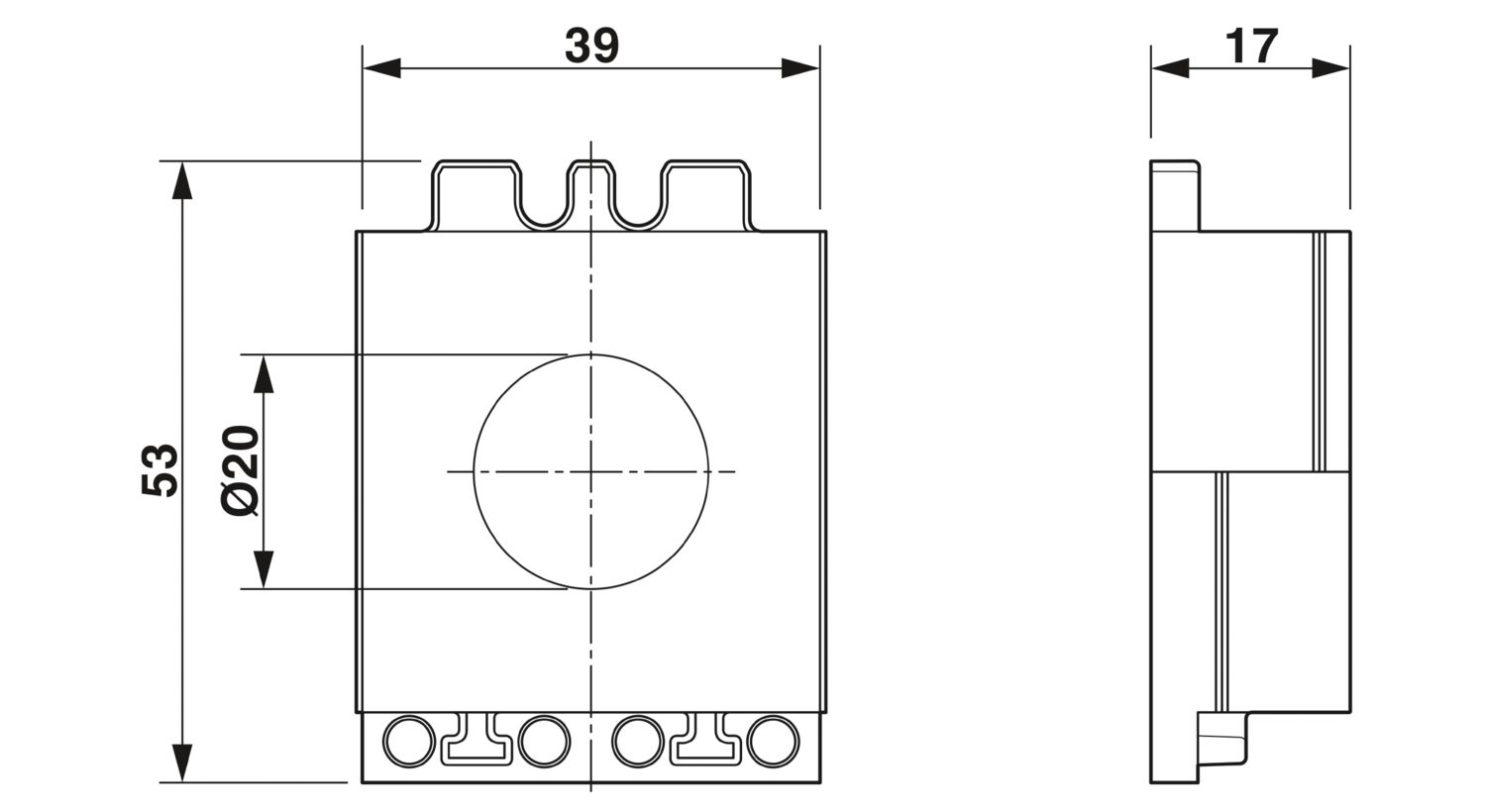

| Dimensional drawing |
|
| Width | 39 mm |
| Height | 17 mm |
| Length | 53 mm |
| Material | NBR |
| External cable diameter | 1x 19 mm ... 20 mm |
| Seal size | large |
| Design, Format | Round cable |
| Design, Cable seal | slotted |
| Ambient conditions | |
| Degree of protection | IP54 |
| Ambient temperature (operation) | -40 °C ... 125 °C (static) |
