CAC-MSTBC1808845/D
-
Cable
1084589

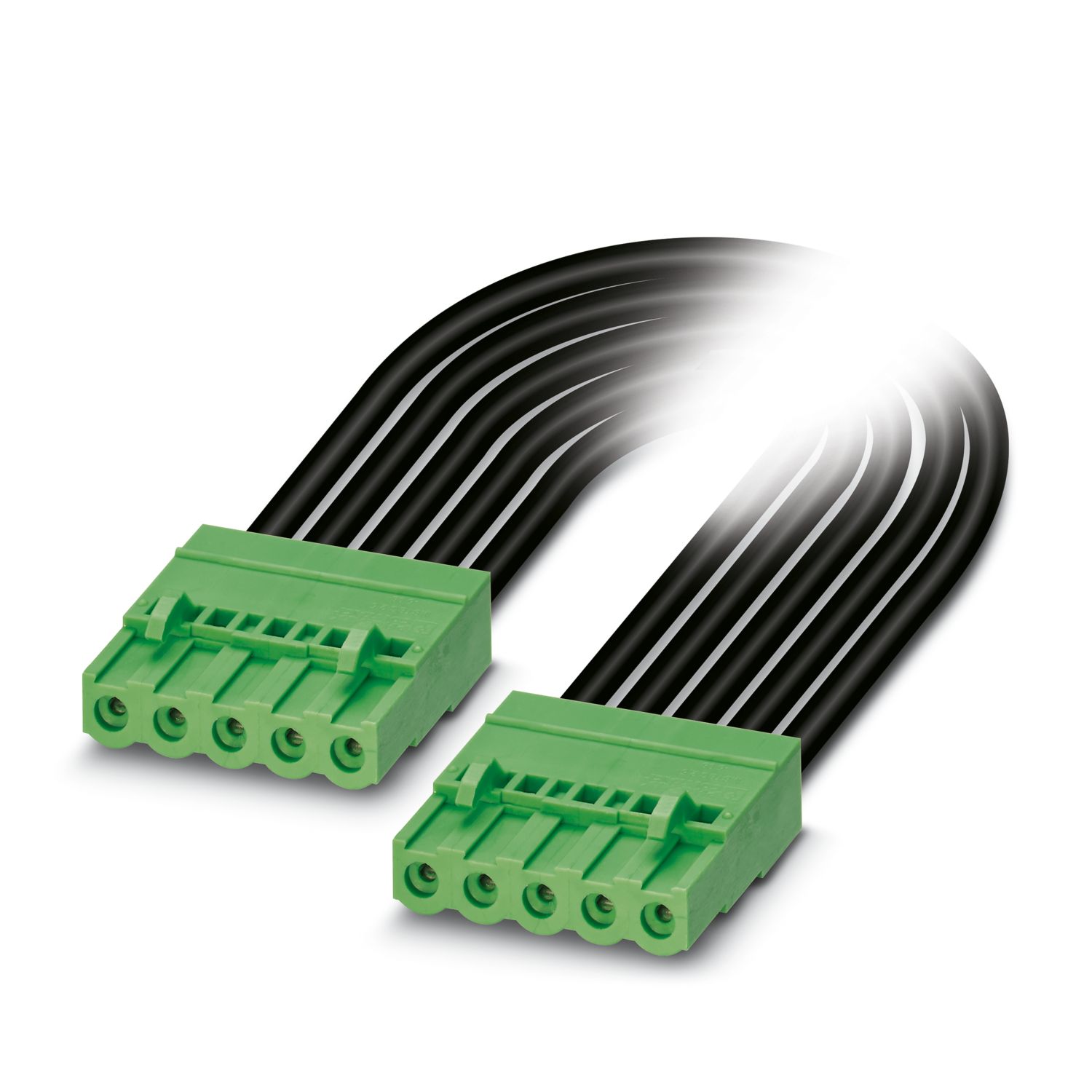

Assembled PCB connector, rated current: 12 A, cable length: Free input (0.1 ... 3.0 m), Head 1: 5-position , pitch: 5.08 mm , Color: black, Cable type:Individual litz wire, PVC, 16 AWG, black, Head 2: 5-position, pitch: 5.08 mm , Color: black, Cable type:Individual litz wire, PVC, 14 AWG, black, Individual litz wire, PVC, 16 AWG, black
Product details
| Product type | Assembled PCB connector |
| Product family | CC-Cabling KMAT |
| Product line | COMBICON Connectors Special |
| Number of positions | 5 |
| Pitch | 0.00 mm |
| Properties | |
| Nominal current IN | 12 A for use up to (1.5 mm² (AWG 16)) |
| Rated current / conductor cross-section | 12 A for use up to (1.5 mm² (AWG 16))/ |
| Notes on operation | In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. |
| Dimensional drawing |
|
| Pitch | 5.08 mm |
| Tensile strength of crimp connections | |
| Result | Test passed |
| Conductor cross-section/conductor type/tractive force setpoint/actual value | AWG 16 / ≥ 135 N |
| Insertion and withdrawal forces | |
| Result | Test passed |
| No. of cycles | 25 |
| Insertion strength per pos. approx. | 7 N |
| Withdraw strength per pos. approx. | 6 N |
| Ambient conditions | |
| Ambient temperature (storage/transport) | -30 °C ... 70 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (assembly) | -5 °C ... 105 °C |

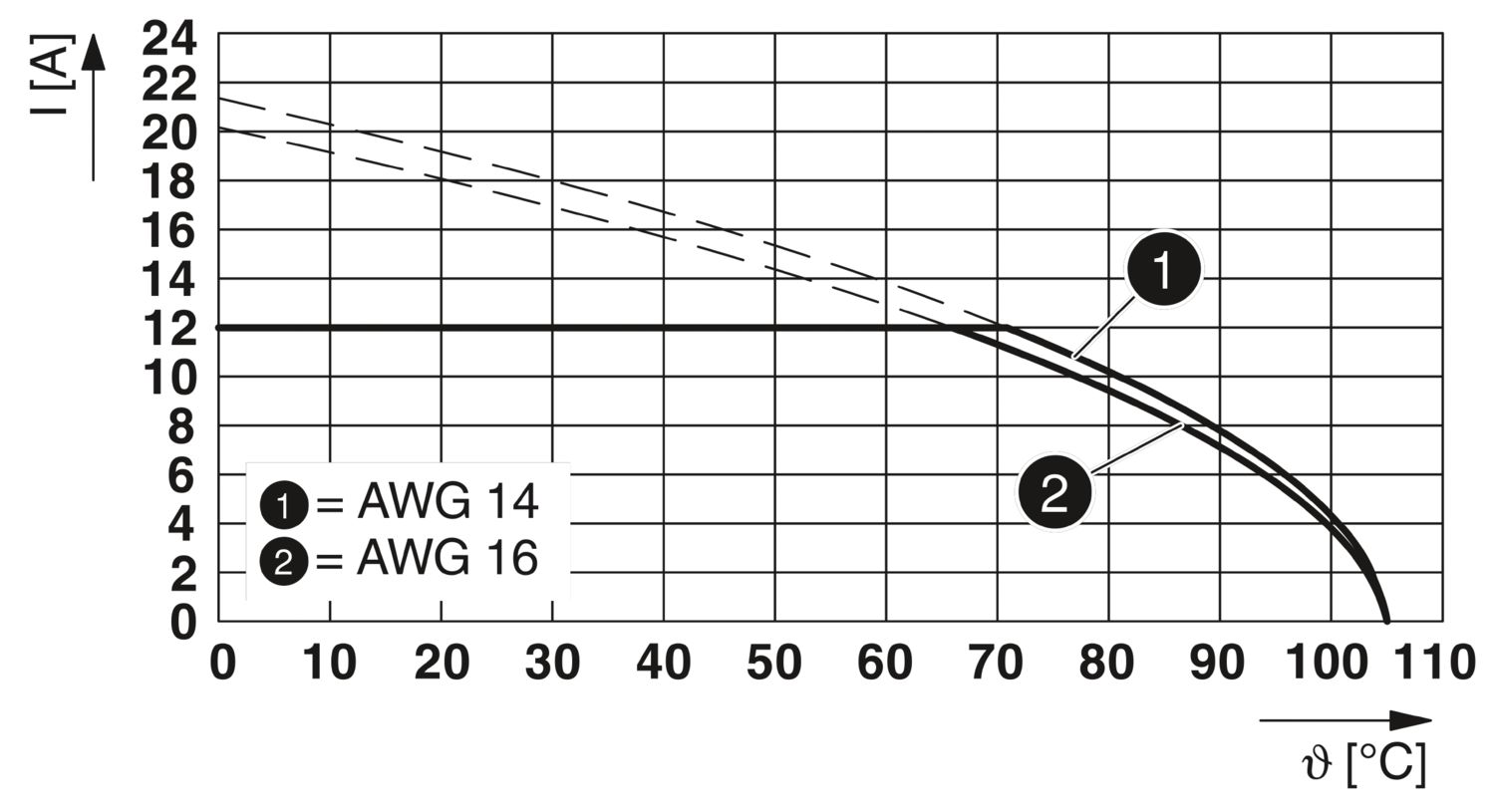

| Ambient temperature (installation) | -30 °C ... 105 °C (dependent on the derating curve) |
| Ambient temperature (mobile installation) | -10 °C ... 105 °C (dependent on the derating curve) |
| Connection 1 | |
| Range of articles | MSTBC 2,5/..-ST |
| Pitch | 5.08 mm |
| Number of positions | 5 |
| Color | green |
| Insulating material | PA |
| CTI according to IEC 60112 | 600 |
| Connection 2 | |
| Range of articles | MSTBC 2,5/..-ST |
| Pitch | 5.08 mm |
| Number of positions | 5 |
| Color | green |
| Cable length | Free input (0.1 ... 3.0 m) |
| UL AWM Style | 1569 |
| Shielded | no |
| Conductor structure signal line | 19x 0.30 mm |
| AWG signal line | 16 |
| Conductor material | Tin-plated Cu litz wires |
| Material wire insulation | PVC |
| Single wire, color | black |
| Nominal voltage, cable | 300 V |
| Test voltage | 1500 V |
| Ambient temperature (operation) | -30 °C ... 105 °C (cable, fixed installation) |
| UL AWM Style | 1569 |
| Shielded | no |
| Conductor structure signal line | 41x 0.25 mm |
| AWG signal line | 14 |
| Conductor material | Tin-plated Cu litz wires |
| Material wire insulation | PVC |
| Single wire, color | black |
| Nominal voltage, cable | 300 V |
| Test voltage | 3000 V |
| Ambient temperature (operation) | -30 °C ... 105 °C (cable, fixed installation) |
Compatible products
Your advantages
Crimping connection: vibration- and temperature-resistant assembly
Simple and safe: 100% electrically tested and assembled ready for use
Approval in accordance with UL standard “Wiring Harness Traceability Program”
