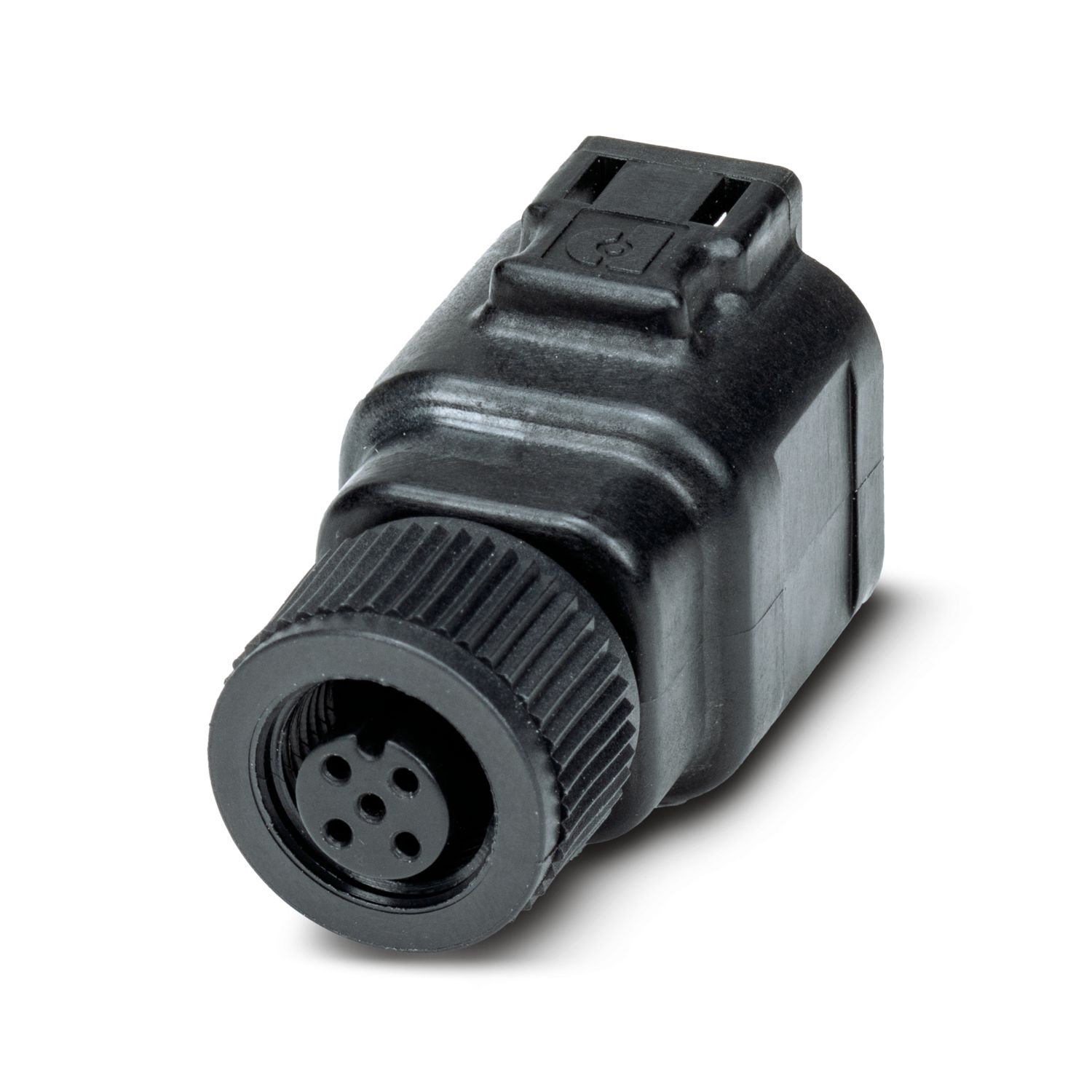

Adapter, 5-position, Plug straight DEUTSCH DT04-6P, on Socket straight M12, coding: A
Product details
Note on application
Sufficient strain relief at the connection point can prevent premature stress and wear. Utilize tie down accessories to eliminate bending and dynamic loads on the connector.
Product type
M8/M12 adapters
Number of positions
5
Coding
A
Insulation characteristics
Overvoltage category
II
Degree of pollution
3
Nominal voltage UN
48 V AC
60 V DC
Nominal current IN
4 A
Flammability rating according to UL 94
V0
Seal material
Viton
Material of grip body
GF nylon
Contact material
CuSn
Contact surface material
Ni/Au M12, Ni/Sn DT
Contact carrier material
GF nylon
Material for screw connection
Plastic
Standards/regulations
Chemical, fertilizer (UAN32), UV resistance
Connection 1
Type
Plug straight DEUTSCH DT04-6P
Number of positions
5
Connection 2
Type
Socket straight M12
Number of positions
5
Coding type
A
Mechanical data
Insertion/withdrawal cycles
≥ 100
Ambient conditions
Degree of protection
IP67
IP69K
Ambient temperature (operation)
-40 °C ... 105 °C
National Marine Electronics Association
Certificate
approved
Standard designation
M12 connector
Standards/specifications
IEC 61076-2-101
Standards/specifications
SAE J2030
Item number
1088173
Packing unit
1 pc
Minimum order quantity
1 pc
Sales key
02
Product key
AF1GGA
GTIN
4055626887739
Weight per piece (including packing)
14.15 g
Weight per piece (excluding packing)
14.15 g
Customs tariff number
85444290
Country of origin
US
ECLASS
ECLASS-13.0
27440106
ETIM
ETIM 9.0
EC002925
UNSPSC
UNSPSC 21.0
31251500
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
6(c)
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
