HC-STA-B32-BCSFD-PL-BK
-
Protective cover
1424850
Protective cover B32, for double locking latch, protective cover material: PA, height: 24.8 mm, seal: no, Standard, with lanyard
Product details
| Product type | Protective cover |
| Housing type | Protective cover |
| Application | Standard |
| Type | B32 |
| Retaining cord present | yes |
| Seal present | no |

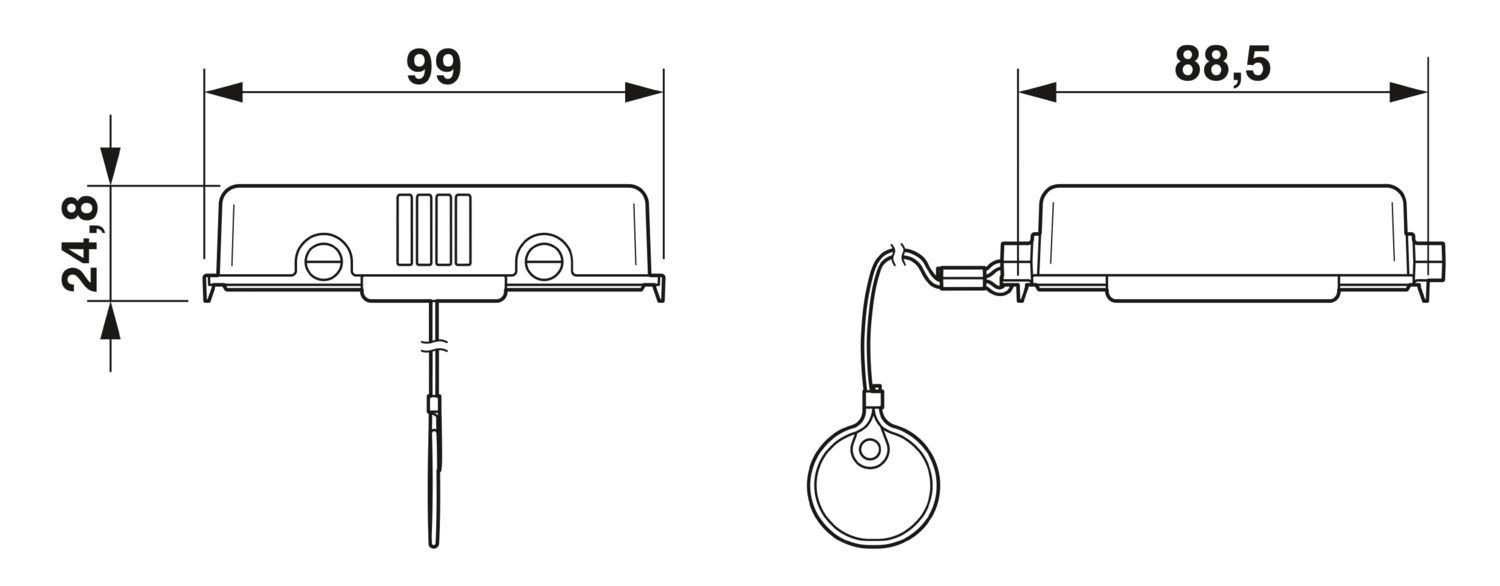

| Dimensional drawing |
|
| Width | 88.5 mm |
| Height | 24.8 mm |
| Length | 99 mm |
| Material Protective cover | PA |
| Material, protective cover | PA |
| Mechanical data | |
| Locking type | Pin |
| Ambient conditions | |
| Degree of protection | IP66 |
| Enclosure rating (NEMA) | 4 (UL 50e) |
| 4X (UL 50e) | |
| 12 (UL 50e) | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Assembly note | Plastic protective cover for short-term protection |
