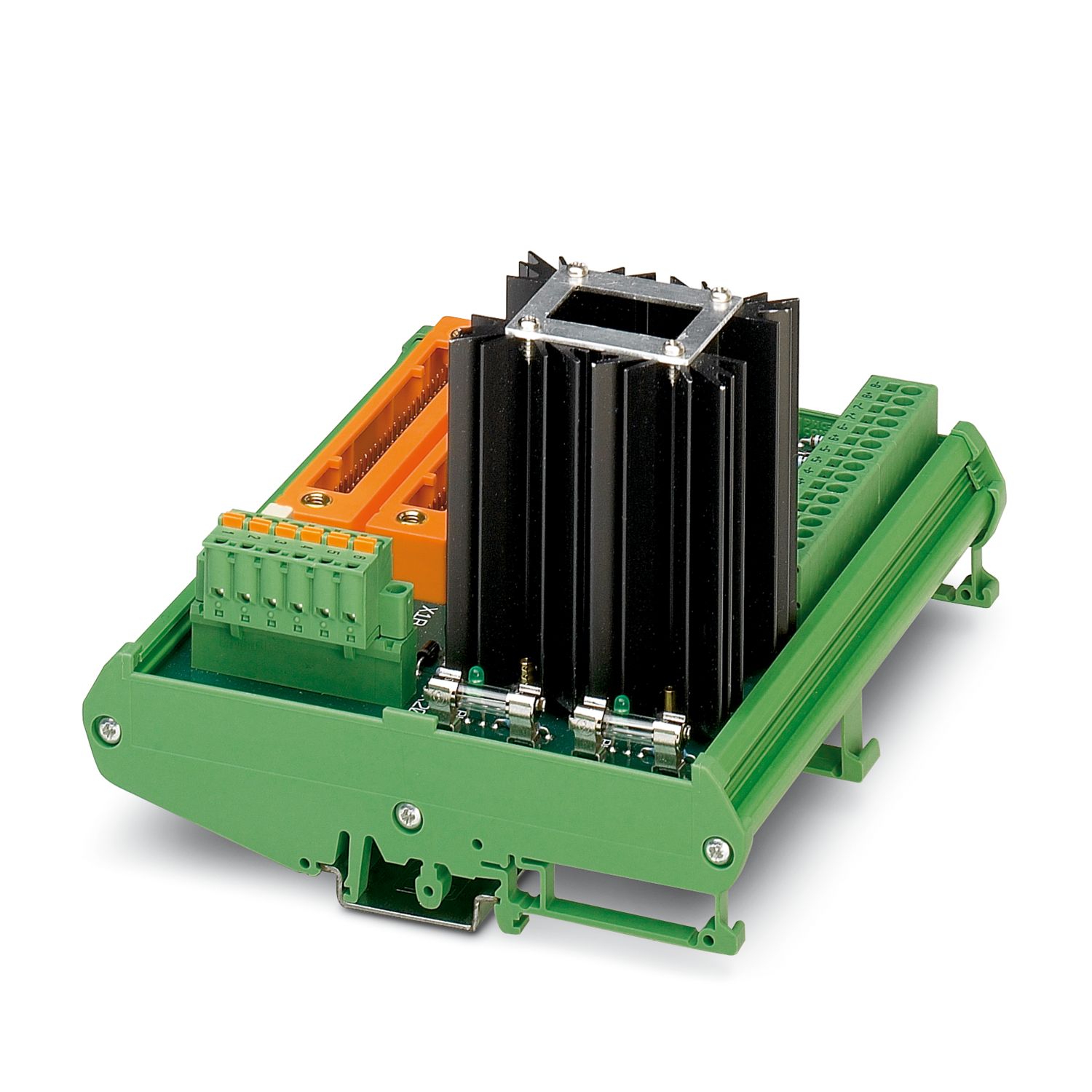

16-channel digital output module with spring-cage connection and redundant voltage supply. Suitable for Yokogawa SDV 531/-L card.
Product details
Product type
Interface module
Insulation characteristics: Air clearances and creepage distances
Overvoltage category
III
Pollution degree
2
Nominal voltage UN
30 V DC
Max. current carrying capacity per branch
600 mA
Max. total current of all branches
6.3 A
Air clearances and creepage distances
Rated insulation voltage
50 V
Rated surge voltage
0.8 kV (Basic insulation)
Supported controller YOKOGAWA ProSafe-RS
Suitable I/O card
SDV531L
Field level
Connection method
Spring-cage connection
Number of positions
16
Conductor cross section rigid
0.2 mm² ... 4 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 12
Controller level
Connection method
Yokogawa, KS compatible
Number of connections
2
Number of positions
50
Tightening torque
0.5 Nm
Supply
Connection method
Spring-cage connection
Number of positions
6
Conductor cross section rigid
0.2 mm² ... 2.5 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 12
Status display present
yes
Item dimensions
Width
152.5 mm
Height
126 mm
Depth
97 mm
Ambient conditions
Ambient temperature (operation)
-20 °C ... 55 °C
Air clearances and creepage distances
Standards/regulations
DIN EN 50178
Mounting type
DIN rail mounting
Mounting position
any
Notes on operation
Voltage monitoring on the module does not work in combination with upstream HESILED fuse terminal blocks with integrated LED display.
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
Item number
2319032
Packing unit
1 pc
Minimum order quantity
1 pc
Sales key
DK2A8N
Product key
DK2A8N
GTIN
4046356340649
Weight per piece (including packing)
619.2 g
Weight per piece (excluding packing)
603.7 g
Customs tariff number
85369010
Country of origin
DE
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
