HC-STA-RJ45GC-BWSC-ELAL - Connector set

HC-STA-RJ45GC-BWSC-ELAL - Connector set

1249560

Connector set, number of positions: 8, CAT6, material: Die-cast aluminum, salt water resistant, Gender changer

Product details

Expand all Collapse all

Set consists of

HC-STA-D07-BWSCM-EL-AL - Housing 1419250
HC-Q-I-RJ45 GC-F/F - Contact insert 1422590

Technical data

Notes

General	Connectors may be operated only when there is no load/voltage.

Product properties

Product type	Connector set
Series	HC-D
Application	Data
Type	D7
Sensor type	Ethernet
Number of positions	8
Connection profile	RJ45
Type	RJ45
Protective cover	yes
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Electrical properties

Rated voltage (III/3)	50 V
Rated surge voltage	0.8 kV
Rated current	1 A
Insulation resistance	100 MΩ
Nominal voltage U_N	50 V
Transmission characteristics (category)	CAT6

Interfaces

Signal type/category	Ethernet CAT6

Material specifications

Material Protective cover	PA
Flammability rating according to UL 94	V0
Seal material	NBR
Housing material	Die-cast aluminum, salt water resistant
Contact material	Copper alloy
Contact surface material	Au
Contact carrier material	PC
Locking latch material	PA

Cable/line

Signal type/category	Ethernet CAT6

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP66
Impact strength	IK06
Ambient temperature (operation)	-40 °C ... 70 °C

Mounting

Mounting type	Panel mounting

Commercial data

Item number	1249560
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	AF7AFX
Product key	AF7AFX
GTIN	4063151354855
Weight per piece (including packing)	45 g
Weight per piece (excluding packing)	45 g
Customs tariff number	85366990
Country of origin	CN

Classifications

ECLASS

ECLASS-13.0

27440113

ETIM

ETIM 9.0

EC002636

UNSPSC

UNSPSC 21.0

39121400

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Compatible products

Expand all Collapse all

Accessories

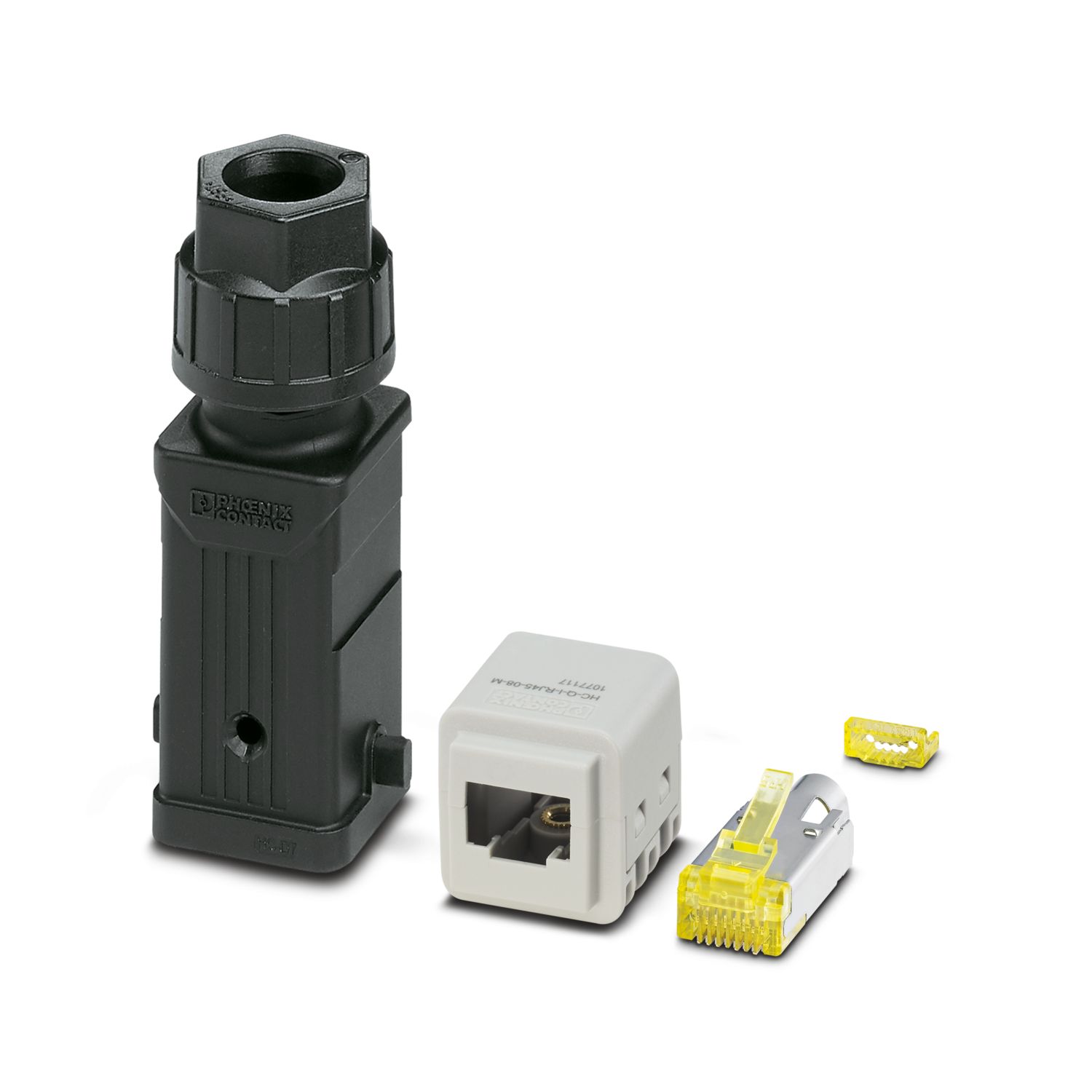

HC-STA-RJ45CT-HT-M20-PLRBK - Connector set 1249554

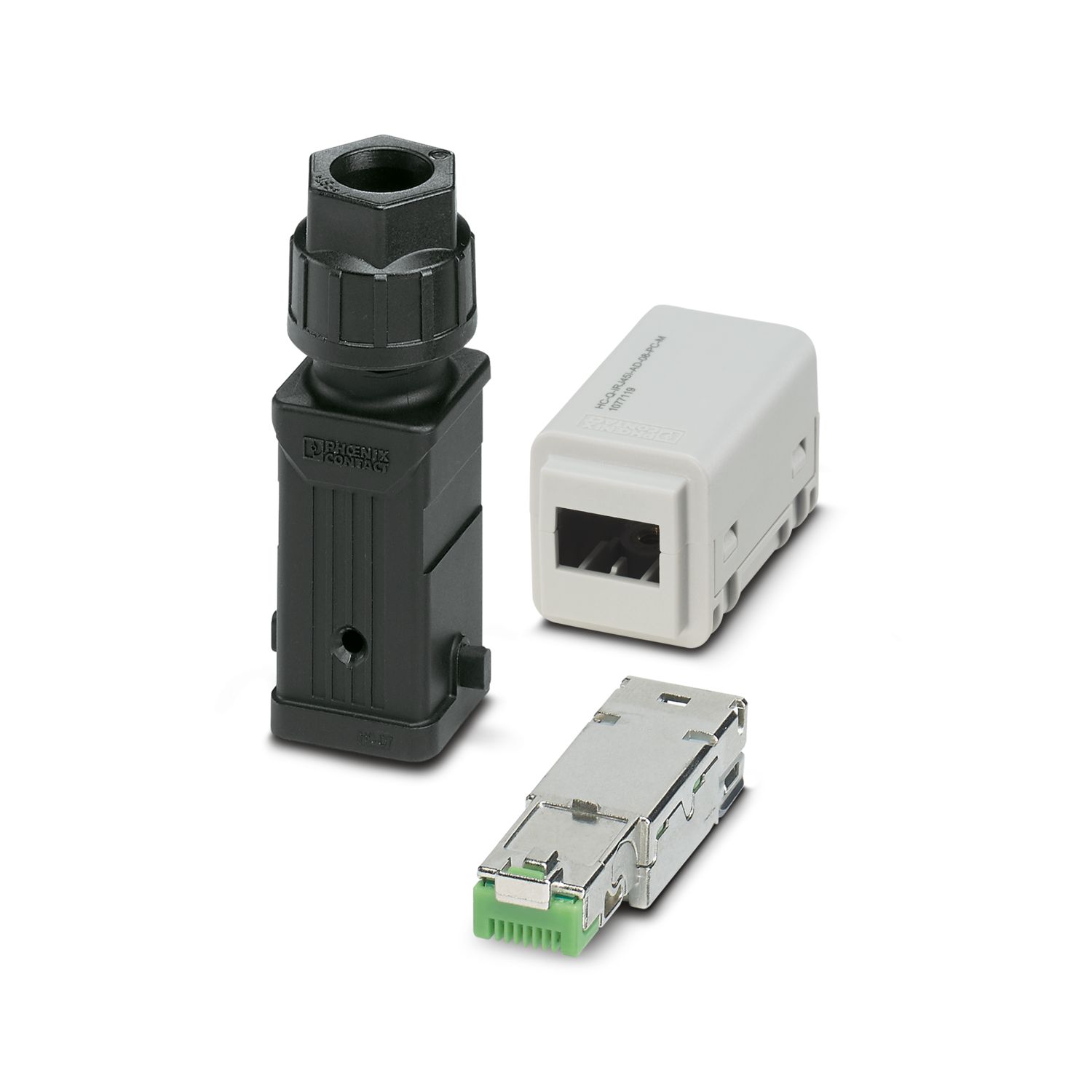

HC-STA-RJ45I-23-HT-M20-PLRBK - Connector set 1249555
HC-STA-RJ45PC-HT-M20-PLRBK - Connector set 1249556

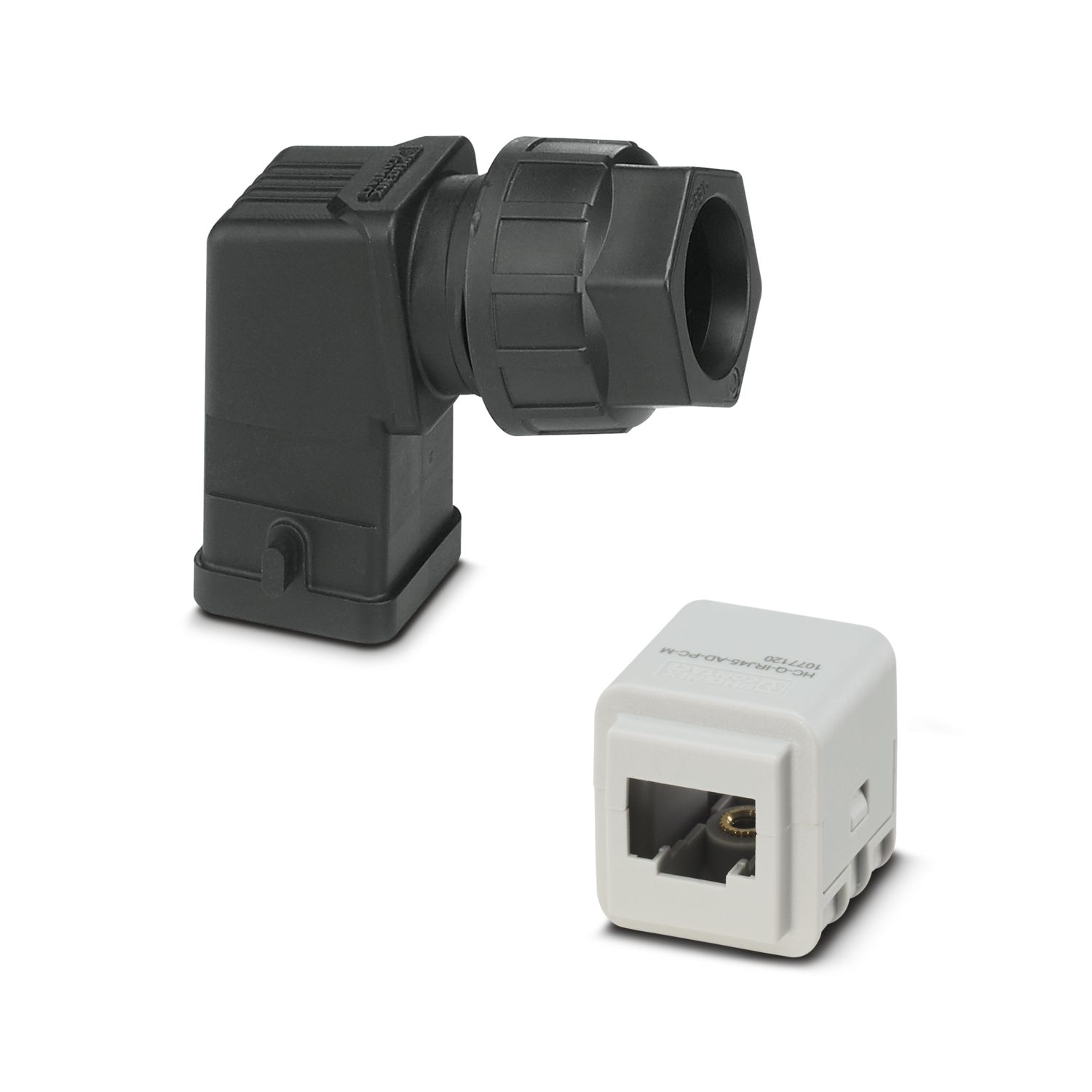

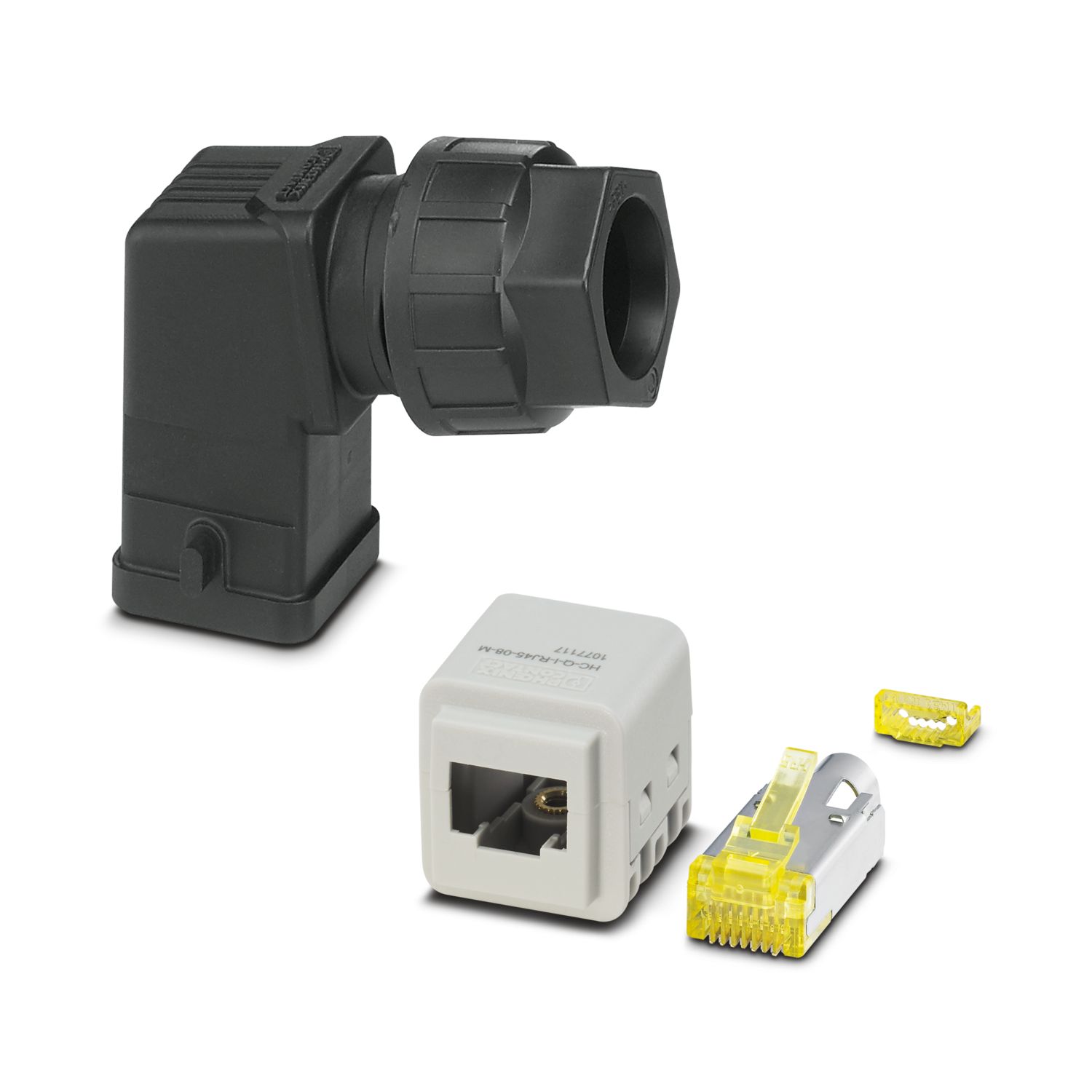

HC-STA-RJ45CT-HS-M20-PLRBK - Connector set 1249557
HC-STA-RJ45PC-HS-M20-PLRBK - Connector set 1249558
