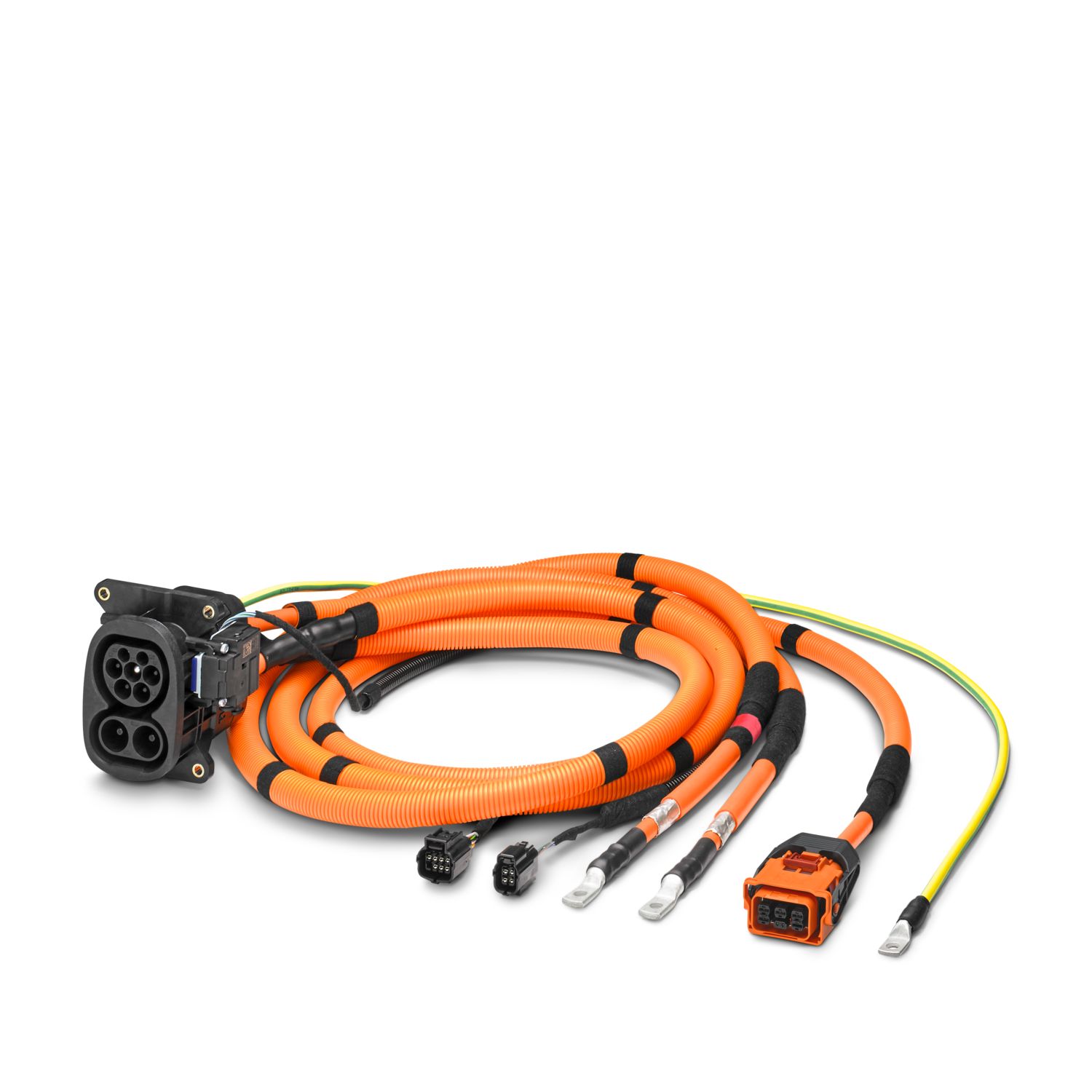

CHARX T2HBI24-3AC32DC250-WH2 - Vehicle charging inlet - 1739879

Notes

General	A protective cap is supplied as standard for the DC and AC contacts of the vehicle charging inlet.

Product properties

Product type	Vehicle charging inlet
Product family	CHARX connect universal
Technology	Combined Charging System
Application	for charging with alternating current (AC) and with direct current (DC)
Application		for installation in electric vehicles (EV)
Type	ready for installation
Type		With assembled cable end
Design	with HVA 630 male connector (AC) and M8 cable lug with narrow connection flange (DC) for subsequent mounting of cable glands
		with electrically conductive copper foil as a shield contact for improving the contact surface and reducing shield unbraiding
		corrugated pipe fixed using tape (on one side) to increase the resistance to abrasion
		with DC+ marking with red tape
Charging standard	AC/DC CCS Typ 2
Charging mode	Mode 2, 3, 4
Customer variations	On request, separate cable ends with various common connectors, customer-specific cable lengths, or even without color tape markings and specific components possible

Electrical properties

Type of signal transmission	Pulse width modulation with modulated Powerline communication in accordance with ISO/IEC 15118 / DIN SPEC 70121
Note on the connection method	Crimp connection, cannot be disconnected
Insulation resistance	> 200 MΩ
Coding	4.7 kΩ (between PE and PP)
Temperature measurement	DC contacts: 2x PT1000 (DIN EN 60751)
Temperature monitoring	AC contacts: PTC chain (DIN EN 60738-1)
Type of charging current	AC 3-phase
Charging power	26.6 kW
Charging current	32 A AC (3-phase)
Type of charging current	DC
Charging power	250 kW
Charging current	250 A
Type of charging current	DC Boost Mode
Charging power	up to 500 kW (Boost Mode, depending on the ambient conditions. For detailed information, see the packing slip in the download area for this item.)
Charging current	up to 500 A
Power contact
Number	7 (L1, L2, L3, N, PE, DC+, DC-)
Rated voltage	480 V AC
Rated voltage		1000 V DC
Rated current	32 A AC
Rated current		250 A DC
Signal contact
Number	2 (CP, PP)
Rated voltage	30 V AC
Rated current	2 A
Temperature sensors (PTC chain)
Sensor type	PTC chain
Standards/regulations	DIN EN 60738-1
Attachment point	Sensor for the AC contacts
Measuring range_resistance	790.00 Ω ... 1420.00 Ω
Resistance	max. 1280 Ω ±5 K
Recommended measured current	≤ 1 mA (U_max= 16 V DC)
Ambient temperature	-40 °C ... 130 °C (Operation)
Temperature sensors (Pt 1000)
Sensor type	Pt 1000
Standards/regulations	DIN EN 60751
Attachment point	2 sensors for the DC contacts
Locking actuator
Locking actuator	24 V, 4-pos.
Locking actuator		Right position
Possible power supply range at the motor	22 V ... 26 V
Maximum voltage for locking detection	30 V
Typical motor current for locking	0.05 A
Reverse current of the motor	max. 0.5 A
Max. dwell time with reverse current	1 s
Recommended adaptation time	600 ms
Pause time after entry or exit path	3 s
Service life insertion cycles	> 10000 load cycles
Lock recognition	available
Mechanical emergency release	available
Ambient temperature (operation)	-30 °C ... 50 °C

Dimensions

Vehicle charging inlet
Width	108 mm
Height	140.25 mm
Depth	128.4 mm
Bore dimensions
Width	117.65 mm
Height	90 mm
Depth	117.65 mm

Material specifications

Color (Housing)	black (9005)
Color (Mating face)	black (9005)
Material (Housing)	Plastic
Material (Contact surface)	Silver

Cable/line

Cable length	approx. 2 m
Cable type	Single wires
Single-core wires for AC
Cable length	2088 mm
Cable structure	4 x 6 mm²
Single wire, material	Silicone
Single wire, color	OG
External cable diameter	14.70 mm ±0.2 mm
Cable resistance	≤ 3.2 Ω/km
Cable end connection	HVA 630 (TE)
Single-core wires for DC
Cable length	2052 mm
Cable structure	2 x 95 mm²
Single wire, material	Silicone
Single wire, color	OG
External cable diameter	20.60 mm ±0.3 mm
Cable resistance	≤ 0.196 Ω/km
Cable end connection	M8 tubular cable lug (KRFS95-8NS, Elpress)
Single-core wire for PE
Cable length	2031 mm
Cable structure	1 x 25 mm²
Single wire, material	Silicone
Single wire, color	GN/YE
External cable diameter	8.60 mm ±0.1 mm
Cable resistance	≤ 0.743 Ω/km
Cable end connection	M8 tubular cable lug (KRF25-8NS, Elpress)
Note on connection	with IPX7 for longitudinal water tightness
Single-core wires for locking actuator
Cable length	500 mm ±50 mm
Cable structure	4 x 0.5 mm²
Single wire, material	PVC
Single wire, color	BU/RD, BU/GN, BU/YE, BU/BN
External cable diameter	1.60 mm ±0.20 mm
Cable resistance	≤ 37.1 Ω/m
Cable end connection	4p-Econoseal (TE)
Single-core wires for PTC temperature sensors
Cable length	1036 mm
Cable structure	2 x 0.5 mm²
Single wire, material	PVC
Single wire, color	BN/GY
Single wire, color		BN/YE/GN
External cable diameter	1.60 mm ±0.20 mm
Cable resistance	≤ 37.1 Ω/m

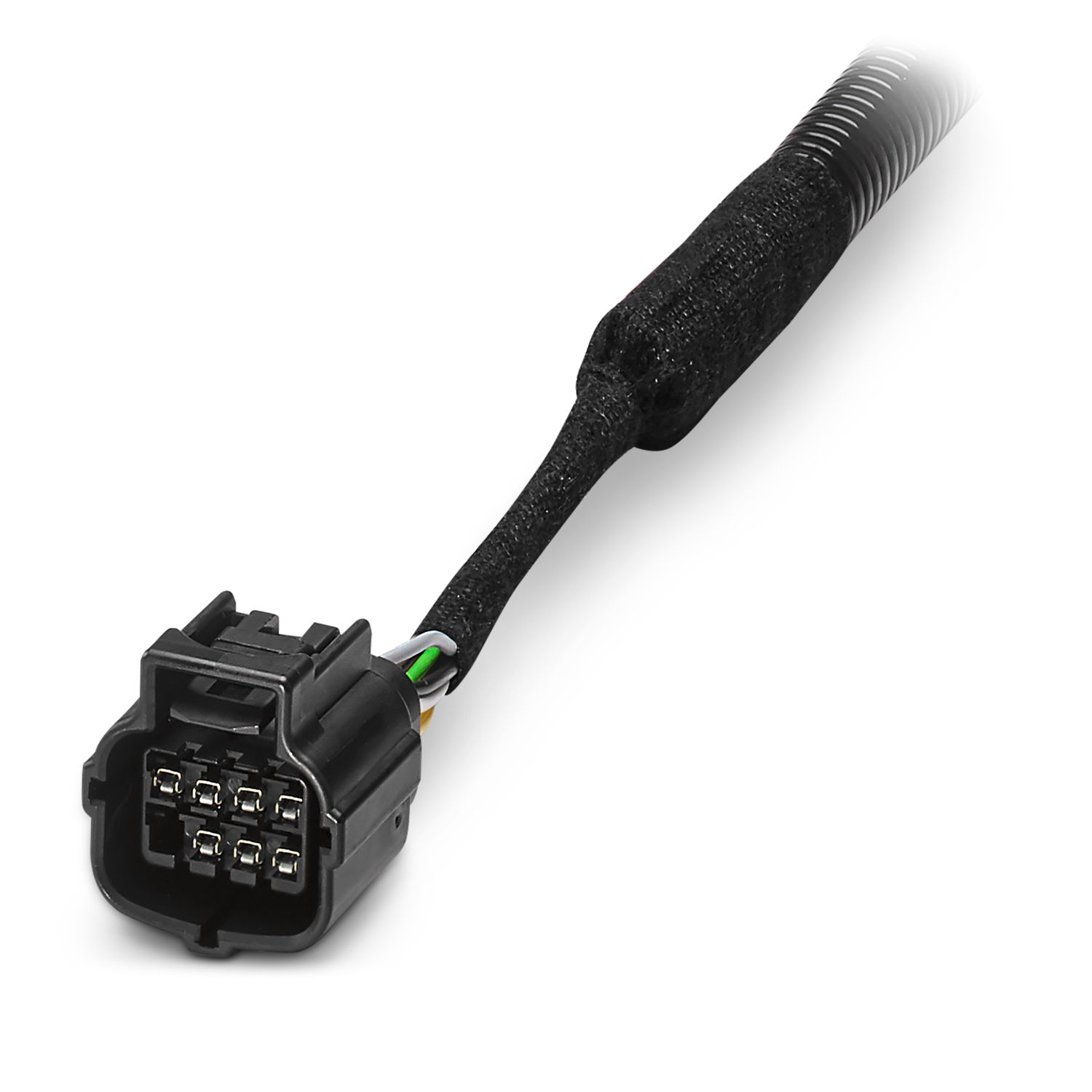

Cable end connection	8p-Econoseal (TE)
Single-core wires for Pt 1000 temperature sensors
Cable length	1036 mm
Cable structure	3 x 0.5 mm²
Single wire, material	PVC
Single wire, color	BN
		GN
		YE
External cable diameter	1.60 mm ±0.20 mm
Cable resistance	≤ 37.1 Ω/m
Cable end connection	8p-Econoseal (TE)
Single-core wires for communication
Cable length	1036 mm
Cable structure	2 x 0.5 mm²
Single wire, material	PVC
Single wire, color	BK
Single wire, color		WH
External cable diameter	1.60 mm ±0.20 mm
Cable resistance	≤ 37.1 Ω/m
Cable end connection	8p-Econoseal (TE)

Mechanical properties

Mechanical data
Insertion/withdrawal cycles	> 10000 (Vehicle charging inlet)
Insertion force	< 100 N (Vehicle charging inlet)
Withdrawal force	< 100 N (Vehicle charging inlet)

Environmental and real-life conditions

Ambient conditions
Degree of protection (Vehicle charging inlet)	IP55 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products)
	IP67 (Inner area of vehicle charging inlet)
Ambient temperature (operation)	-40 °C ... 40 °C (60°C, maximum (current reduction required, observe the DC contact temperature limit value of 90°C))
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Altitude	4000 m (above sea level)

Standards and regulations

Standards
Standards/regulations	IEC 62196-2
	IEC 62196-3

Mounting

Mounting type Vehicle charging inlet	Front and rear mounting (0 to 90 degree frontal inclination possible)
Mounting hole diameter	6.70 mm (ø)
Fixing screws	M6
Screws included in the scope of delivery	none

Item number	1739879
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	#####
Product key	XWCAID
GTIN	4067923303836
Weight per piece (excluding packing)	7,500 g
