PS-UKK/E
-
Test plug
3000641
Test plug, number of positions: 1, color: red
Product details
| Product type | Test plug terminal block |
| Number of positions | 1 |
| Pitch | 5 mm |
| Connection method | Spring-cage connection |

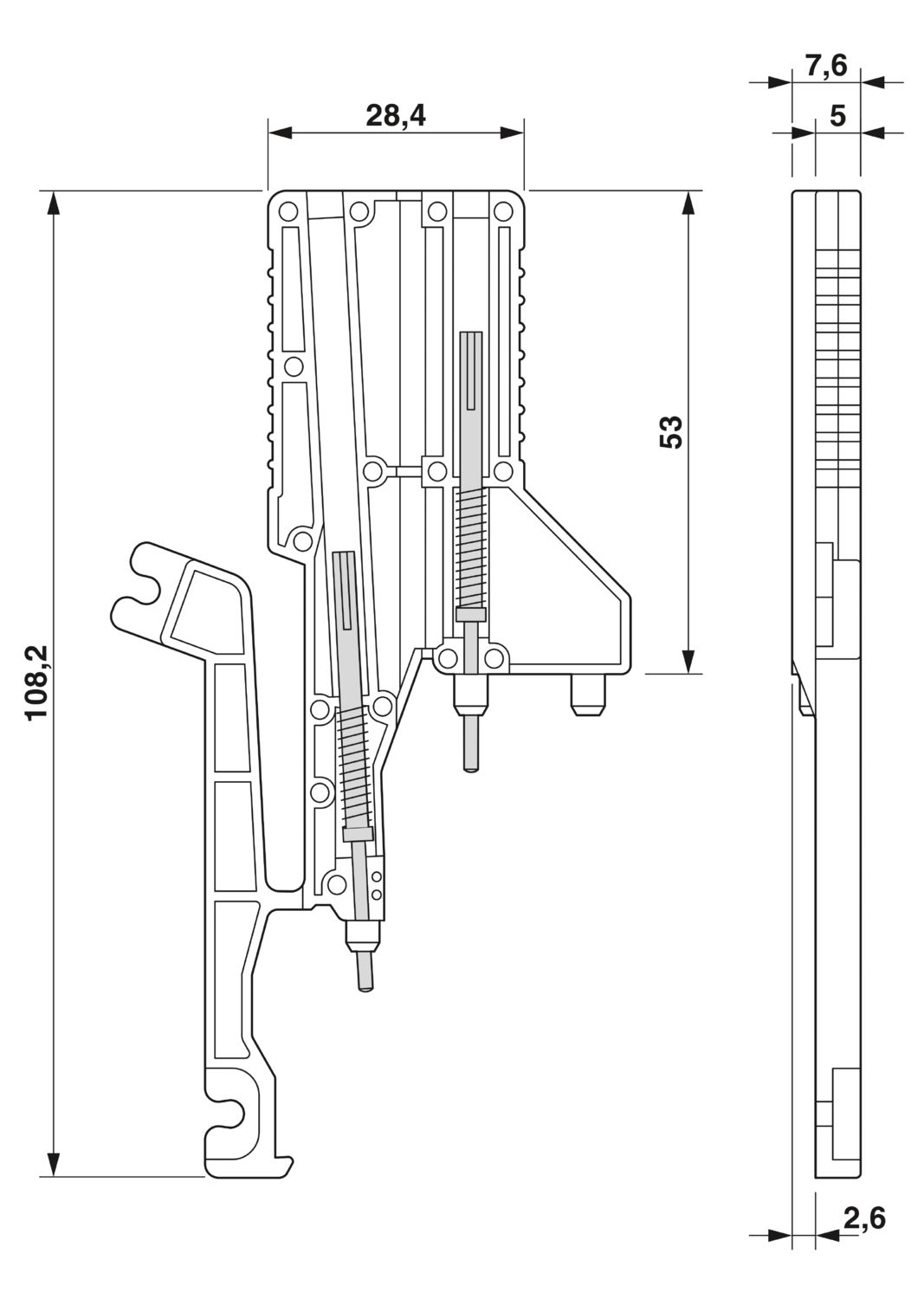

| Dimensional drawing |
|
| Width | 7.6 mm |
| Pitch | 5 mm |
| Color | red (RAL 3001) |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Your advantages
The test plug reliably makes contact in the bridge shaft and in all test sockets with a 2.3 mm or 4 mm diameter
Individual test adapters can be combined using the modular PS-...2,3MM test plug.
