SAC-M12T/2XM12 PB
-
T distributor
1440672
Bus system T-plug, 5-pos., PROFIBUS, coding rotated 90°, M12 B-coded male plug to M12 B-coded male plug and M12 B-coded female plug, shielded
Product details
| Product type | T-distributor |
| Sensor type | PROFIBUS DP |
| Number of positions | 4 |
| No. of cable outlets | 2 |
| Coding | B |
| Thread type | M12 |
| Insulation characteristics | |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Insulation resistance | ≥ 1 GΩ |
| Nominal voltage UN | 30 V AC |
| 36 V DC | |
| Nominal current IN | 1 A (Contact 2 and 4) |
| 4 A (Contact 1 and 3) | |
| Test voltage | 1 kV |
| Transmission speed | 12 Mbps |
| Signal type/category | PROFIBUS DP, 12 Mbps |
| Status display | no |
| Status display present | no |

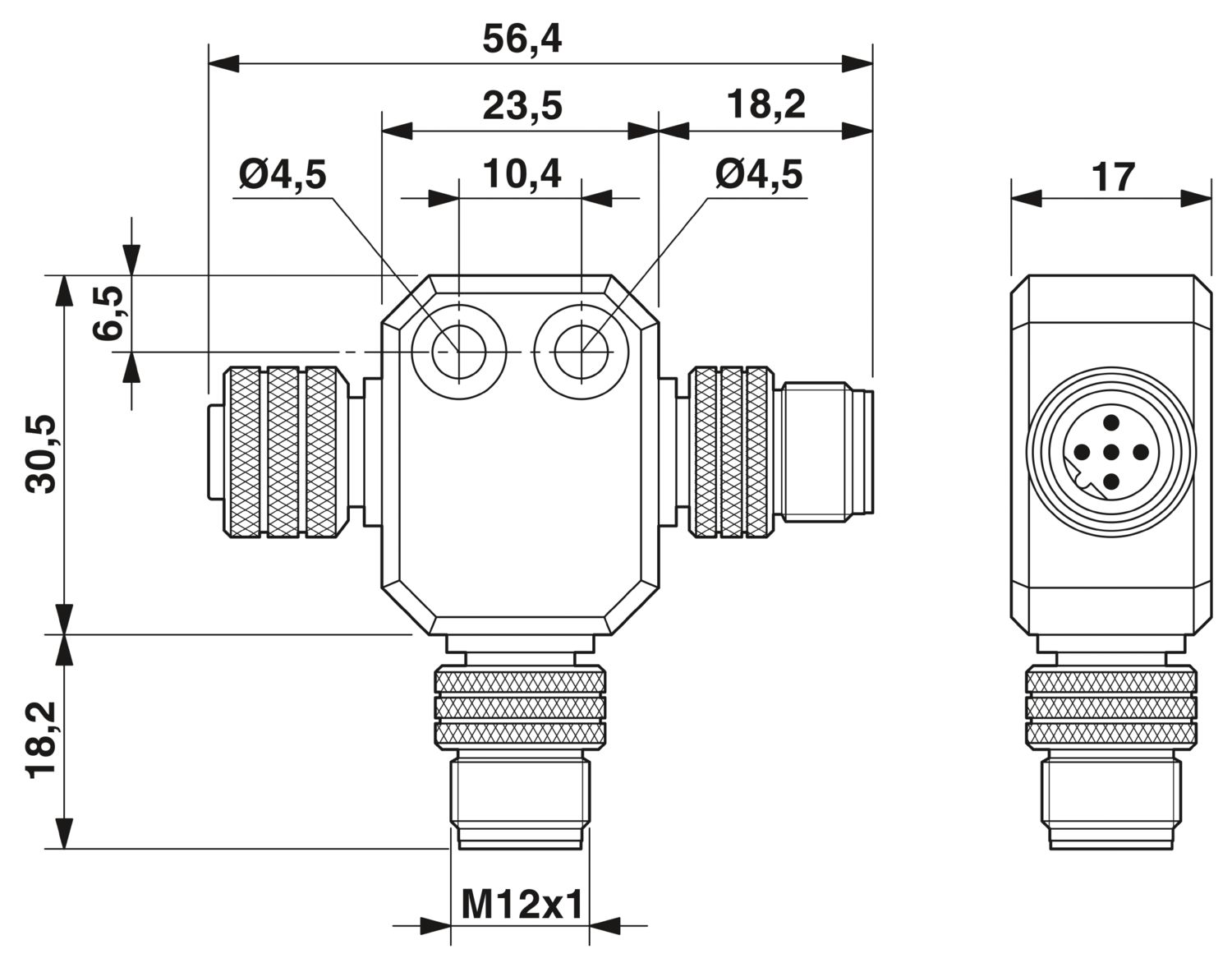

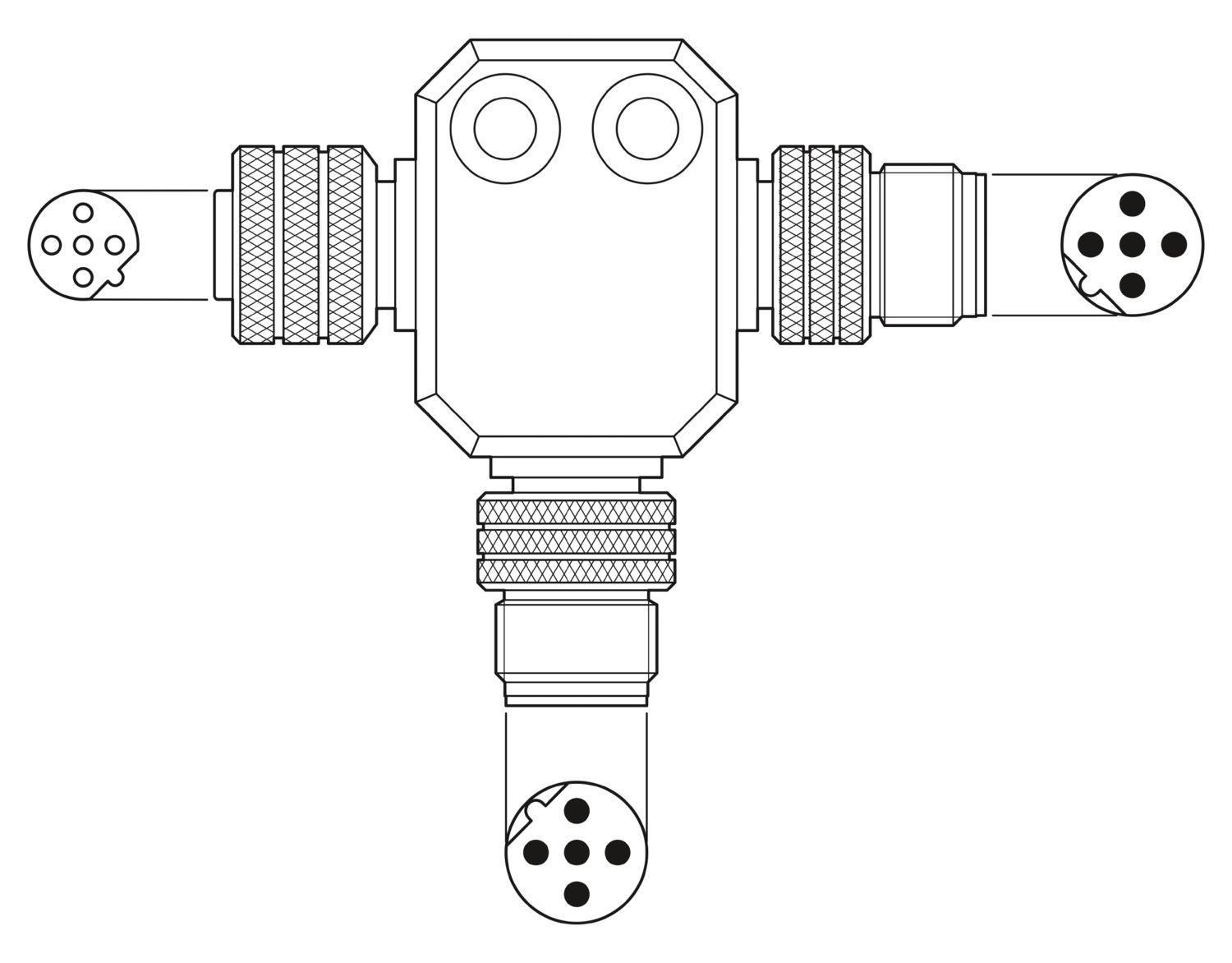

| Dimensional drawing |
|
| Length | 56.4 mm |
| Flammability rating according to UL 94 | V0 |
| Seal material | Viton |
| Material of grip body | PUR |
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | PUR |
| Material for screw connection | Brass, nickel-plated |
| Connection 1 | |
| Type | Plug straight M12 |
| Coding type | B |
| Connection 2 | |
| Type | Plug straight M12 |
| Coding type | B |
| Connection 3 | |
| Type | Socket straight M12 |
| Coding type | B |
| Signal type/category | PROFIBUS DP, 12 Mbps |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 |
| Ambient conditions | |
| Degree of protection | IP65 |
| IP67 | |
| Ambient temperature (operation) (male connector/female connector) | -25 °C ... 80 °C (Plug / socket) |
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-101 |
