Snap-on frame, large
KEL-SNAP 24
-
Snap-on frame
3063109
Size B24 snap-open frame incl. integrated mounting panel seal, for accommodating CES-B24-HFFS-PLBK or CES-B24-SFFS-PLBK sealing frames.
Product details
| Product type | Frame for cable sleeves |

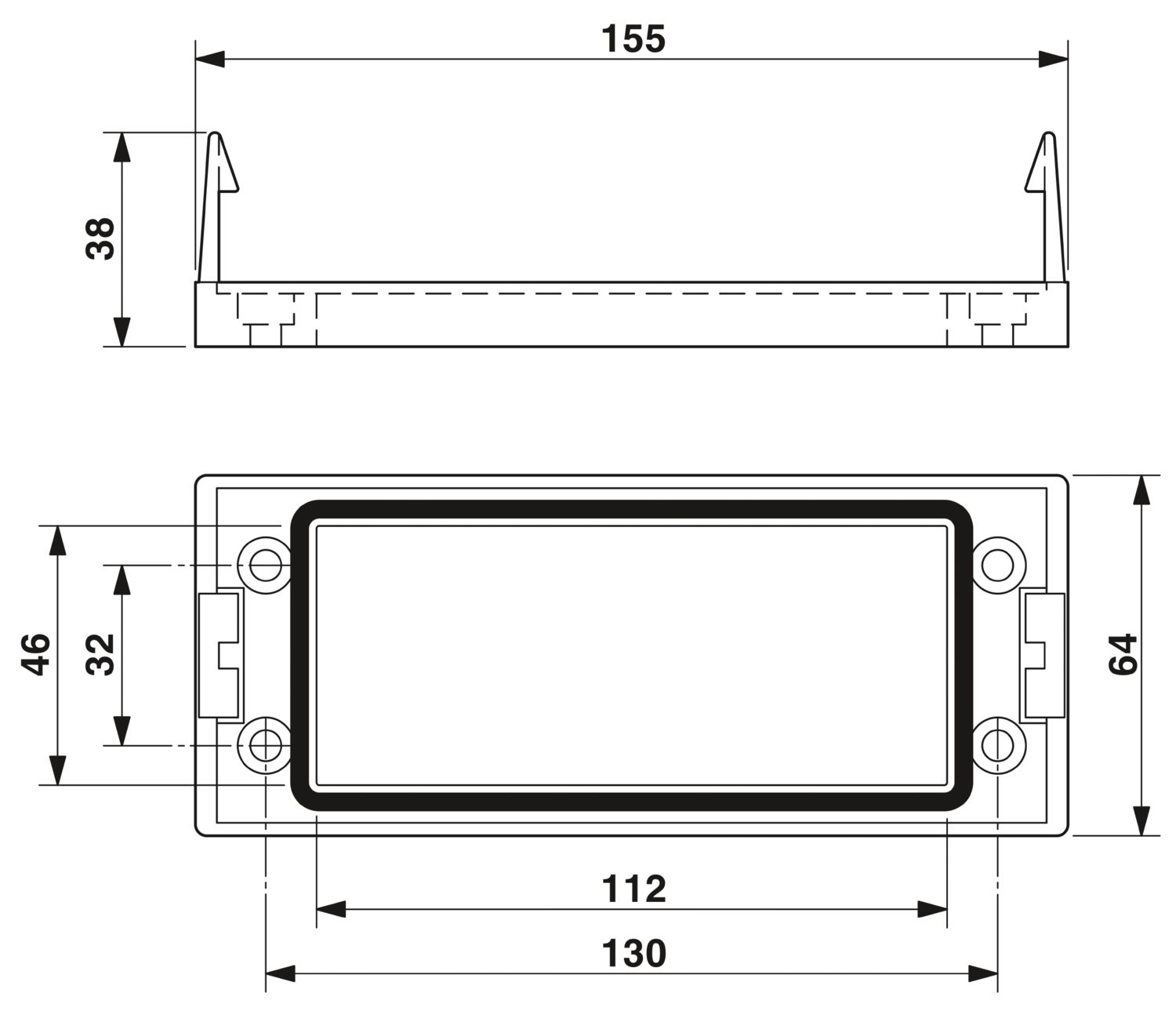

| Dimensional drawing |
|
| Width | 64 mm |
| Height | 38 mm |
| Length | 155 mm |
| Drill hole distance, horizontal | 32 mm |
| Drill hole distance, vertical | 130 mm |
| Hole diameter | 5.5 mm |
| Installation dimensions | |
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 112 mm |
| Material | PA |
| Flammability rating according to UL 94 | V0 |
| Ambient conditions | |
| Ambient temperature (operation) | -20 °C ... 80 °C |
