VC-MEMV-K2
-
Housing
1884490

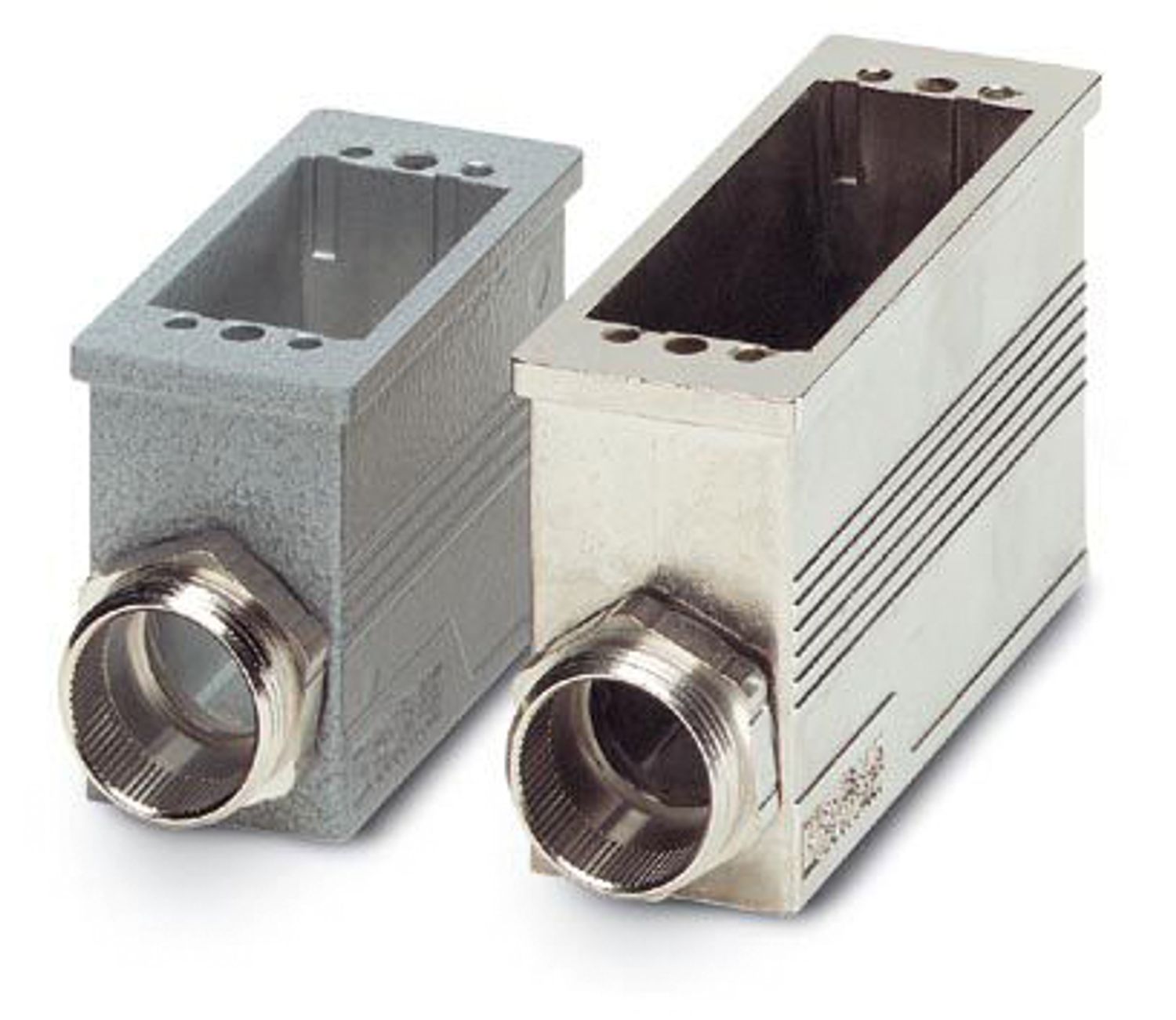

Coupling housing, made of metal, EMC-coated type 2, number of modules 3, cable screw connection Pg21
Product details
| General | When using fiber optics, the bending radii of the cable manufacturers must be observed. |
| Product type | Sleeve housings |
| Type | VC2 |
| No. of cable outlets | 1 |
| Number of module slots | 3 |
| Type of the screw connection | 1x Pg21 |
| Shielded | yes |
| Cable outlet | lateral |
| Dimensional drawing |
|
| Width | 36.4 mm |
| Height | 55 mm |
| Length | 77.6 mm |
| Thread type on seal side | Pg21 |
| Color | nickel |
| Seal material | EPDM, conductive |
| Housing material | Die-cast zinc |
| Housing surface material | nickel-plated |
| Mechanical data | |
| Type of the screw connection | 1x Pg21 |
| Locking type | Nut |
| Ambient conditions | |
| Degree of protection | IP65/IP66/IP67 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Your advantages
Any position can be a PE contact
