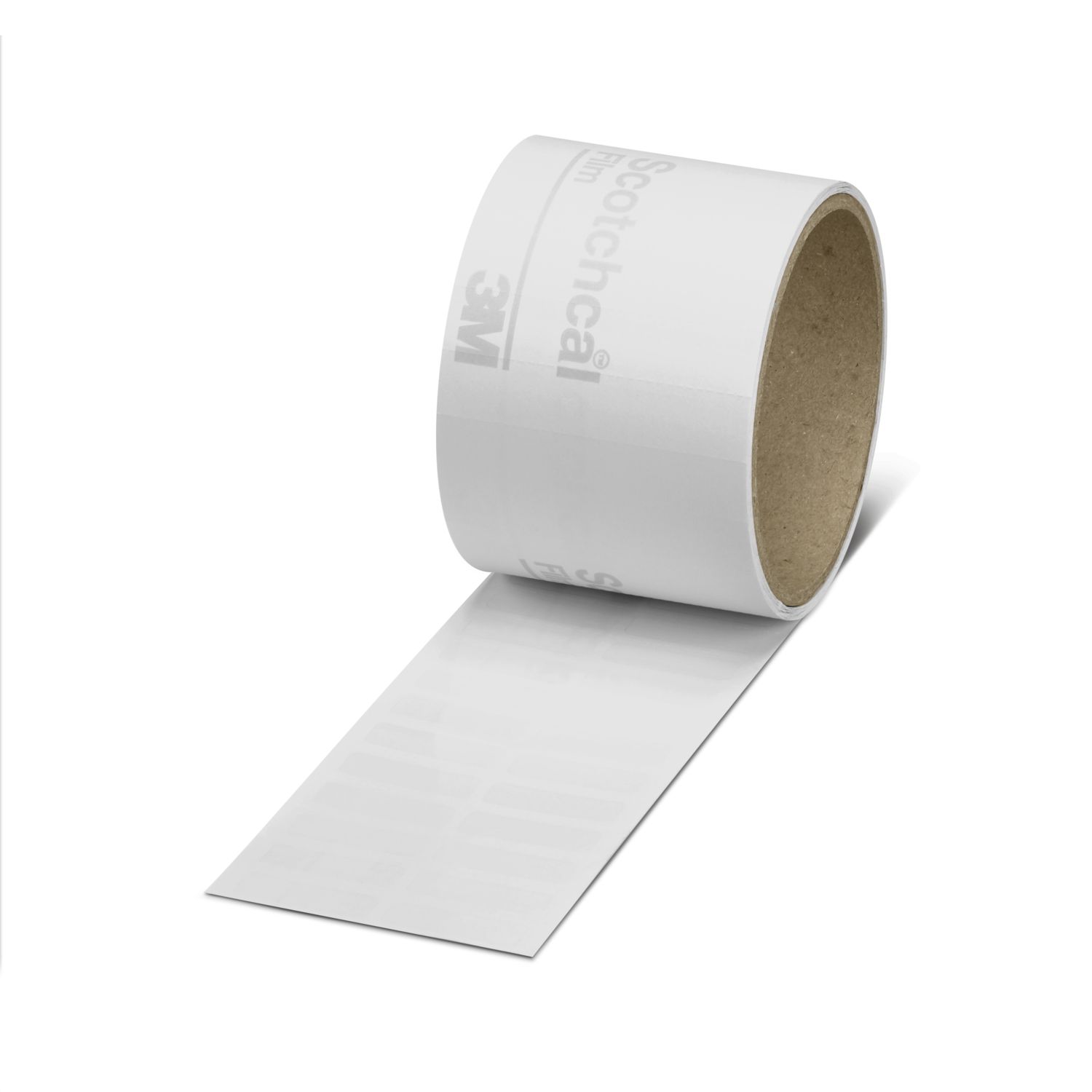

EML-PR (29X9)R/CHARX - Touch protection - 1387094

Notes

Note on application	Transparent protective laminate for the EMLP (29x9)R/CHARX marking label for AC charging connectors from Phoenix Contact E-Mobility

Product properties

Product type	Cover
Area of application	Phoenix Contact: EMLP (29X9)R/CHARX
Marking
Number of individual labels	500
Number of individual labels per row	2

Dimensions

Material specifications

Color	transparent
Base element material	Polyester

Environmental and real-life conditions

Specification	DIN EN ISO 1518-1:2019-10 (following)
Requirements	≥ 5 N
Result	Test passed
Tesafilm test
Specification	DIN EN ISO 2409:2013 (following)
Result	Test passed
UV resistance
Specification	ISO 4892-2:2013-03 (following)
Result	Test passed
Test duration	2000 h
Weathering-resistance
Specification	ISO 4892-2:2013-03
Result	Test passed
Test duration	4000 h
Procedure	A
Specification	IEC 60068-2-2:2007-07
Result	Test passed
Duration	840 h
Temperature for testing	80 °C
Testing in a condensation changing climate in the presence of sulfur dioxide
Specification	DIN 50018:2013-05
Result	Test passed
Climate level	AHT 1.0 S
Cycles	2
Salt spray test
Specification	DIN EN 60068-2-11:2000-02
Result	Test passed
Test duration	96 h
Ambient conditions
Recommended ambient temperature (storage/transport)	23 °C
Recommended humidity (storage/transport)	50 % (Storage in a dry and dark place in the original packaging is recommended)

Mounting

Item number	1387094
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	BG2
Product key	BG2414
GTIN	4063151763923
Weight per piece (including packing)	89.4 g
Weight per piece (excluding packing)	80.1 g
Customs tariff number	39191080
Country of origin	DE

ECLASS-13.0	24292214
ECLASS-15.0	24292214

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
