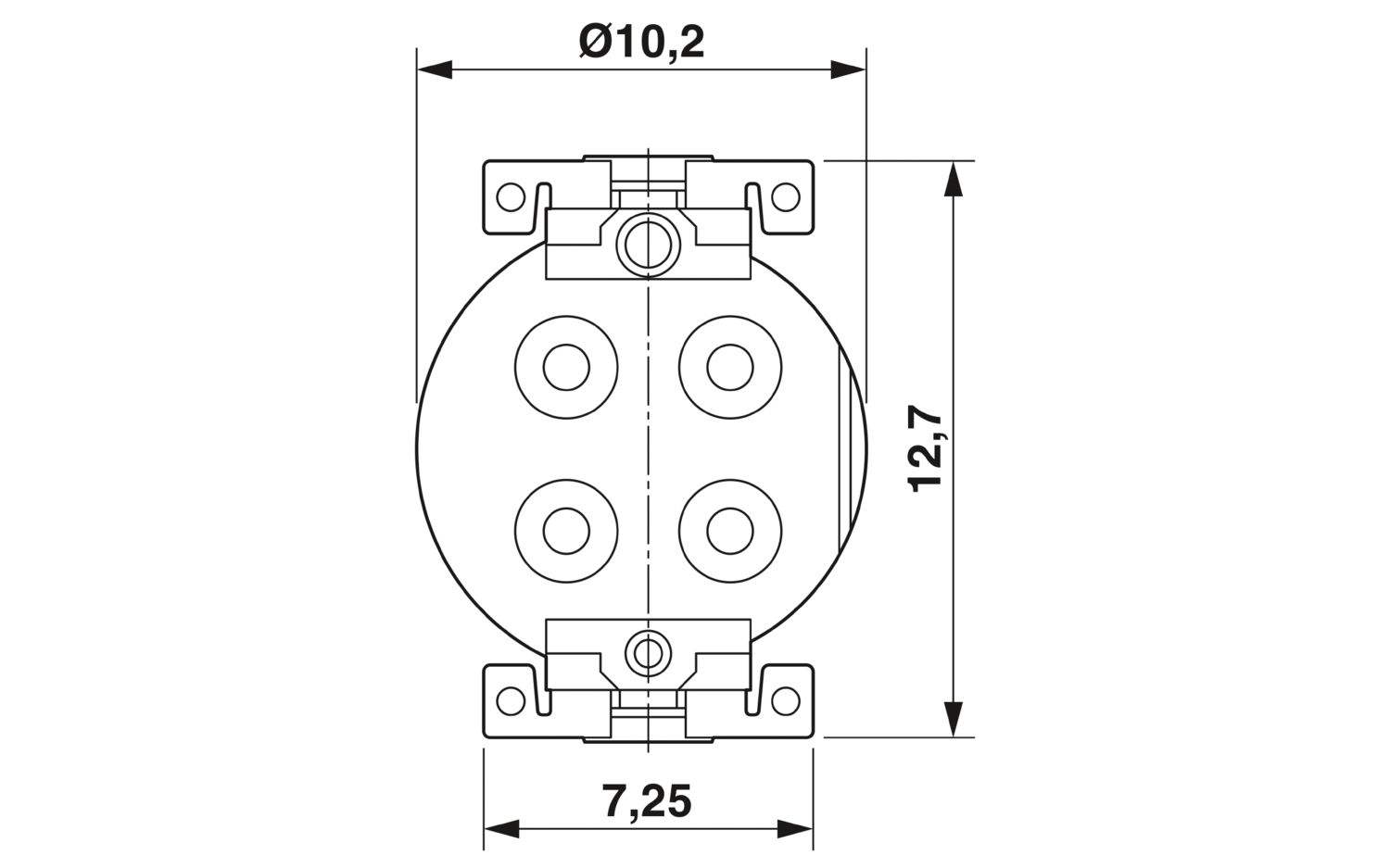

Contact carrier, 4-position, Socket, straight, M12, T-coding, SMD, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)
Product details
Notes on operation
The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Number of positions
4
Coding
T
Insulation characteristics
Overvoltage category
III
Degree of pollution
3
Rated surge voltage
1.5 kV
Contact resistance
≤ 3 mΩ
Insulation resistance
≥ 100 MΩ
Nominal voltage UN
60 V
Nominal current IN
12 A
Connection method
SMD
Material Insulating body
PA
Material Contact
CuZn
Material Contact surface
Au
Flammability rating according to UL 94
V0
Connection 1
Head design
Socket
Head cable outlet
straight
Head thread type
M12
Coding
T
Mechanical data
Insertion/withdrawal cycles
> 100
Ambient conditions
Degree of protection
IP67 (correctly plugged in and locked)
Ambient temperature (operation) (male connector/female connector)
