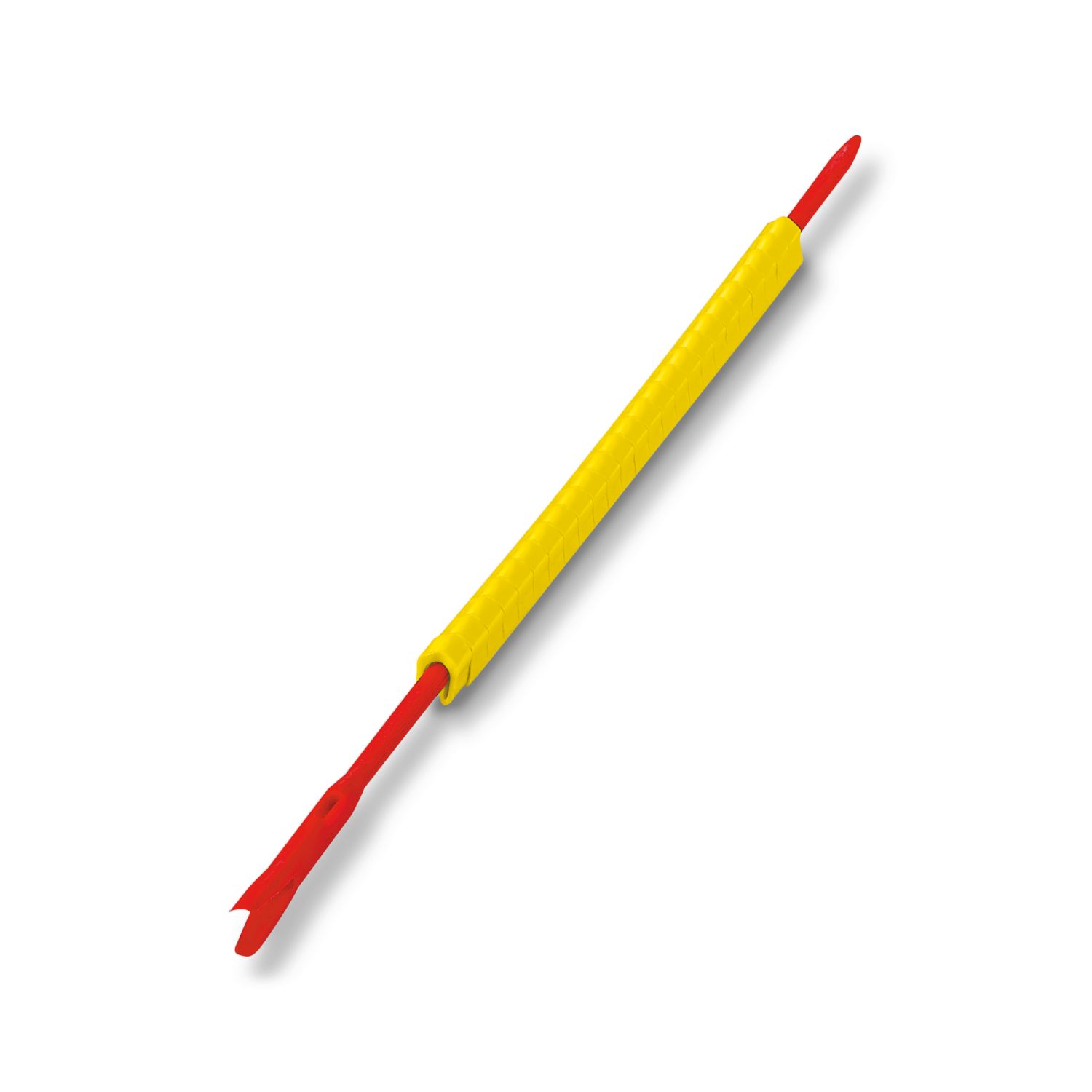

SD-WMS 3 (NEUTRAL)S YE - Wire marking tag - 0825793

Product properties

Mounting

Mounting type	thread on

Material specifications

Color	yellow
Material	Polyvinyl chloride
Flammability rating according to UL 94	V0
Components	Free from silicone and cadmium

Environmental and real-life conditions

Test for substances that would hinder coating with paint or varnish
Result	Test passed
UV resistance
Specification	ISO 4892-2:2013-03 (following)
Result	Test passed
Test duration	96 h
Wipe resistance of inscriptions
Specification	DIN EN 61010-1 (VDE 0411-1):2011-07
Specification		DIN EN 62208 (VDE 0660-511):2012-06 (in parts)
Isopropyl [CAS No. 67-63-0]	Test passed
n-Hexane [CAS No. 110-54-3]	Test passed
Water + Petroleum ether [CAS No. 64742-82-1]	Test passed
Testing in a condensation changing climate in the presence of sulfur dioxide
Specification	DIN 50018:2013-05
Result	Test passed
Climate level	AHT 1.0 S
Cycles	2
Salt spray test
Specification	DIN EN 60068-2-11:2000-02
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-30 °C ... 60 °C

Dimensions

Standards and regulations

Wipe resistance	DIN EN 61010-1 (VDE 0411-1)

Notes

Item number	0825793
Packing unit	250 pc
Minimum order quantity	250 pc
Note	Made to order (non-returnable)
Sales key	BG2
Product key	BG2212
GTIN	4046356420334
Weight per piece (including packing)	0.05 g
Weight per piece (excluding packing)	0.05 g
Customs tariff number	39269097
Country of origin	SE

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

SD-WMS 3 (NEUTRAL)S YE - Wire marking tag

0825793
