G-INS-N1-M68L-PNES-BK
-
Cable gland
1411159
Cable gland, material for screw connection: PA, application: Standard, external cable diameter 18 mm ... 25 mm, shielding: no, connecting thread: 1"-NPT, color: jet black RAL 9005
Product details
| Assembly note | 1) Mount screw connection support in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque |
| Product type | Cable screw gland |
| Application | Standard |
| No. of conductors | 1 |
| Manufacturer | BIMED |
| Manufacturer Designation | BSP-24 |
| Shielded | no |

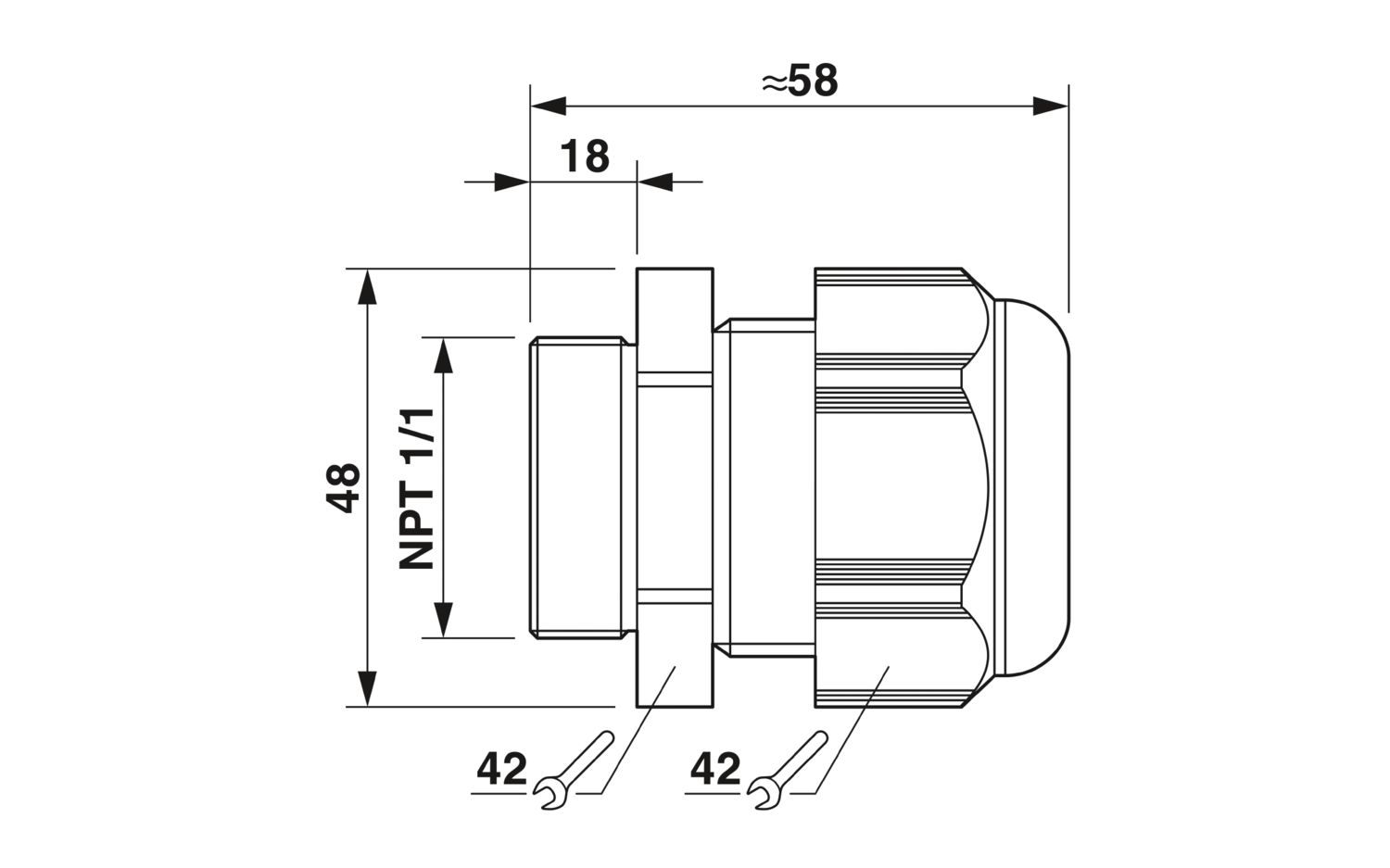

| Dimensional drawing |
|
| Length | 58 mm |
| Length of the connecting thread | 18 mm |
| Wrench size, union nut | 42 mm |
| Wrench size, support | 42 mm |
| Hexagon angular dimension | 48 mm |
| Thread type connection side | 1"-NPT |
| Tightening torque | 9.5 Nm ±0.5 Nm (Cap nut) |
| 4 Nm (Support sleeve) |
| Color | black (RAL 9005) |
| Material Housing | PA 6 (Housing) |
| Flammability rating according to UL 94 | V2 |
| Seal material Cable seal | CR |
| Material for screw connection | PA |
| External cable diameter | 18 mm ... 25 mm |
| 18 mm ... 25 mm (for UL 514 B) | |
| Halogen-free | no |
| Ambient conditions | |
| Degree of protection | IP68 (5 bar / 0.5 h) |
| IP66 | |
| Ambient temperature (operation) | -40 °C ... 100 °C (static) |
Your advantages
Plastic material conforms to UL 746C f1
