G-INS-M20-S68N-NNES-S
-
Cable gland
1411163
Cable gland, material for screw connection: Brass, nickel-plated, application: Standard, external cable diameter 6 mm ... 12 mm, shielding: no, connecting thread: M20 x 1.5, color: silver-colored, with O-ring
Product details
| Assembly note | 1) Mount screw connection support in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque |
| Product type | Cable screw gland |
| Application | Standard |
| No. of conductors | 1 |
| Manufacturer | BIMED |
| Manufacturer Designation | BMBC-02 |
| Shielded | no |
| Execution of the strain relief | A |
| Category of shock impact | 6 |
| Design, Strain relief | A |

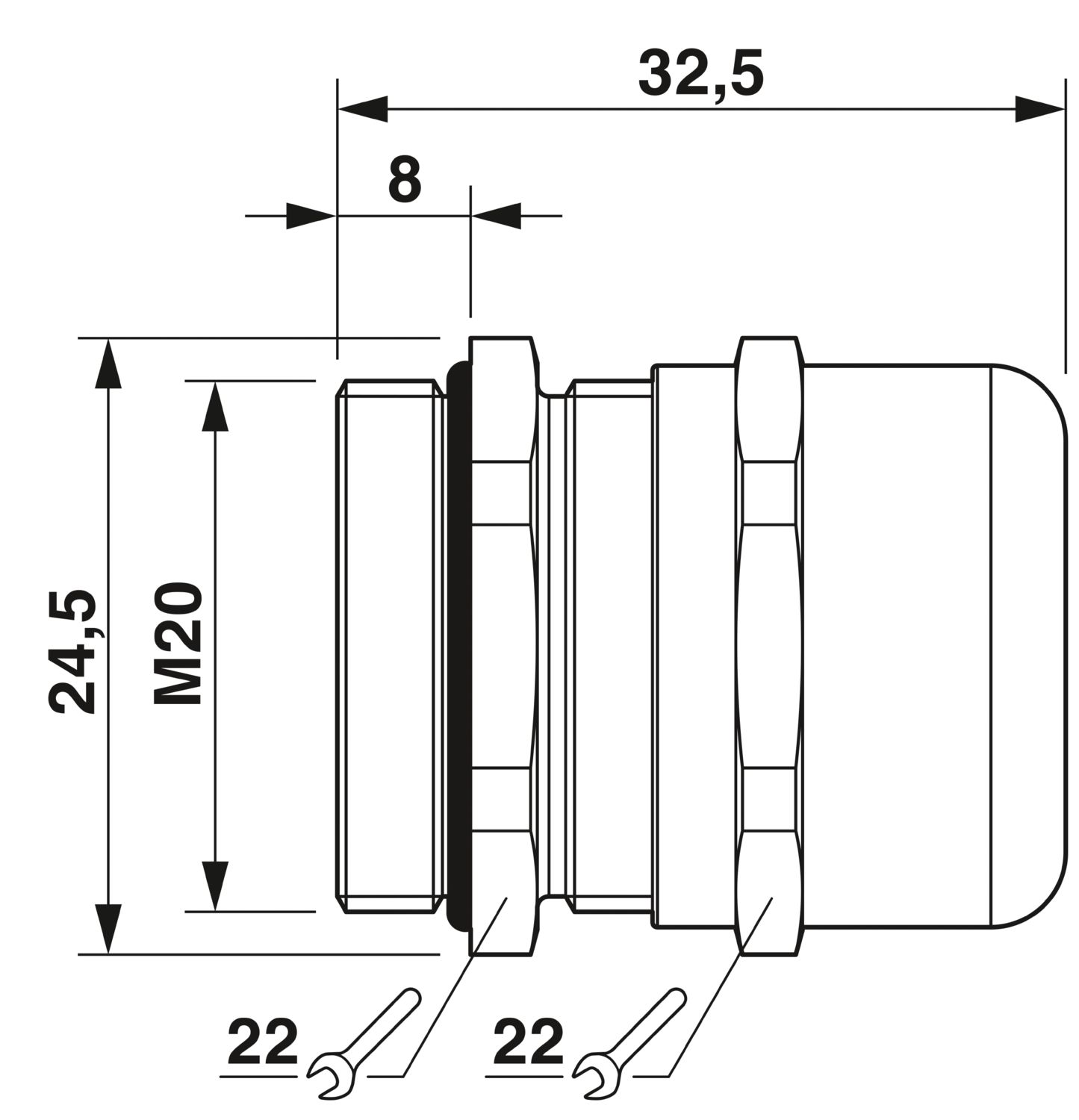

| Dimensional drawing |
|
| Length | 37 mm |
| Length of the connecting thread | 8 mm |
| Hole diameter | 20.1 mm ... 20.3 mm |
| Wrench size, union nut | 22 mm |
| Wrench size, support | 22 mm |
| Hexagon angular dimension | 24.5 mm |
| Thread type connection side | M20 x 1.5 |
| Thread pitch | 1.5 mm |
| Tightening torque | 8 Nm ±0.5 Nm (Cap nut) |
| 5.5 Nm (Support sleeve) |
| Color | brass color |
| Material Compression ring | PA 6 |
| Seal material O-ring | Perbunan |
| Seal material Cable seal | CR |
| Material for screw connection | Brass, nickel-plated |
| External cable diameter Cable 1 | 6 mm ... 12 mm |
| External cable diameter | 10 mm ... 12 mm (for UL 514 B) |
| Halogen-free | no |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP68 (5 bar, 30 min.) | |
| IP69 (DIN EN 60529 / IEC 60529) | |
| Enclosure rating (NEMA) | 4X |
| Ambient temperature (operation) | -40 °C ... 100 °C (static) |
