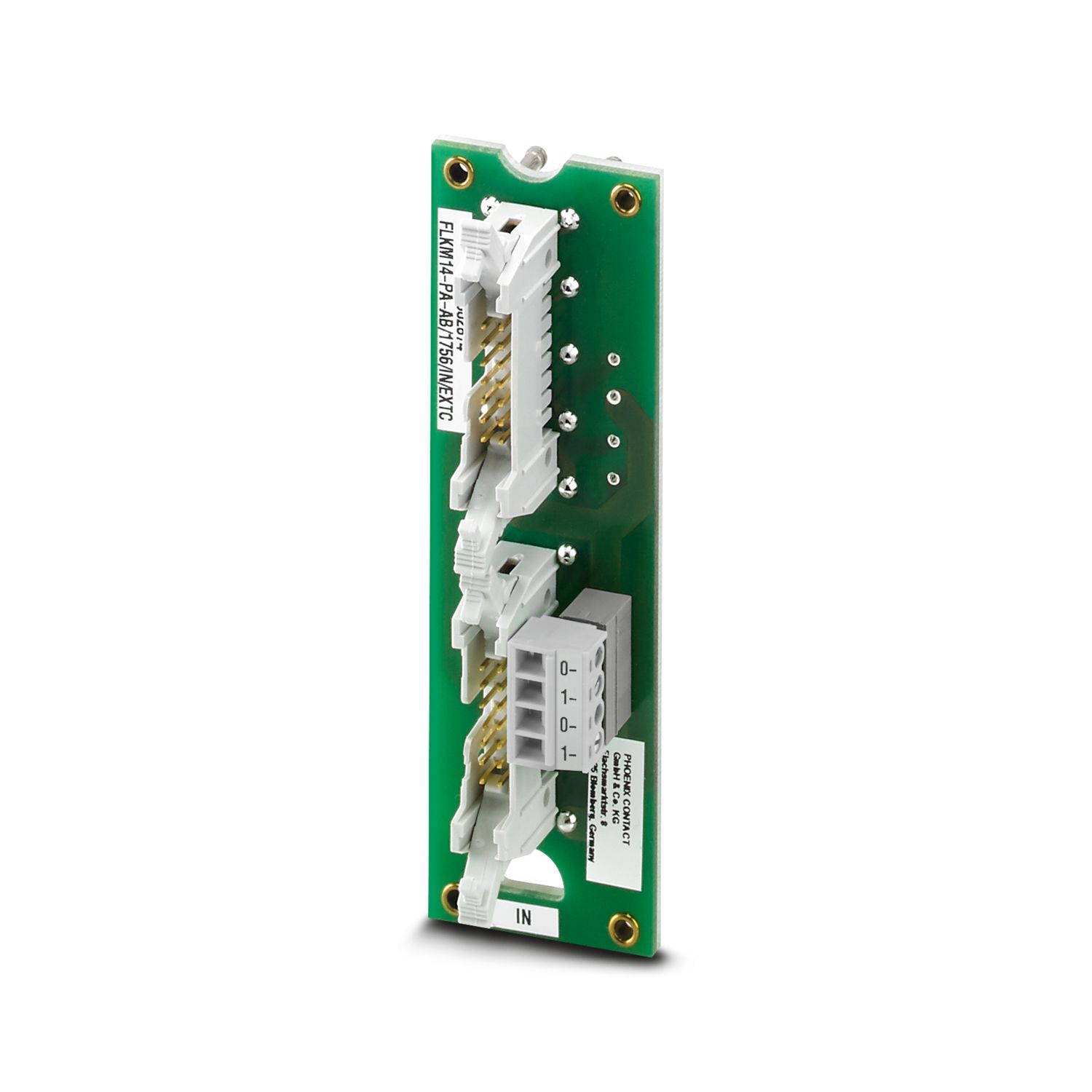

VARIOFACE front adapter, for Allen Bradley ControlLogix and Honeywell PlantScape, input card IA 16, IB 16, IC 16, IN 16. The front adapters are pushed into the high 1756-TBE hoods (not supplied as standard).
Product details
Product type
Front adapter
Insulation characteristics: Air clearances and creepage distances between the power circuits
Insulation
Functional insulation
Overvoltage category
II
Pollution degree
2
Operating voltage (AC)
≤ 25 V AC
Operating voltage (DC)
≤ 60 V DC
Nominal operating mode
100% operating factor
Current (Per path)
≤ 1 A
Air clearances and creepage distances between the power circuits
Rated insulation voltage
63 V
Rated surge voltage
0.6 kV
Supported controller ALLEN-BRADLEY ControlLogix
Suitable I/O card
1756-IN16
1756-IA16
1756-IB16
1756-IC16
Supported controller HONEYWELL Experion PKS C200
Suitable I/O card
TC-IDA 161
Field level

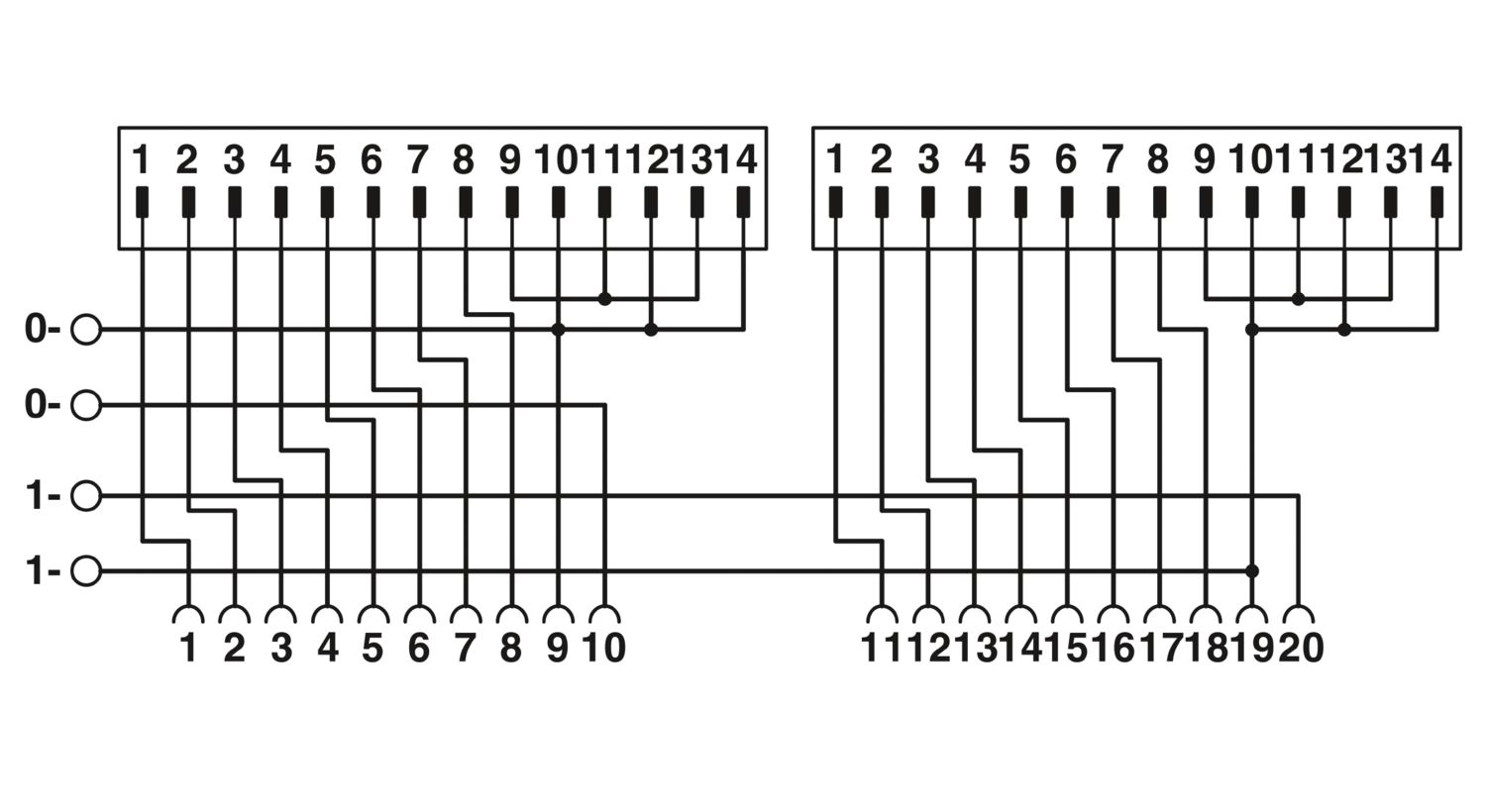

Connection method
IDC/FLK pin strip
Number of connections
2
Number of positions
14
Pitch
2.54 mm
Supply
Connection method
Screw connection
Conductor cross-section rigid
0.14 mm² ... 1.5 mm²
Conductor cross-section flexible
0.14 mm² ... 1.5 mm²
Conductor cross-section AWG
28 ... 16
Item dimensions
Width
104.9 mm
Height
33 mm
Depth
40.84 mm
Ambient conditions
Degree of protection
IP00
Degree of protection (Installation location)
≥ IP54 (Installation location)
Ambient temperature (operation)
-20 °C ... 50 °C
Ambient temperature (storage/transport)
-20 °C ... 70 °C
Altitude
≤ 2000 m
Air clearances and creepage distances between the power circuits
Standards/regulations
DIN EN 50178
Assembly note
in rows with zero spacing
Mounting position
any
Notes on operation
Do not connect adjacent channels to SELV/ PELV and voltages dangerous to the touch.
Notes on operation
No additional touch protection is required when using a SELV/PELV voltage (≤ 25 V AC or 60 V DC).
Notes on operation
At least one functional insulation against adjacent modules is complied with (in the support rail direction). If the application has stricter requirements for the insulation (basic insulation or reinforced insulation), they must be realized by applying suitable measures (e. g. partition plates).
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
Item number
2302874
Packing unit
1 pc
Minimum order quantity
1 pc
Note
Made to order (non-returnable)
Sales key
CK2
Product key
DK231R
GTIN
4017918917531
Weight per piece (including packing)
59.5 g
Weight per piece (excluding packing)
31.5 g
Customs tariff number
85369010
Country of origin
DE
ECLASS
ECLASS-13.0
27242292
ETIM
ETIM 8.0
EC002584
UNSPSC
UNSPSC 21.0
32151600
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
6(c)
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
