VS-FP-SD-GB-RJ456A-BUBU
-
Front plate
1054544
Protective contact socket, plastic, for Great Britain, including RJ45 gender changer (female/female, shielded), CAT6A
Product details
| Product type | Data front plate |
| Number of positions | 8 |
| Country ID | Great Britain |
| Rated voltage (III/3) | 250 V (Socket) |
| max. 30 V AC (RJ45) | |
| max. 42.4 V DC (RJ45) | |
| Rated current | 13 A (Socket) |
| Nominal current IN | max. 175 mA (RJ45) |
| Transmission speed | 10 Gbps |
| Connection method | Screw connection |

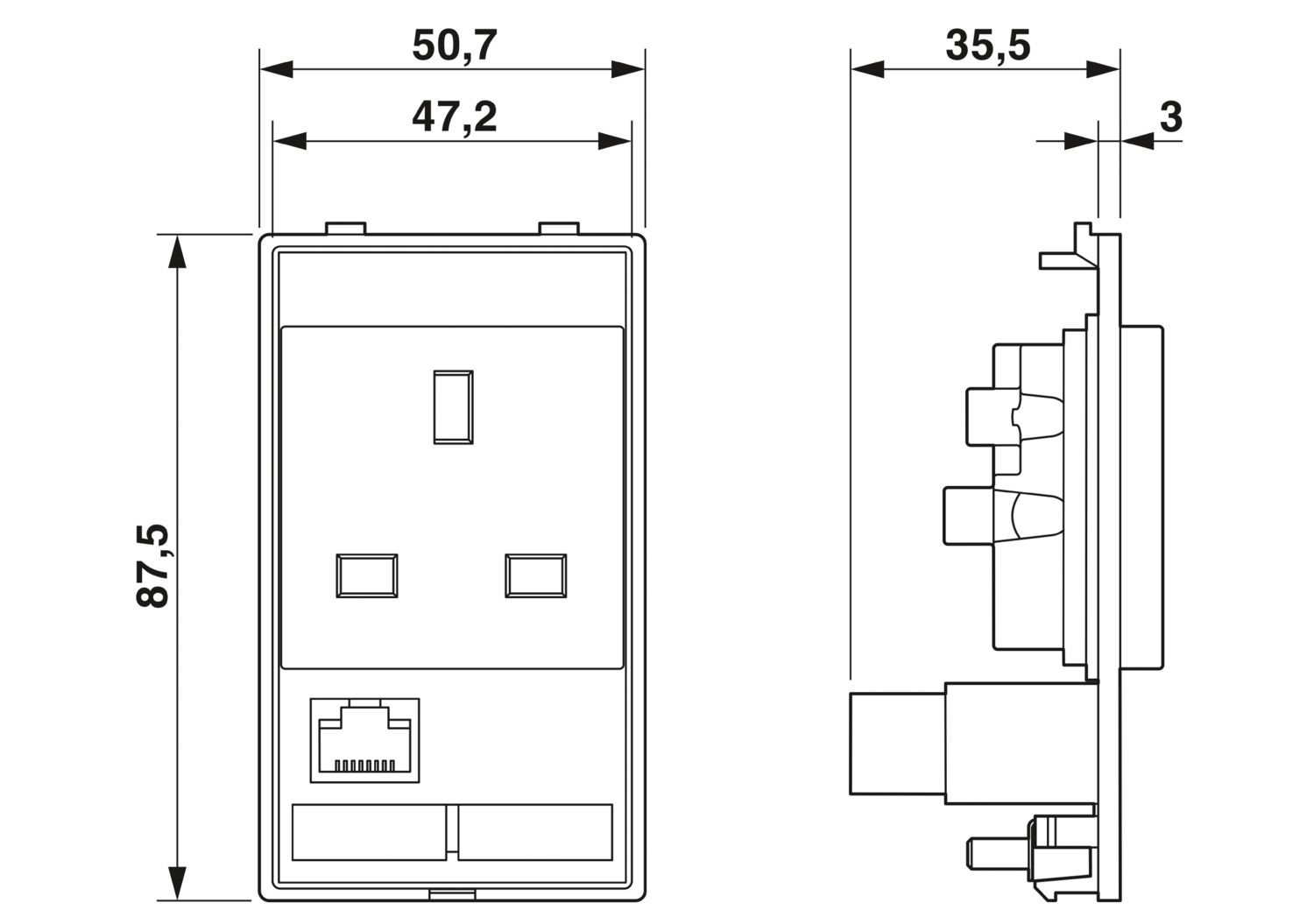

| Dimensional drawing |
|
| Width | 50.7 mm |
| Height | 43 mm |
| Length | 87.5 mm |
| Material | Die-cast zinc, nickel-plated (RJ45) |
| Material Housing | PBT (Front plate) |
| Material | (Socket, labeling field) |
| Contact insert design | with 1x RJ45 Socket/socket, Cat 6, classEA (ISO/IEC 11801:2002), (EN 50173-1) |
| Mechanical data | |
| Insertion/withdrawal cycles | >= 750 (RJ45) |
| Ambient conditions | |
| Degree of protection | IP20 (Front) |
| Ambient temperature (operation) | -5 °C ... 50 °C |
| Assembly note | Shroud connection: M4 threaded pin, tightening torque: 0.8 Nm ... 1.0 Nm |
