SI-FP-D1A
-
Front plate
1404501
Front plate with contact inserts, plastic, 1x D-SUB 9 (socket/socket)
Product details
| Product type | Data front plate |
| Number of positions | 9 |
| Number of slots | 1 |
| Rated voltage (III/3) | 48 V AC/DC (D-SUB 9) |
| max. 42.4 V DC (D-SUB 9, UL rating) | |
| max. 30 V AC (D-SUB 9, UL rating) | |
| Rated current | 3 A (D-SUB 9) |
| max. 175 mA (D-SUB 9, UL rating) |

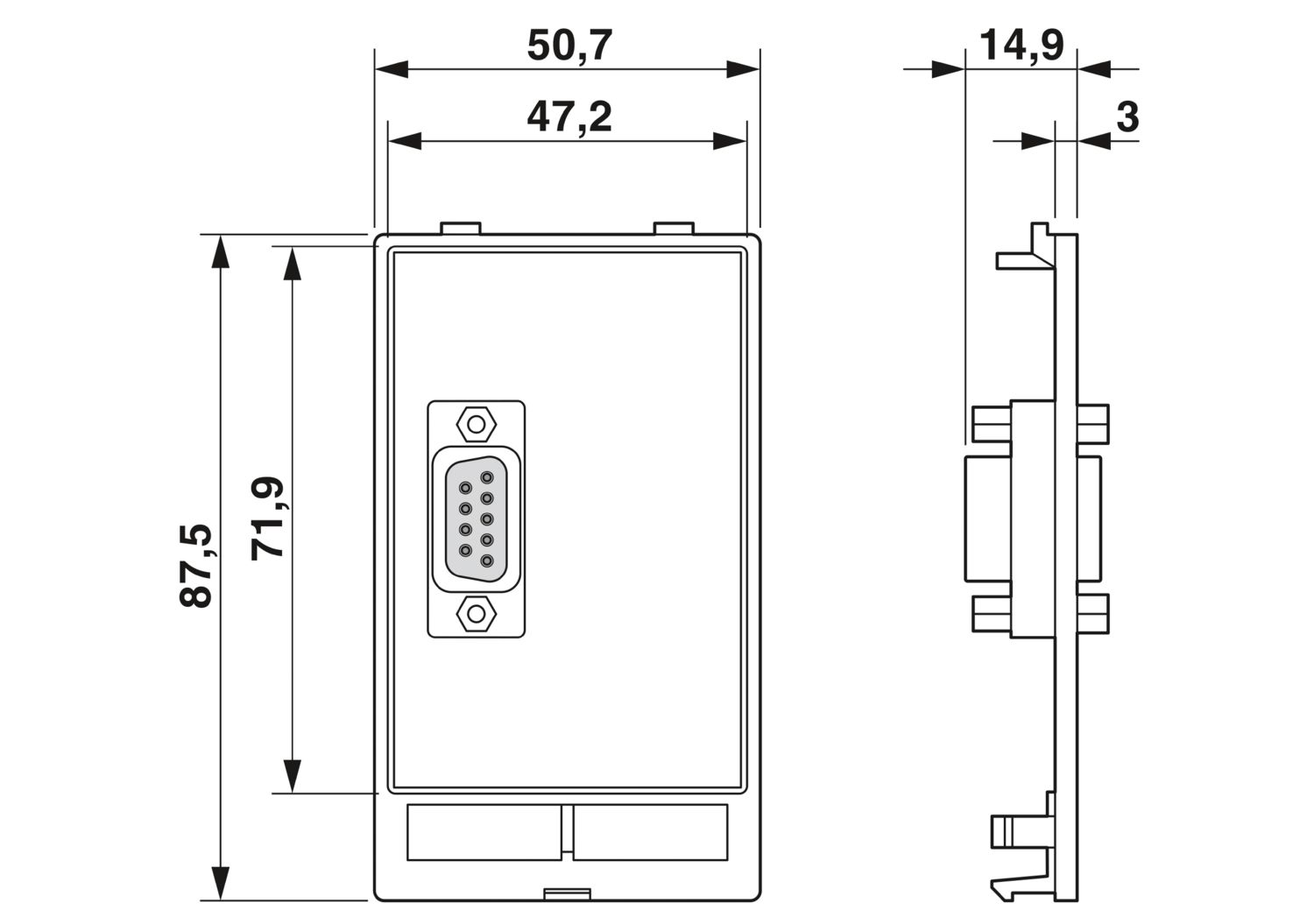

| Dimensional drawing |
|
| Width | 50.7 mm |
| Height | 87.5 mm |
| Depth | 15 mm |
| Material Front plate | PBT (Front plate) |
| Contact insert design | with 1x D-SUB 9 Socket/socket, slot locking UNC 4...40 bolts |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -10 °C ... 60 °C |
| Assembly note | suitable for all mounting frames |
