PACT MCR-V2-5012- 85- 750-5A-1 - Current transformer

2276175

Window-type current transformer, 750 A AC primary current; 5 A AC secondary current; accuracy class 1; 10 VA rated power

Product type	Current transformer

Rated insulation voltage	1 kV (Phase/neutral conductor)
General
Can be calibrated	no
Converter type	Window-type current transformer

Current transformer
Rated power	10 VA
Thermal rated short-time current	I_th = 60 * I_n
Thermal rated continuous current	I_d = 1.2 * I_n
Rated surge current	I_dyn = 2.5 * I_th
Rated frequency f_n	50 Hz
	60 Hz
Primary rated current I_pn	0 A AC ... 750 A AC
Can be calibrated	no
Converter type	Window-type current transformer

Signal
Designation	Current output
Secondary rated current I_sn	5 A AC
Surge current limitation factor	FS 5
Accuracy class	1

Connection method	Screw connection
Stripping length	10 mm
Conductor cross section flexible	2x 10 mm² ... 10 mm² (Secondary terminals)
Tightening torque	2 Nm ... 2 Nm

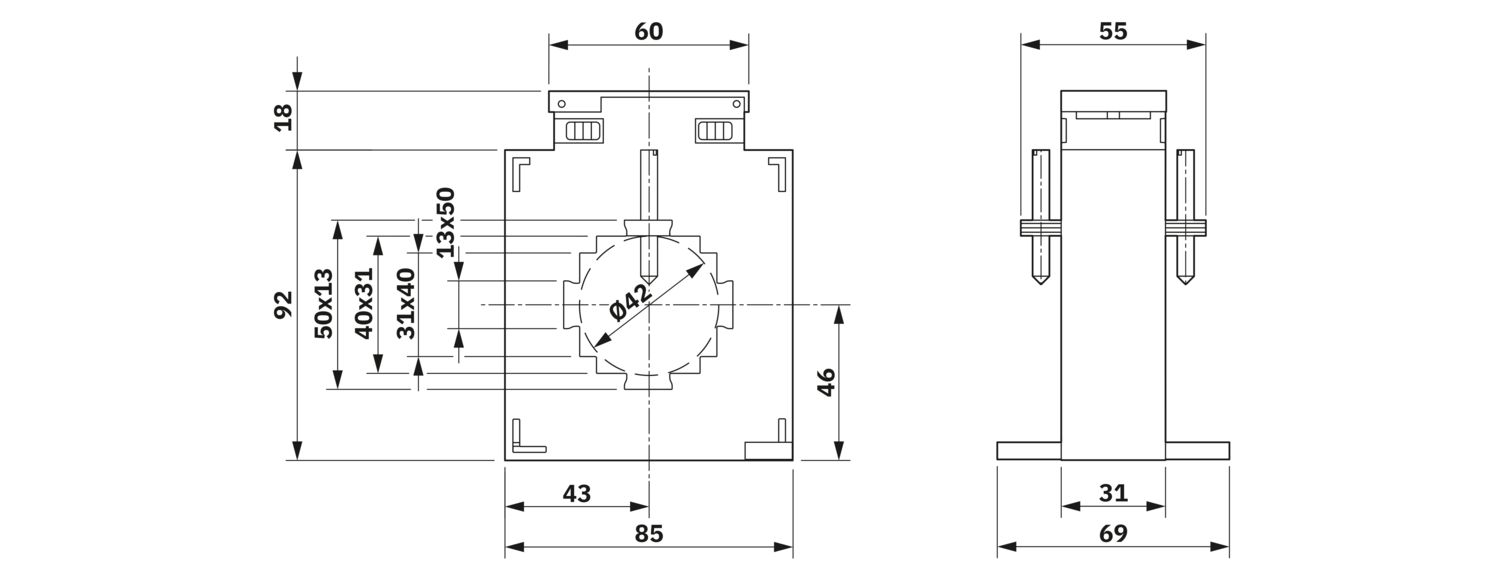

Item dimensions
Width	31 mm
Height	110 mm
Depth	85 mm
Item dimensions with alternative mounting
Width	85 mm
Height	110 mm
Depth	31 mm
Copper rail
Width	50 mm
Height	12 mm
Copper rail 2
Width	40 mm
Height	10 mm
Circular conductor
Diameter	42 mm
Drill hole
Diameter	6.5 mm

Color	gray (RAL 7042)
Housing material	PA 6.6

Ambient conditions
Ambient temperature (operation)	-25 °C ... 40 °C
Ambient temperature (storage/transport)	-25 °C ... 40 °C
Altitude	≤ 1000 m
Permissible humidity (operation)	Use only indoors, non-condensing
Insulating material class	H

Standards/regulations	EN 61869

Mounting type	DIN rail mounting
	Panel mounting

Item number	2276175
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	CMM
Product key	CMMA11
Catalog page	Page 214 (C-5-2019)
GTIN	4046356502474
Weight per piece (including packing)	454 g
Weight per piece (excluding packing)	378 g
Customs tariff number	85043129
Country of origin	DE

Compatible products

Accessories

PHOENIX CONTACT Middle East FZ LLC

1201N-1206N, Dubai Science Park Towers - North, P.O. Box 345002, Dubai, United Arab Emirates

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
