CC1,5-TS-2,50M AU - Crimp contact

1029388

Crimp contact, contact diameter: 1.5 mm, turned, Pin, contact material: CuZn, contact surface: Ni/Au, connection cross section: 2.5 mm² ... 2.5 mm², AWG 14

This product needs further products for operation. Mandatory accessories

Mounting type	Snap in

Product type	Crimp contact
Type	Individual male contact
Contact material type	turned

Connection method	Crimp connection
Contact connection type	Pin
Connection technology	Crimp connection
Conductor cross section	2.5 mm² ... 2.5 mm² (flexible)
Connection cross section AWG	14 (flexible)
Conductor cross section flexible	2.5 mm² ... 2.5 mm²
Conductor cross section AWG	14 ...

Contact material	CuZn
Contact surface material	Ni/Au

Mechanical characteristics

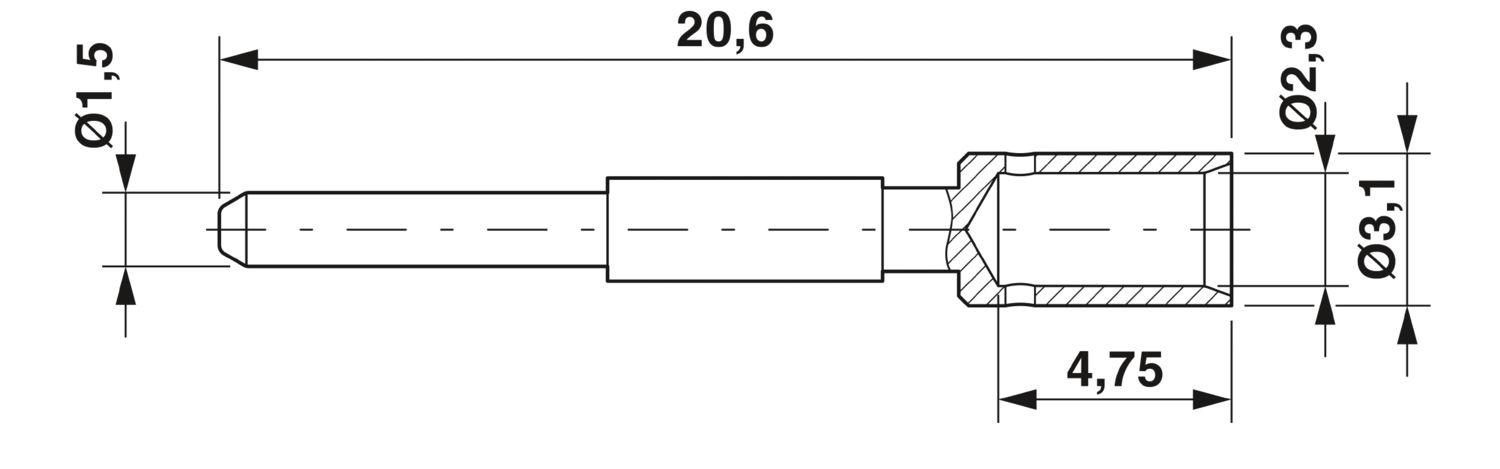

Contact diameter	1.5 mm

Mechanical data
Insertion/withdrawal cycles	≥ 100

Ambient conditions
Ambient temperature (operation)	-40 °C ... 85 °C

Item number	1029388
Packing unit	100 pc
Minimum order quantity	100 pc
Sales key	AF2
Product key	AF2CJB
Catalog page	Page 278 (C-2-2019)
GTIN	4055626530826
Weight per piece (including packing)	0.496 g
Weight per piece (excluding packing)	0.495 g
Customs tariff number	85366990
Country of origin	DE

Compatible products

Mandatory accessories

Accessories

PHOENIX CONTACT Middle East FZ LLC

1201N-1206N, Dubai Science Park Towers - North, P.O. Box 345002, Dubai, United Arab Emirates

Ask a Question 800-7463649 info-me@phoenixcontact.com

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
EF3.0 Climate Change
CO2e kg	0.195 kg CO2e
