VARIOFACE interface module with spring-cage connection, for Yokogawa RTD module AAR145.
Product details
Product type
Interface module
No. of channels
16
Operating mode
100% operating factor
Insulation characteristics: Air clearances and creepage distances
Insulation
Functional insulation
Overvoltage category
II
Pollution degree
2
Operating voltage (DC)
≤ 30 V DC
Current (per branch)
≤ 0.1 A
Air clearances and creepage distances
Rated insulation voltage
50 V
Rated surge voltage
0.5 kV (1.2/50 μs)
Supported controller YOKOGAWA CS3000 CentumVP
Suitable I/O card
AAR145
Connection 1 (control level)
Connection method
Yokogawa, KS compatible
Number of connections
2
Number of positions
50
Note
Usable system cables: Phoenix Contact YUC50, Yokogawa AKB331
Tightening torque
0.5 Nm
Pitch
2.54 mm
Connection 2 (field level)
Connection method
Spring-cage connection
Stripping length
7.5 mm
Number of positions
48
Conductor cross section rigid
0.2 mm² ... 2.5 mm²
Conductor cross section flexible
0.2 mm² ... 1.5 mm²
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve)
0.25 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
Conductor cross section AWG
24 ... 14
Pitch
5.08 mm
Status display present
no

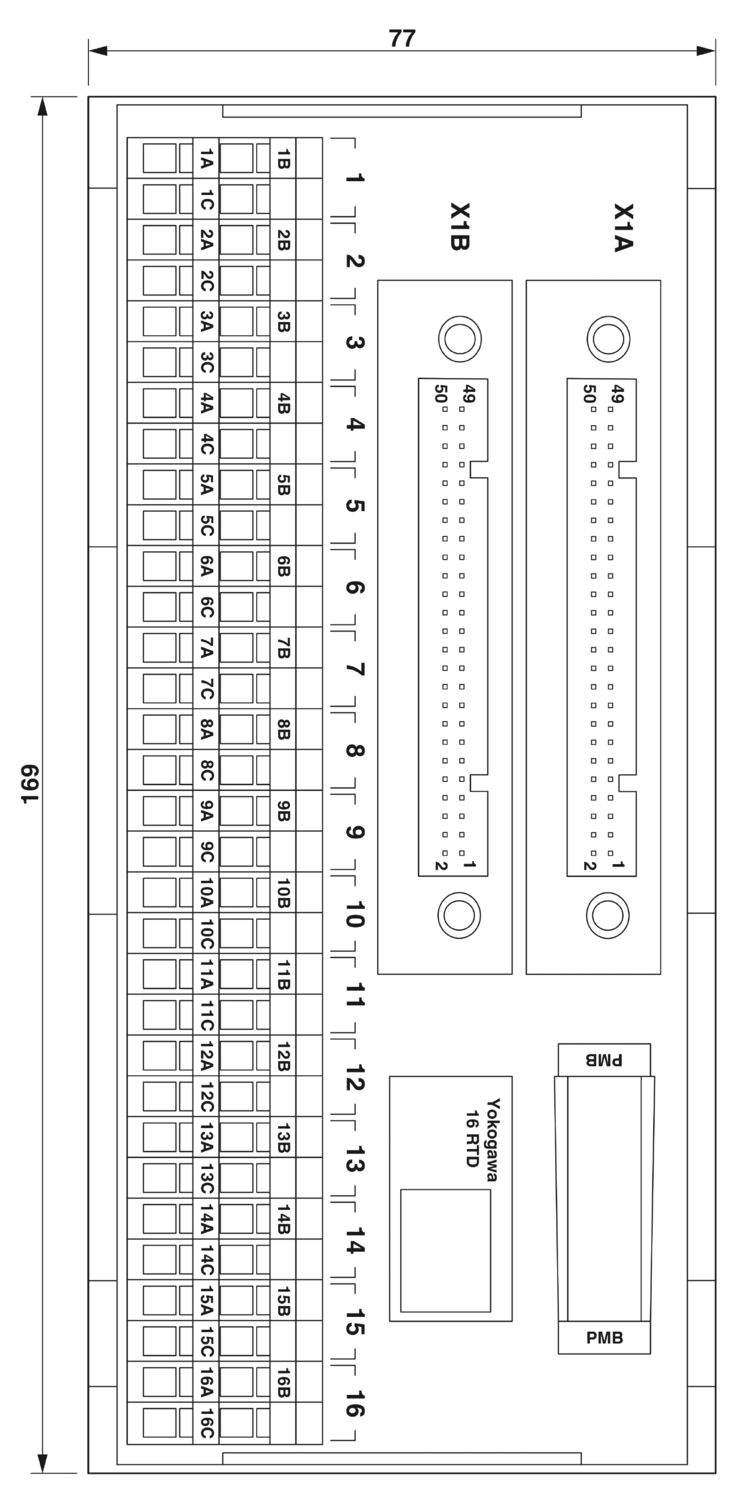

Item dimensions
Width
168.65 mm
Height
77 mm
Depth
51.3 mm
Ambient conditions
Degree of protection (Module)
IP20
Degree of protection (Installation location)
≤ IP54
Ambient temperature (operation)
-20 °C ... 70 °C
Ambient temperature (storage/transport)
-20 °C ... 70 °C
Altitude
≤ 2000 m
UKCA
Certificate
UKCA-compliant
Air clearances and creepage distances
Standards/regulations
EN IEC 60664-1
Mounting type
DIN rail mounting
Mounting position
any
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
